Description

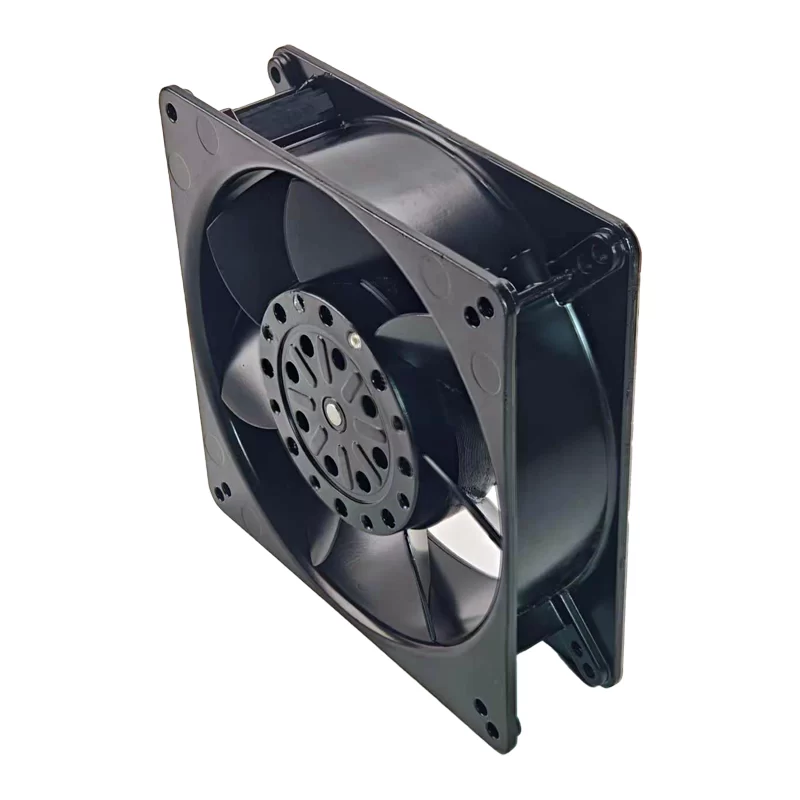

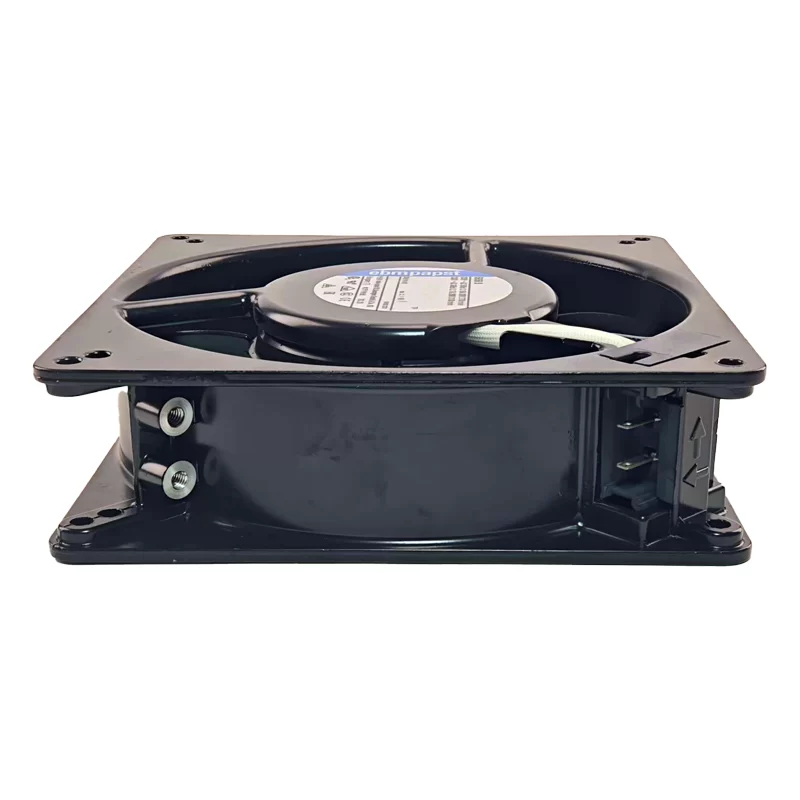

The ebmpapst 5656S is a square-frame AC axial fan with dimensions of 135mm x 135mm x 38mm. It operates on 230 VAC at 50 Hz. This fan draws approximately 0.13A of current and consumes 30W of power, providing an airflow of 138.3 CFM (235 m³/h). It achieves a rotational speed of 2700 RPM and has a noise level of 46 dB(A). Featuring a robust metal frame (die-cast aluminum housing) and a steel or fiberglass impeller, along with ball bearings for a long service life, it is designed for reliable cooling in various electronic systems, control cabinets, and industrial machinery, offering protection against motor overloading.

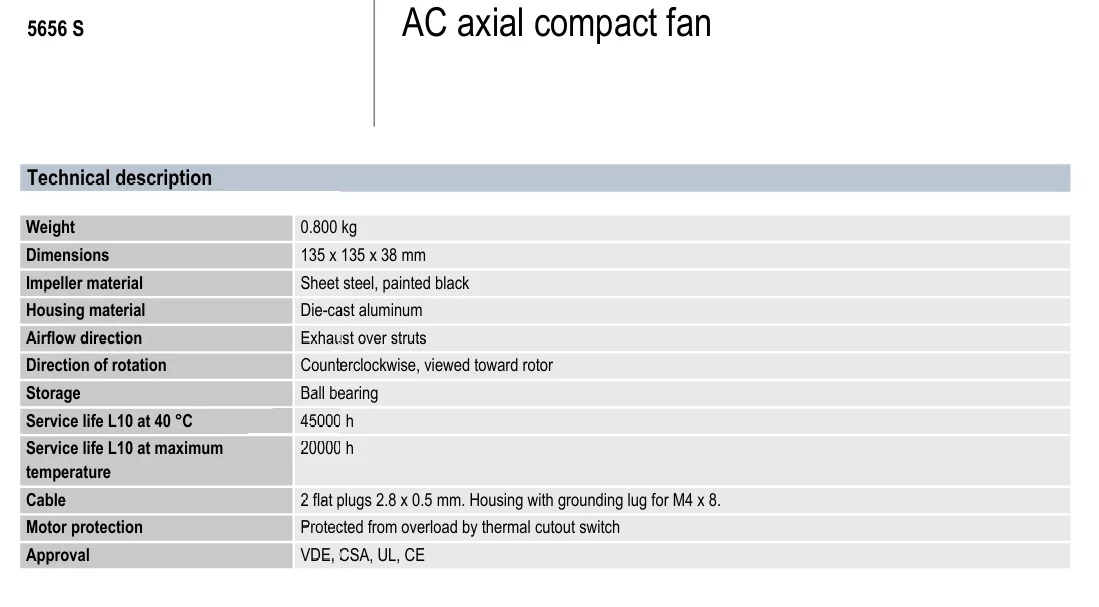

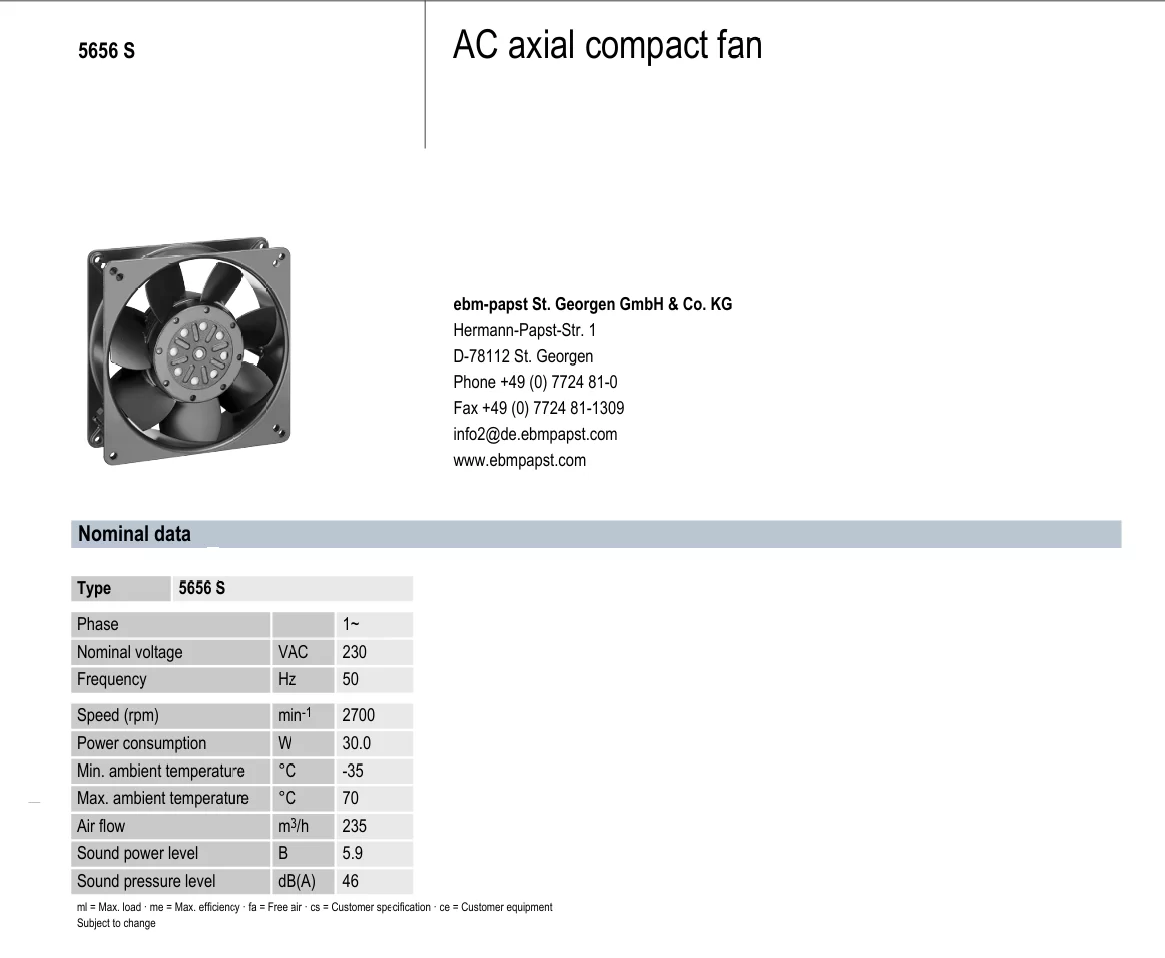

5656S Fan Parameters
Model: 5656S
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 135mm x 135mm x 38mm
Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Current: 0.13A
Power Consumption: 30 W
Speed: 2700 RPM
Airflow: 138.3 CFM (235 m³/h)
Noise Level: 46 dB(A)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Sheet Steel / Fiberglass
Termination: Flat Plug (2-Wire)
Operating Temperature: -35°C to +70°C
Weight: 0.8 kg
Features: Impedance protected against overloading
Application: Control cabinets, electronic enclosures, general industrial cooling, machinery, heat pumps, air conditioners.
