Description

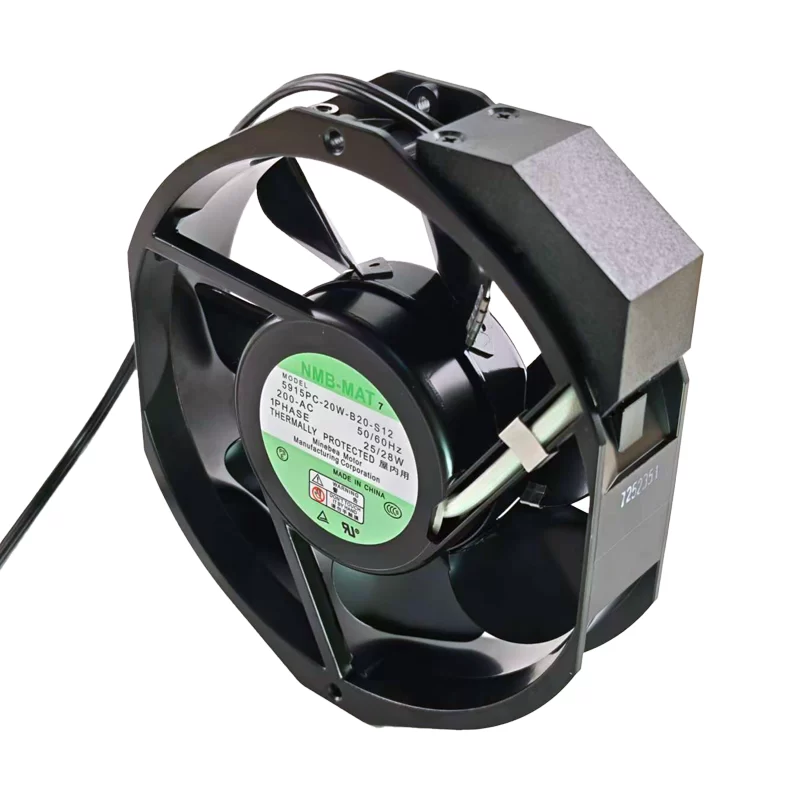

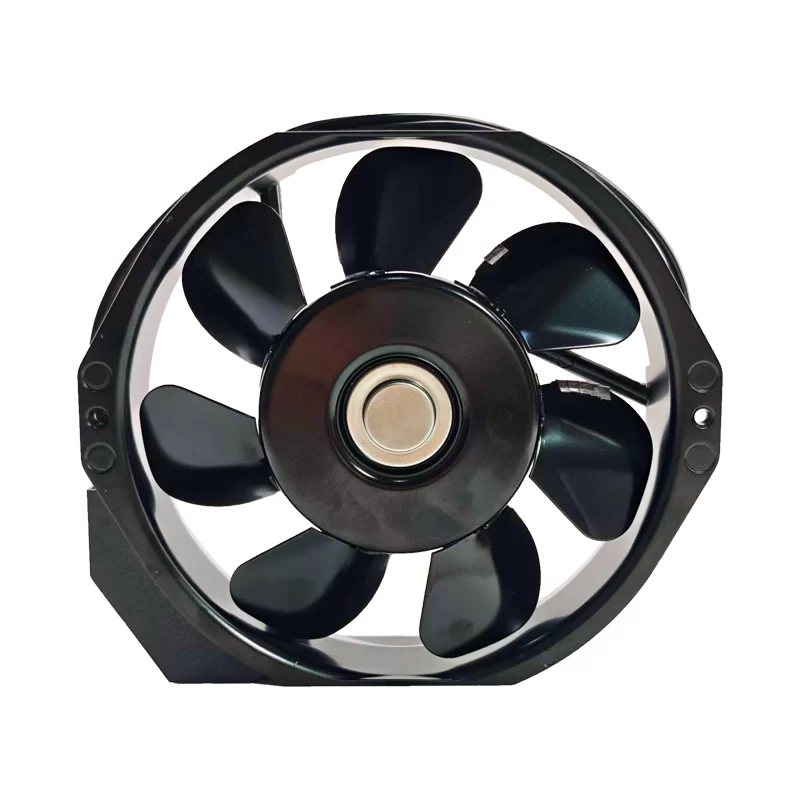

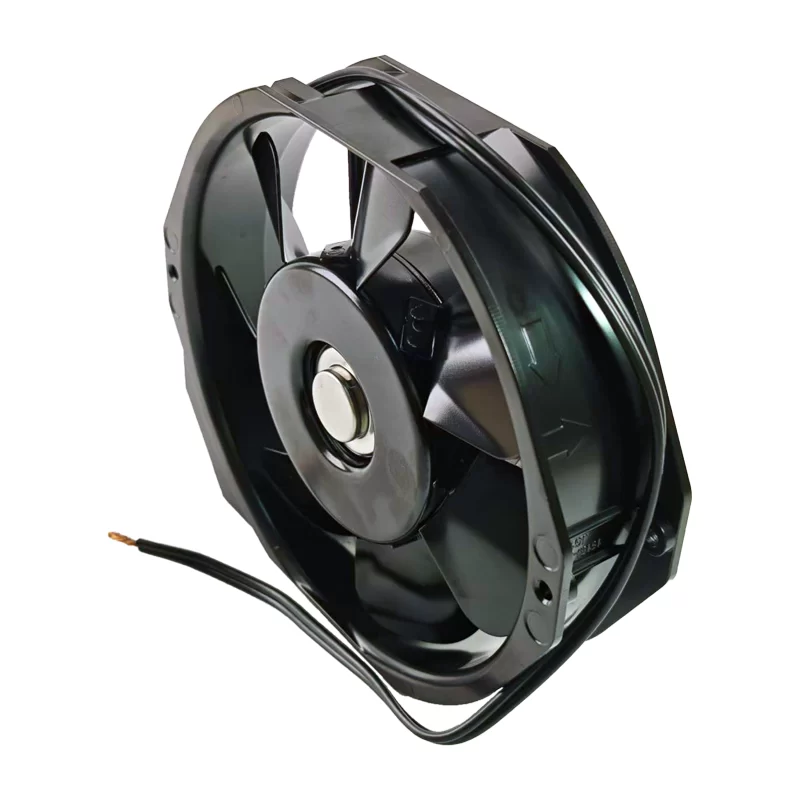

The NMB 5915PC-20W-B20-S12 is a high-performance AC Axial Fan measuring 172 x 150 x 38 mm. It operates on a high single-phase voltage of 200 V AC, within a 200 VAC to 240 VAC range, at 50/60 Hz. This fan delivers a robust airflow between 300 m³/h (176.5 CFM) and 360 m³/h (212 CFM), with a corresponding rotational speed of 2700 RPM to 3200 RPM. It features reliable Ball Bearings, operates with a power input of 25 W to 28 W, and its full-metal construction is suitable for high-volume cooling in industrial environments and power supply ventilation.
5915PC-20W-B20-S12 Fan Parameters
Model: 5915PC-20W-B20-S12
Manufacturer: NMB Technologies Corporation
Type: AC Axial Fan
Dimensions: 172 x 150 x 38 mm
Nominal Voltage: 200 VAC
Nominal Voltage Range: 200 VAC to 240 VAC
Frequency: 50/60 Hz
Speed: 2700 RPM to 3200 RPM
Power Consumption: 25 W to 28 W
Current Draw: 0.12 A to 0.14 A
Airflow: 300 m³/h to 360 m³/h (176.5 CFM to 212 CFM)
Static Pressure: 156.8 Pa to 215 Pa (0.63 inAq to 0.86 inAq)
Noise Level: 53 dB(A) (Typical for series)
Weight: 0.89 kg
Bearing Type: Ball Bearing
Frame Material: Metal
Blade Material: Metal
Termination: Lead Wires
Application
The NMB 5915PC-20W-B20-S12 is designed for heavy-duty, continuous cooling applications requiring a high volume of air. It is commonly used for cooling industrial equipment, network enclosures, large power supplies, and in commercial HVAC systems where its durable metal construction and reliable performance are valued.
