Description

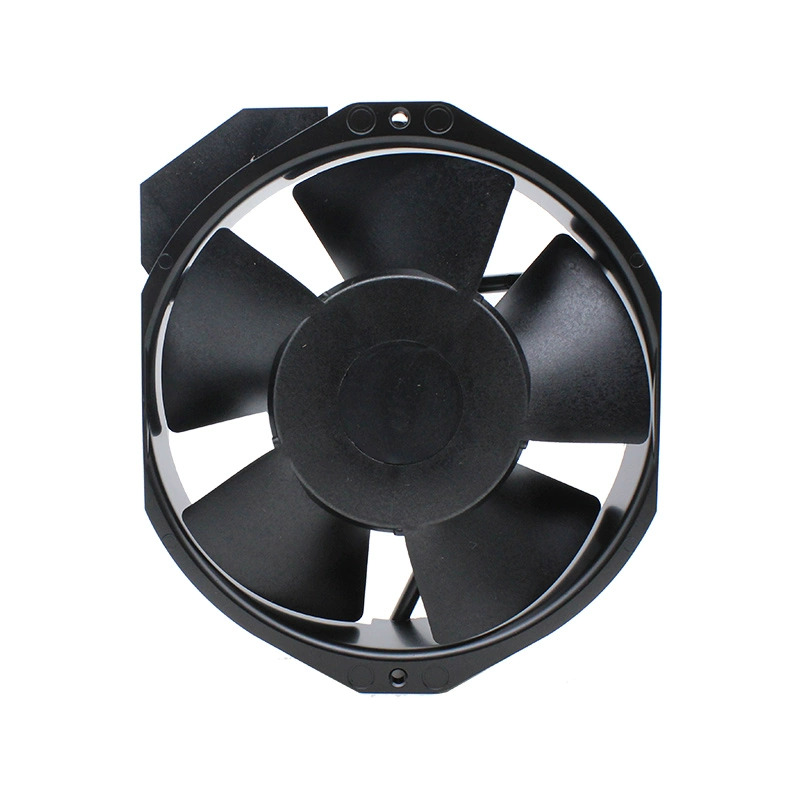

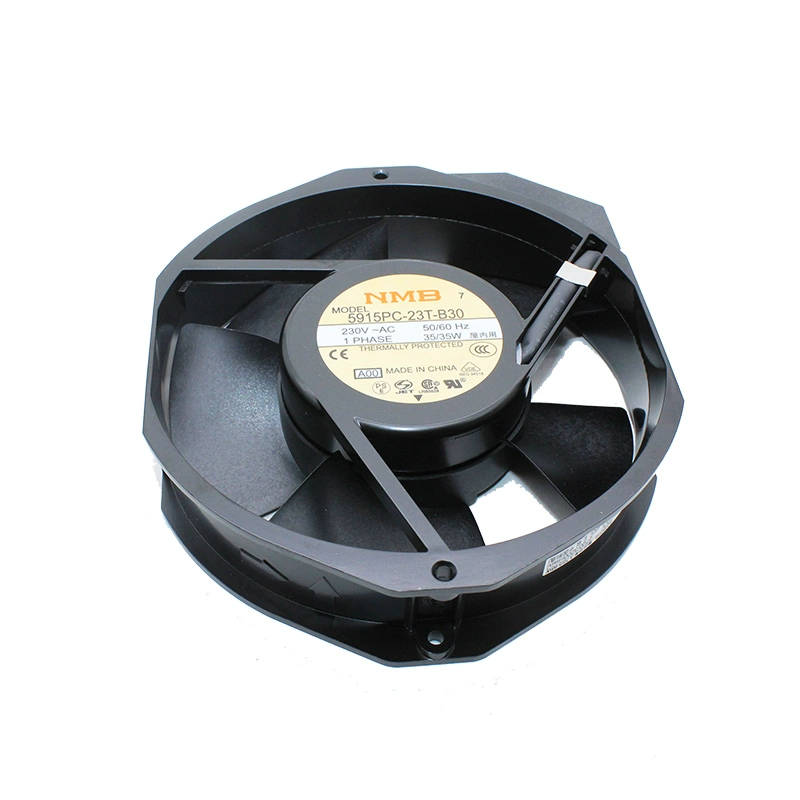

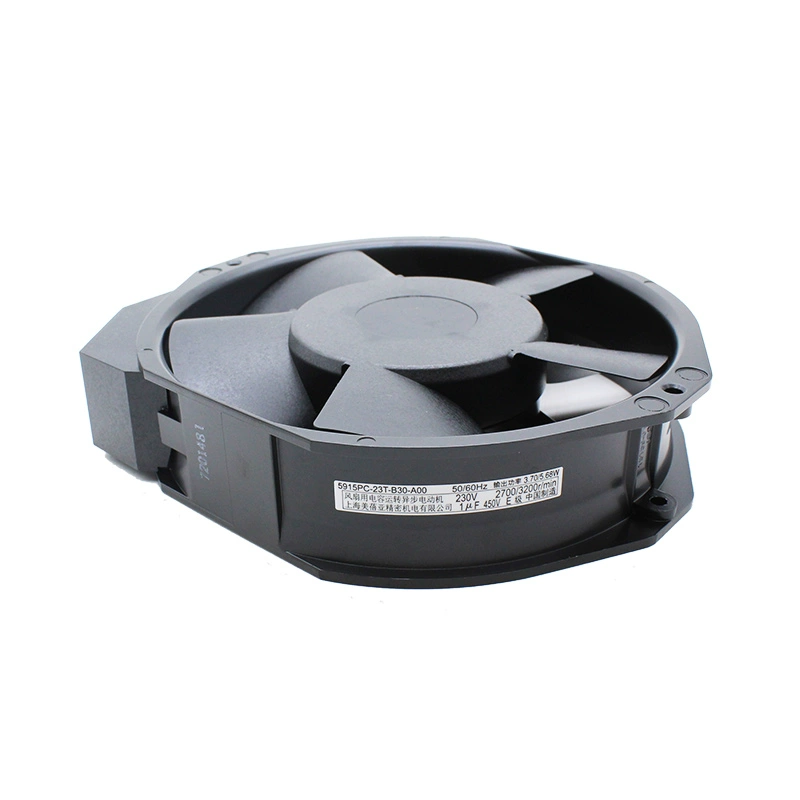

The NMB 5915PC-23T-B30-A00 is an AC Axial Fan with dimensions of 150x172x38mm. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.18A of current and consumes 35.0W of power, delivering 176.5 CFM of airflow at 2700 RPM with a static pressure of 0.629 Inch-H2O. At 60Hz, the current is 0.190A and power is 35.0W, providing 212.0 CFM of airflow at 3200 RPM with a static pressure of 0.865 Inch-H2O. Featuring a durable ball bearing system, an aluminum housing, and a polycarbonate impeller, this fan is a reliable cooling solution for various industrial and electronic equipment.
5915PC-23T-B30-A00 Fan Parameters
Model: 5915PC-23T-B30-A00
Manufacturer: NMB Technologies Corporation
Series: 5915PC
Type: AC Axial Fan
Dimensions: 150 x 172 x 38 mm
Housing Material: Aluminum
Impeller Material: Polycarbonate (Glass Fiber-Containing)
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Current Draw: 0.18 A (50Hz), 0.190 A (60Hz)
Power Input: 35.0 W (50Hz/60Hz)
Fan Speed: 2700 RPM (50Hz), 3200 RPM (60Hz)
Airflow: 176.5 CFM (50Hz), 212.0 CFM (60Hz)
Static Pressure: 0.629 Inch-H2O (50Hz), 0.865 Inch-H2O (60Hz)
Noise Level: 52 dB(A) (50Hz), 56 dB(A) (60Hz)
Bearing Type: Ball Bearing
Motor Structure: Capacitor-Run Induction Motor
Motor Protection: Thermal Protection (B30)
Termination: Lead wires / Quick Connect Terminals
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to +70°C
Weight: 800 g
Approval: CE, CSA, UL, VDE
Application: Industrial machinery, Electronic enclosures, Control cabinets, Power supplies
