Description

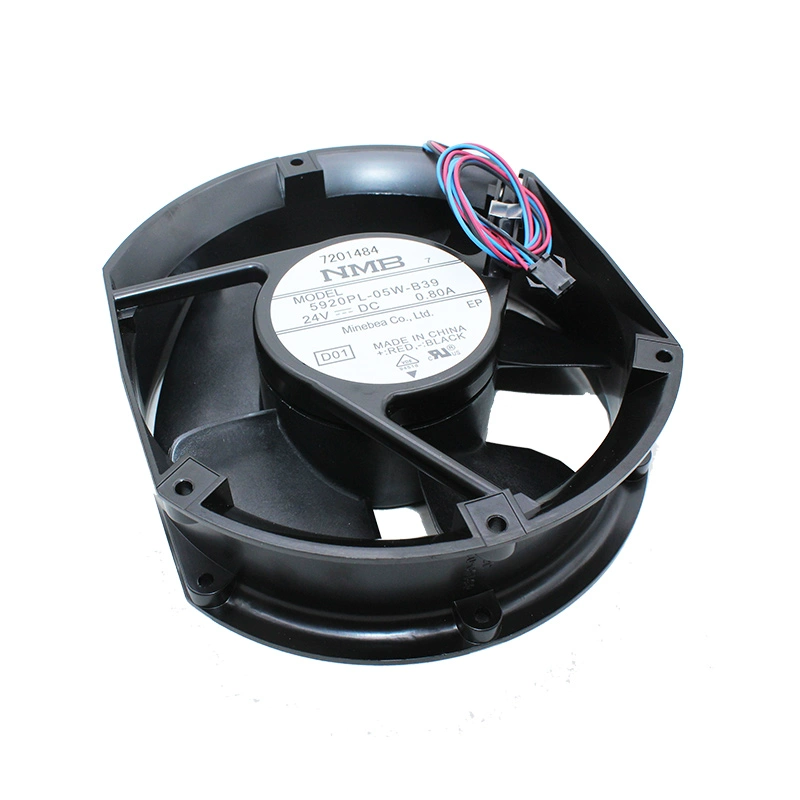

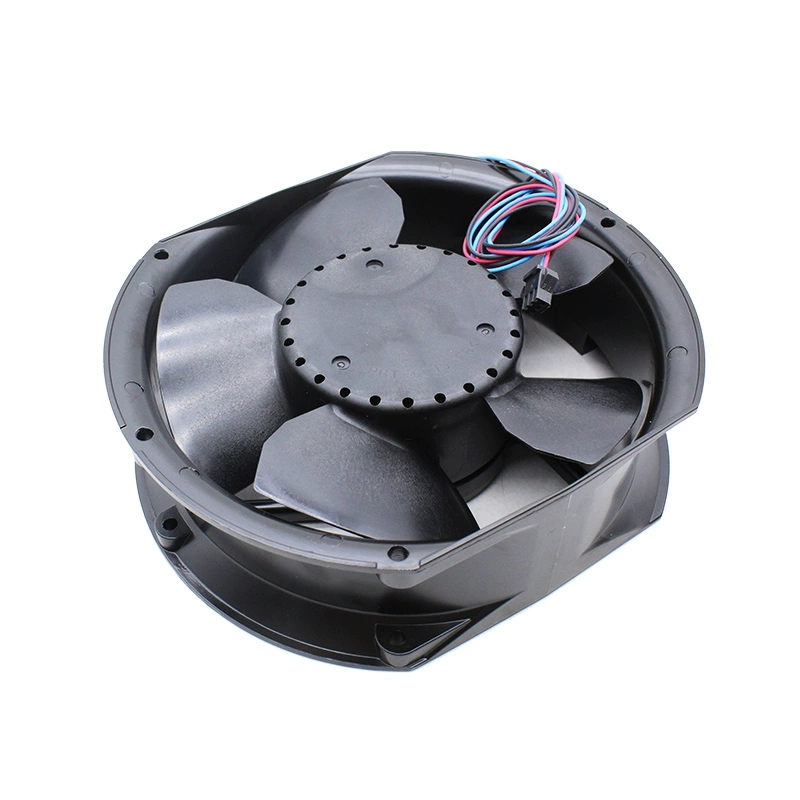

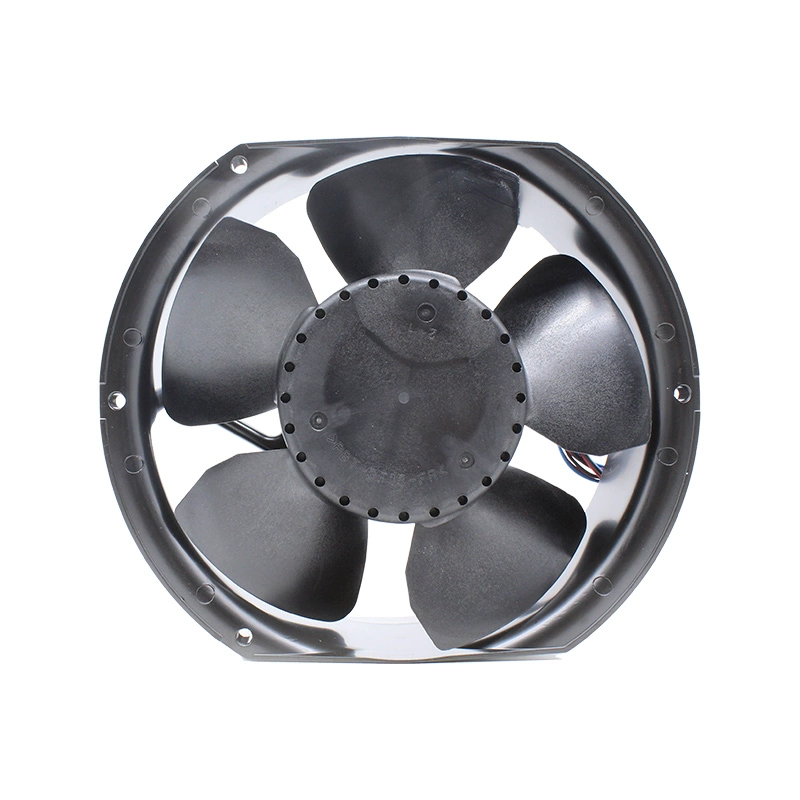

The NMB 5920PL-05W-B39-D01, now specified with a robust 0.80A current, is an even more powerful 24V DC axial cooling fan from NMB Technologies. This fan, measuring 172mm x 150mm x 50.8mm, is engineered for very high-volume airflow applications. It consumes 19.2W to operate at a speed of 3800 RPM, generating a substantial 275.0 CFM of airflow and a high static pressure of 0.90 inch-H2O, making it exceptionally effective for cooling large enclosures, server racks, and demanding industrial equipment. Equipped with durable ball bearings, it boasts an excellent life expectancy of 100,000 hours at 25°C. Its 3-wire configuration includes a locked rotor sensor for reliable monitoring of fan status, ensuring continuous optimal system performance, with a noise level of 61.0 dBA.
Model Number: 5920PL-05W-B39-D01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 30V DC
Rated Current: 0.80A
Rated Power: 19.2W
Speed: 3800 RPM
Airflow: 275.0 CFM / 7.79 m³/min
Static Pressure: 0.90 inch-H2O / 224 Pa
Noise Level: 61.0 dBA
Dimensions: 172mm x 150mm x 50.8mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Plastic
Features: Locked Rotor Sensor, Auto Restart, Polarity Protection
