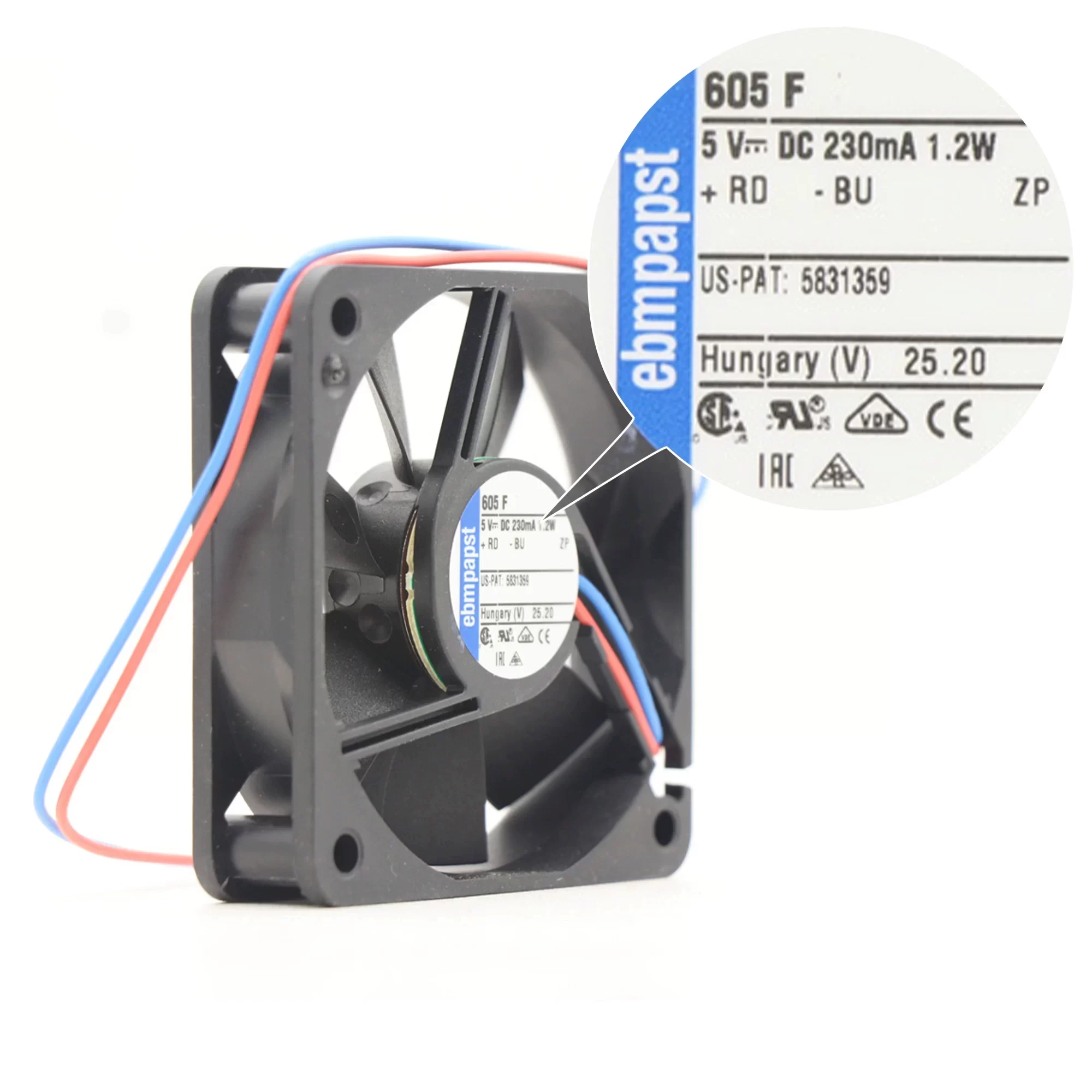

605F ebmpapst 5V DC Axial Fan

Description

The ebmpapst 605F is a 5VDC axial fan with dimensions of 60x60x15mm. Operating within a 4.5-5.2VDC range, it draws 230mA of current and consumes 1.2W of power. This fan delivers an airflow of 29m³/h (17CFM) and operates at a speed of 4000RPM, with a quiet noise level of 27dB(A). Featuring a durable Sintec sleeve bearing and two wire leads, it is constructed with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. It is suitable for reliable operation within an ambient temperature range of -20 to 50°C and has a typical service life of 50,000hours at 20°C.

605F Fan Parameters
Manufacturer: ebmpapst
Model: 605F
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 5 VDC
Operating Voltage Range: 4.5 ~ 5.2 VDC
Current Rating: 230 mA
Power Consumption: 1.2 W
Airflow: 29 m³/h (17 CFM)
Speed: 4000 RPM
Noise Level: 27 dB(A)
Bearing Type: Sintec sleeve bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 50°C
Lifetime @ Temp: 50,000 Hours (at 20°C)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Weight: 0.03 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for compact cooling solutions in electronic devices, small enclosures, and applications where quiet and efficient air circulation at low voltage is required.
