612NHH ebmpapst 12V DC Axial Fan

Description

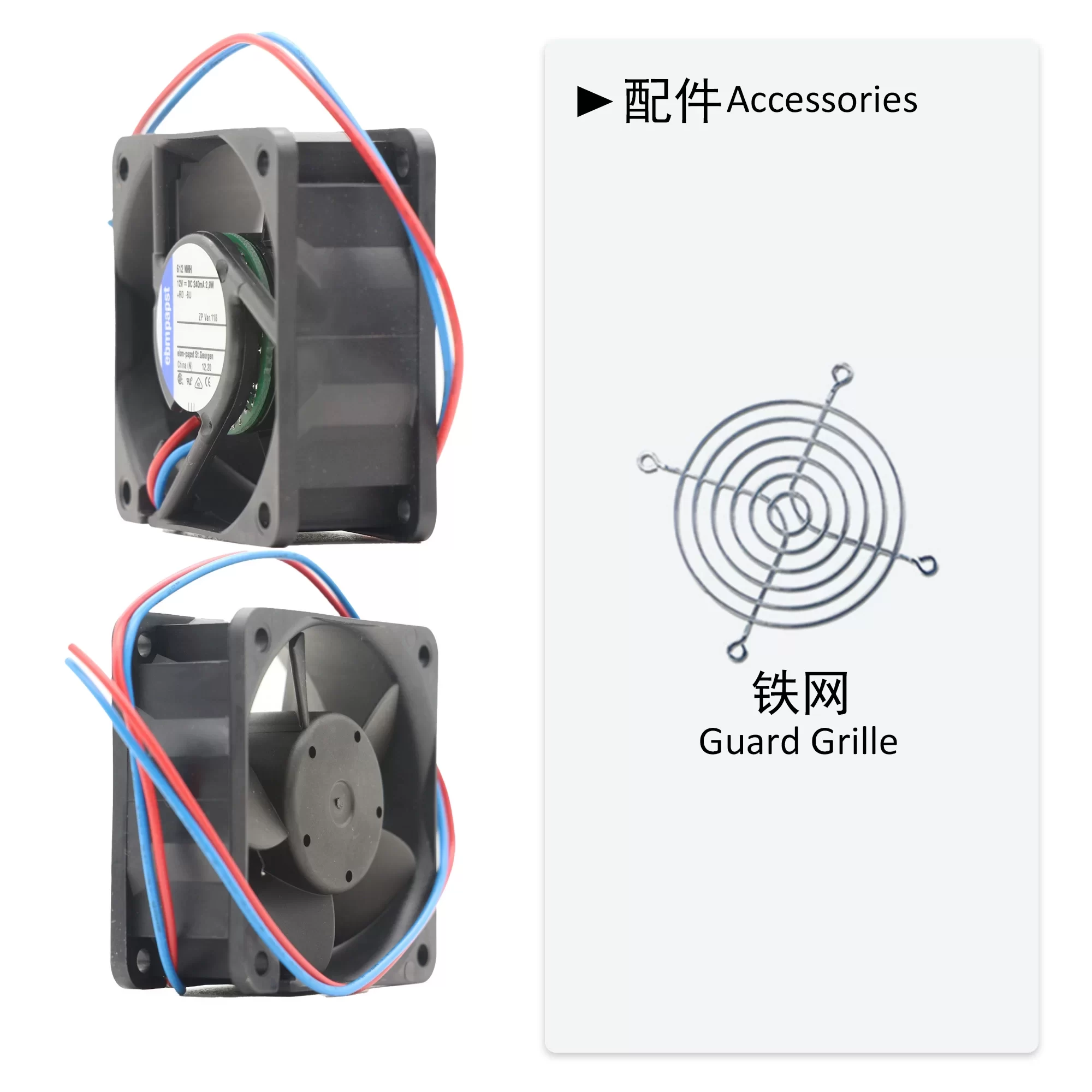

The ebmpapst 612NHH is a DC Axial Fan measuring 60x60x25mm. It operates at a nominal voltage of 12VDC with a wide operating voltage range of 6 to 15VDC. This fan draws 0.24A of current, consumes 2.9W of power, and achieves a high speed of 6800 RPM. It provides an airflow of 46 m³/h (27.1 CFM) with a static pressure of 134 Pa at a noise level of 44 dB(A). It is built with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. The fan features a durable ball bearing system and includes protection against reverse polarity and a blocked rotor. It is a high-performance solution for cooling electronic components in compact equipment and other industrial applications.

612NHH Fan Parameters
Model: 612NHH
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 15 VDC
Current Draw: 0.24 A
Power Input: 2.9 W
Fan Speed: 6800 RPM
Airflow: 46 m³/h (27.1 CFM)
Static Pressure: 134 Pa
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Weight: 0.088 kg
Termination: 2 Wire Leads
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -20 to 75 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling electronic components in compact equipment and industrial applications.
