Description

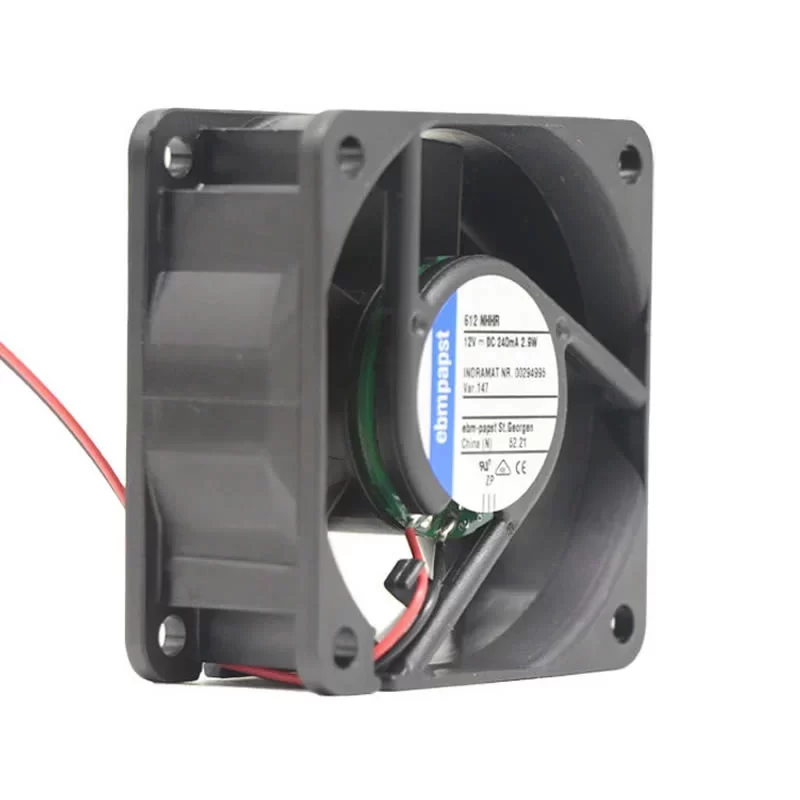

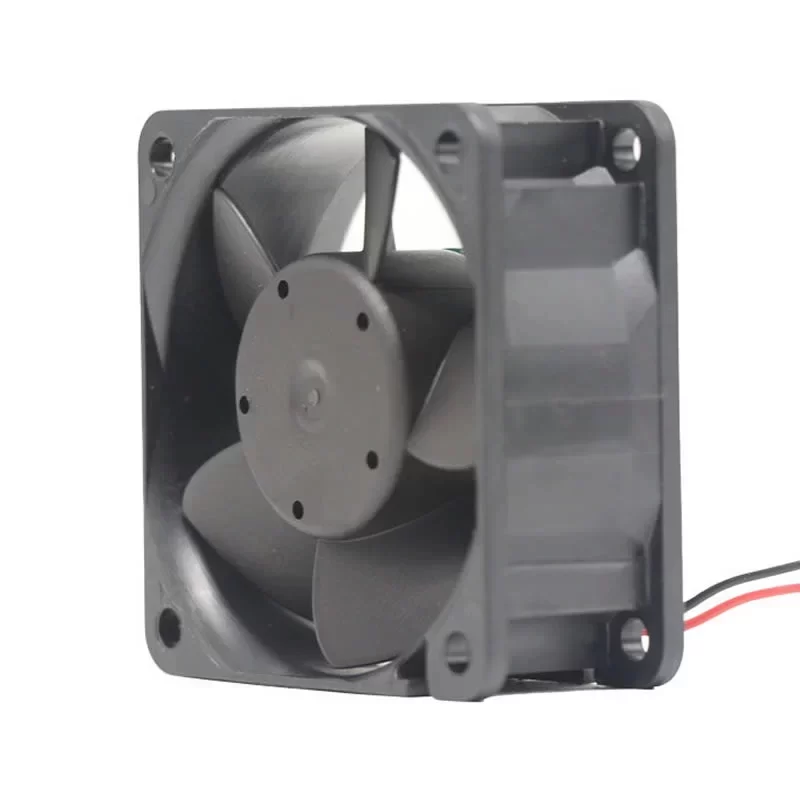

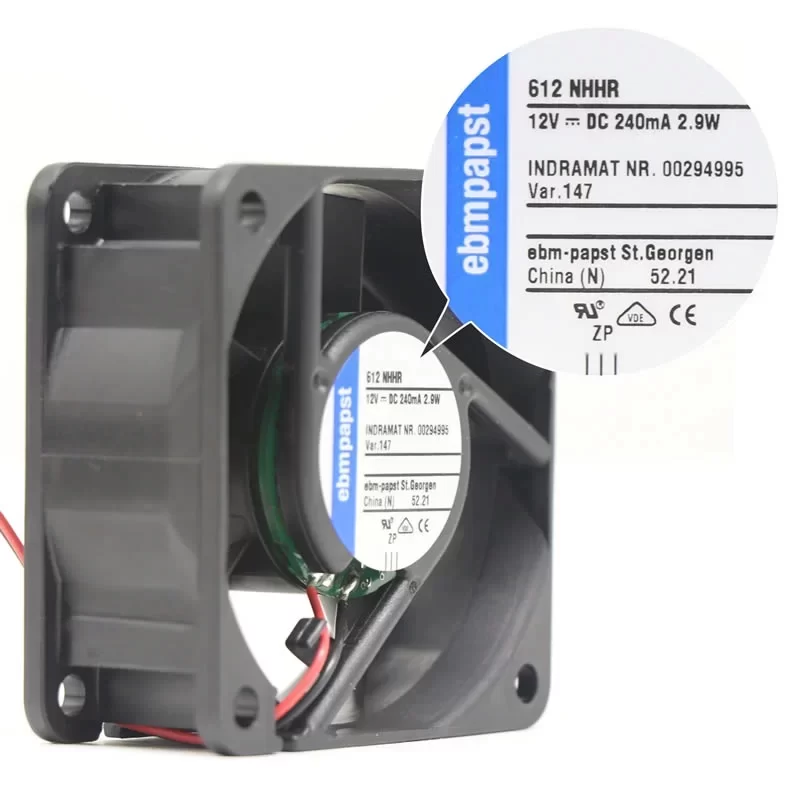

The ebmpapst 612NHHR-147 is a high-performance 12VDC DC Axial Fan with dimensions of 60 x 60 x 25 mm, featuring a glass-fiber reinforced PBT housing and a 54 mm glass-fiber reinforced PA plastic impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters. Driven by a brushless external rotor motor with maintenance-free ball bearings and any-shaft mounting position, this 0.066 kg unit operates at 12 VDC delivering a Max. Power Consumption of 2.9 W and a Max. Current Draw of 0.24 A at a rated speed of 6800 RPM. This High-performance unit achieves a Max. Air Flow of 32.37 CFM (55.0 m³/h / 0.92 m³/min) and a Max. Static Pressure of 14.28 mmH₂O (140.0 Pa / 0.56 inAq). Featuring integrated electronic protection against reverse polarity and blocking, alongside AWG 24 leads, this unit is optimized for industrial VFD systems requiring high-velocity airflow and long-term reliability at the end.
612NHHR-147 Fan Parameters
Model Number: 612NHHR-147
Manufacturer: ebmpapst
Type: DC Axial Fan
Impeller Size: 54 mm
Dimensions: 60 x 60 x 25 mm
Weight: 0.066 kg
Bearing Type: Ball bearing (Any-shaft mounting)
Phase: DC
Nominal Voltage: 12 VDC
Voltage Range: 8.0 – 13.5 VDC
Connection Type: 2-wire (Leads AWG 24, TR 64)
Max. Current Draw: 0.24 A
Max. Power Consumption: 2.9 W
Rated Speed: 6800 RPM
Max. Air Flow: 32.37 CFM (55.0 m³/h / 0.92 m³/min)
Max. Static Pressure: 14.28 mmH₂O (140.0 Pa / 0.56 inAq)
Working Air Flow: 55.0 m³/h
Static Pressure Increase: 140.0 Pa
Sound Power Level: 5.3 Bel(A)
Sound Pressure Level: 41.0 dB(A)
Motor Protection: Electronic blocking / Reverse polarity protection
Service Life (L10): 70,000 h (40 °C) / 35,000 h (70 °C)
Life Expectancy (L10Δ): 142,500 h (40 °C, IPC 9591)
Insulation Class: Class E
Degree of Protection: IP20
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Intake over struts
Ambient Temperature (Max.): 70 °C
Min. Operating Temperature: -20 °C
Standard Compliance: CE; VDE; UL; CSA; CCC
Application
The ebmpapst 612NHHR-147 axial fan is the primary cooling component for industrial frequency converters and high-density power modules requiring high-speed airflow and optimized static pressure in 12V DC environments.
