Description

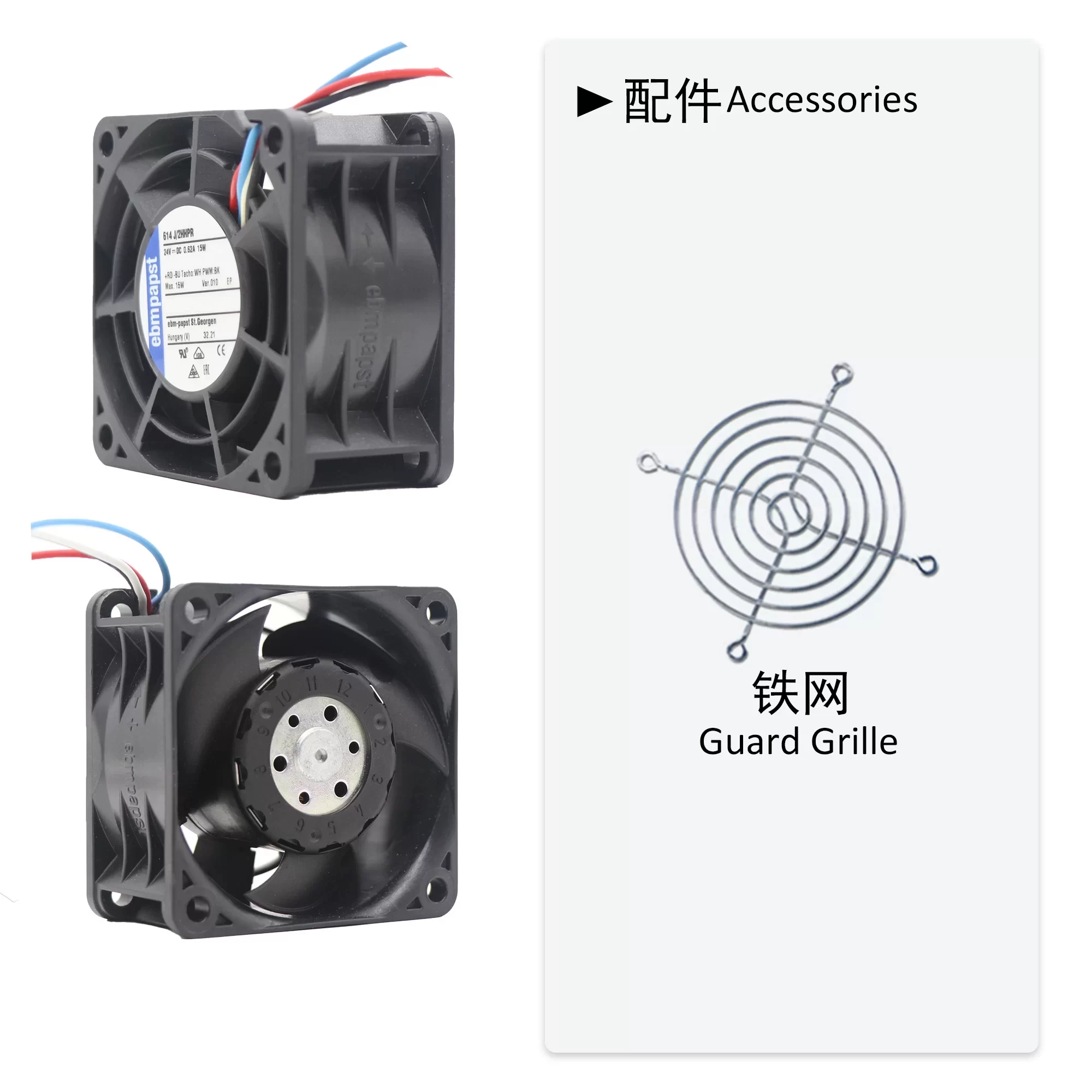

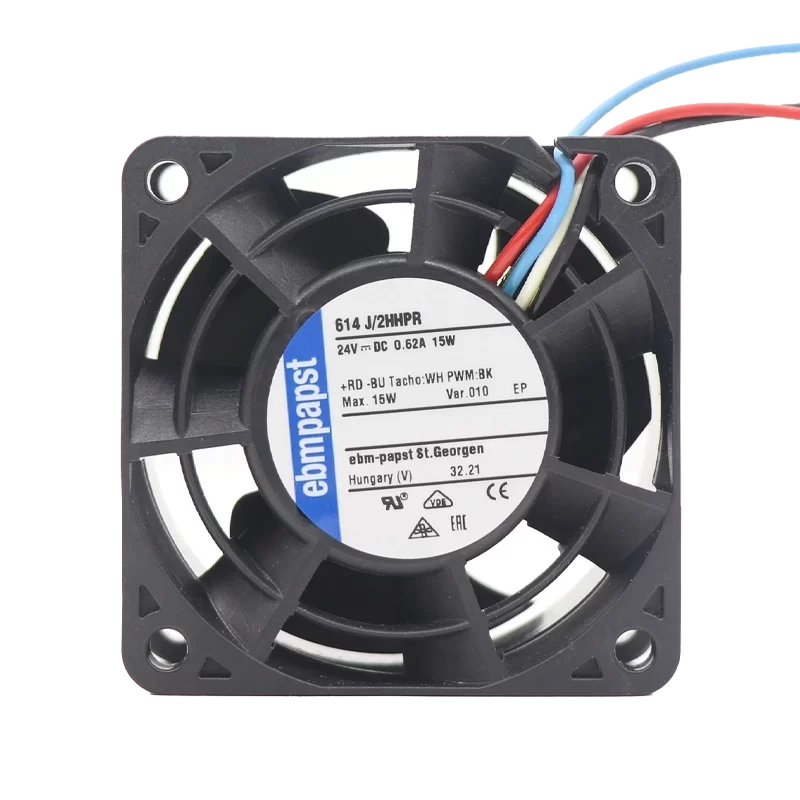

The ebmpapst 614J/2HHPR-010 is a 24VDC axial fan with dimensions of 60x60x32mm. Operating within a 10-27.6VDC range, it draws 0.59A of current and consumes 14.2W of power. This fan delivers a high airflow of 83m³/h (49CFM) and a significant static pressure of 570Pa. It operates at an exceptionally high speed of 15000RPM, with a noise level of 62dB(A). Featuring durable ball bearings and four wire leads for PWM control and Tacho output, it is constructed with a plastic housing and a plastic impeller. It is suitable for reliable operation within an ambient temperature range of -40 to 78°C and has a typical service life of 60,000hours at 40°C. This fan is highly suitable for demanding high-performance cooling in compact electronic systems, servers, telecommunications equipment, and industrial controls.
614J/2HHPR-010 Fan Parameters
Manufacturer: ebmpapst
Model: 614J/2HHPR-010
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 ~ 27.6 VDC
Current Rating: 0.59 A
Power Consumption: 14.2 W
Airflow: 83 m³/h (49 CFM)
Static Pressure: 570 Pa
Speed: 15000 RPM
Noise Level: 62 dB(A)
Bearing Type: Ball Bearing
Termination: Four Wire Leads (PWM, Tacho)
Operating Temperature: -40 ~ 78°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Housing Material: Plastic
Impeller Material: Plastic
Weight: 0.1 kg
Approval Agency: CE, UL, VDE
Application: This ebmpapst DC axial fan is highly suitable for demanding high-performance cooling applications in compact electronic systems, servers, telecommunications equipment, and industrial controls where high airflow, significant static pressure, precise speed control, and monitoring are critical.
