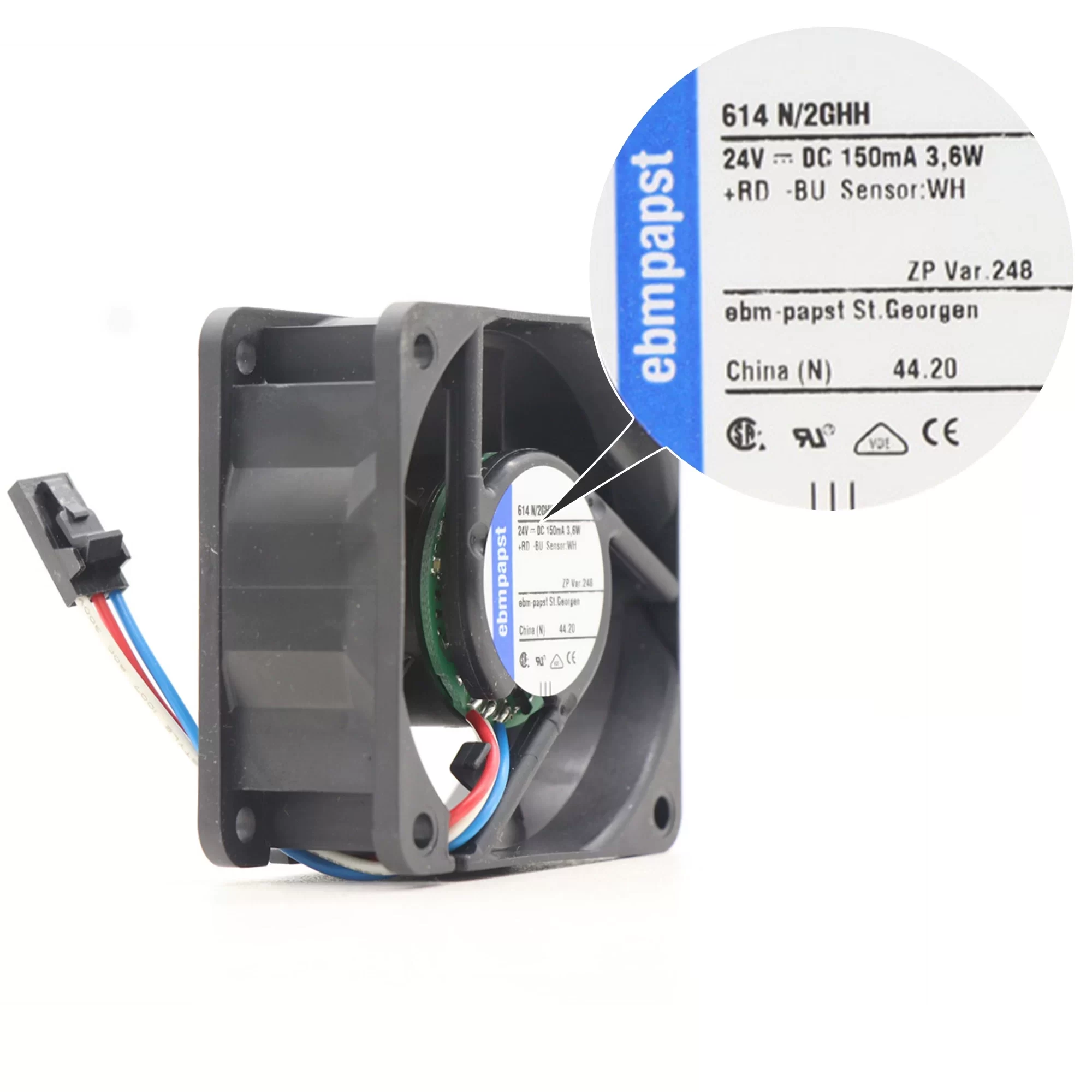

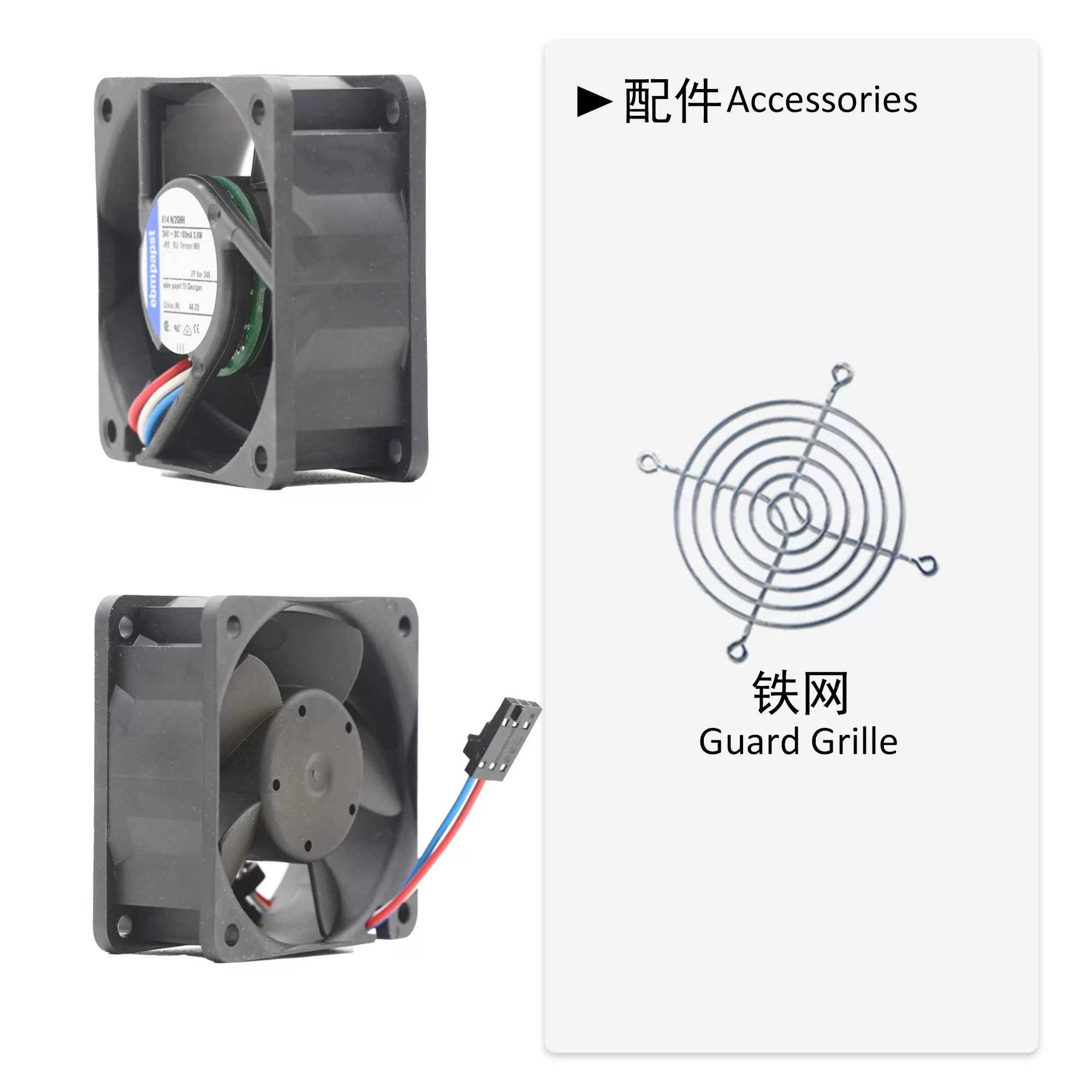

614N/2GHH-248 ebmpapst 24V DC Axial Fan

Description

The ebmpapst 614N/2GHH-248 is a compact 24V DC axial fan with dimensions of 60x60x25mm, designed for high-performance cooling. Operating at 24VDC within an 18-26V range, it draws 150mA of current and consumes 3.6W of power. This fan delivers an airflow of 34m³/h (20CFM) and a static pressure of 33Pa at a high speed of 6850RPM, with a noise level of 42dB(A). Featuring a durable Sintec (sleeve) bearing and 3 wire leads, it provides a speed signal output for monitoring. Built with a robust plastic frame and impeller, it ensures reliable performance within an ambient temperature range of -20 to 70°C, and is certified by CE, EAC, UL, VDE, and CSA.

614N/2GHH-248 Fan Parameters
Manufacturer: ebmpapst
Model: 614N/2GHH-248
Fan Type: Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 26 VDC
Current Rating: 150 mA
Power Consumption: 3.6 W
Airflow: 34 m³/h (20 CFM)
Static Pressure: 33 Pa
Speed: 6850 RPM
Noise Level: 42 dB(A)
Bearing Type: Sintec (Sleeve Bearing)
Termination: 3 Wire Leads
Fan Features: Speed Signal (Tachometer Output)
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 80,000 Hours (at 20°C)
Frame Material: Plastic (PBT, fiberglass reinforced)
Blade Material: Plastic (PA, nylon, fiberglass reinforced)
IP Rating: IP20
Weight: 0.066 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, control cabinets, and compact systems requiring high airflow, static pressure, and speed monitoring.
