Description

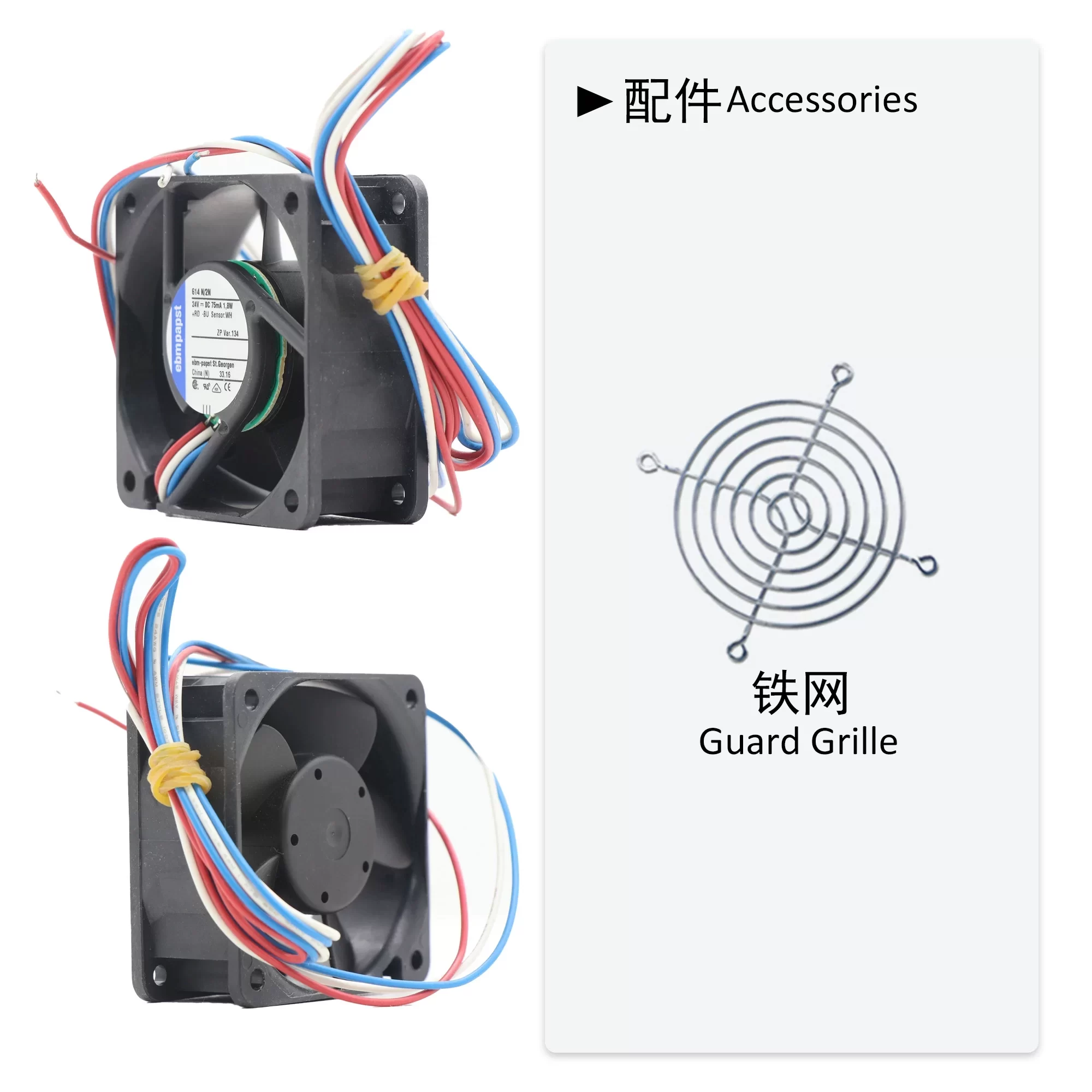

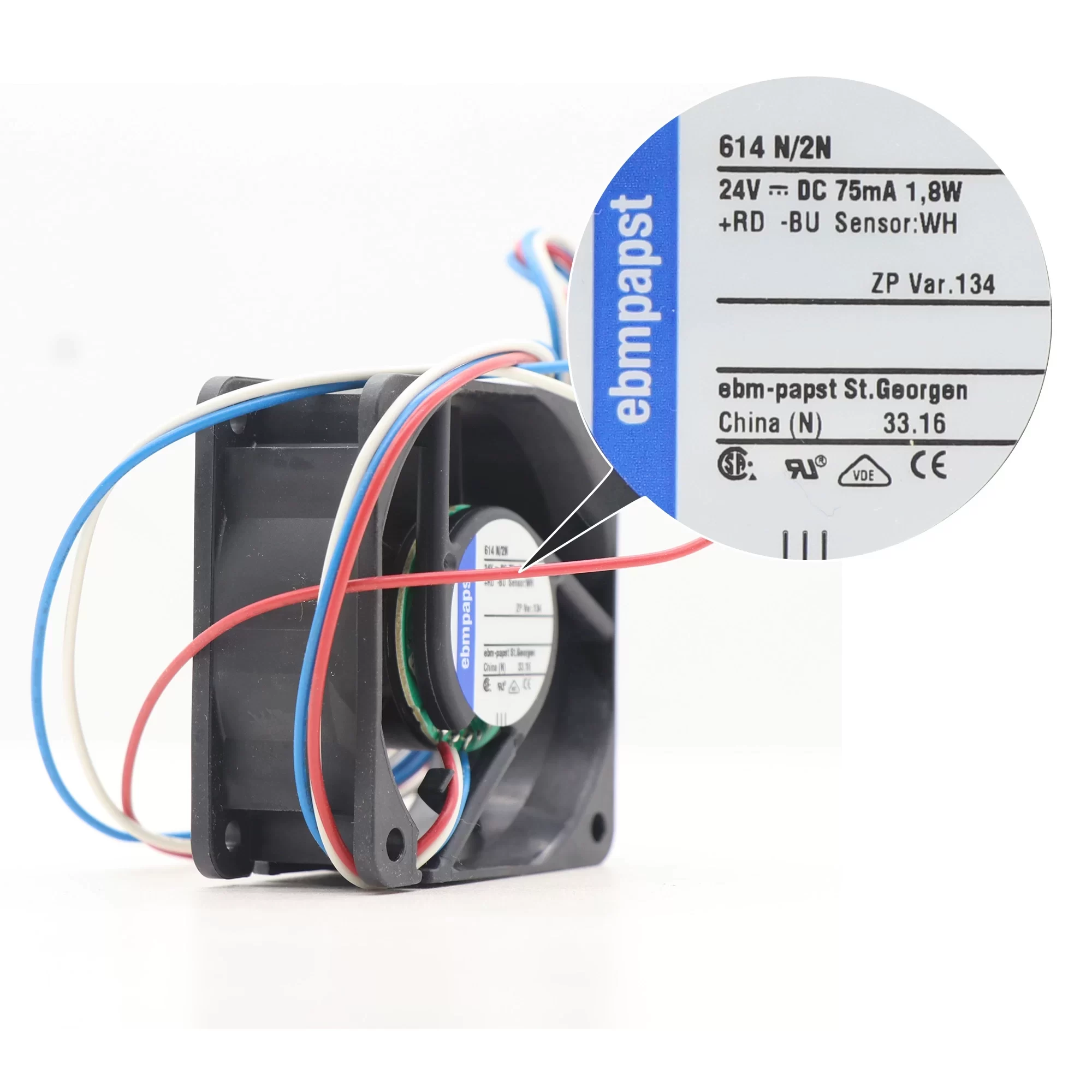

The ebmpapst 614N/2N-134 is a 24VDC axial fan with dimensions of 60x60x25mm. Operating within a 16-28VDC range, it draws 0.075A of current and consumes 1.8W of power. This fan delivers an airflow of 40m³/h (24CFM) and a static pressure of 76Pa. It operates at a speed of 5100RPM, with a noise level of 35dB(A). Featuring durable ball bearings and 3 wire leads, it is constructed with a glass-fiber reinforced PBT plastic frame and a glass-fiber reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 70,000hours at 40°C.
614N/2N-134 Fan Parameters
Manufacturer: ebmpapst
Model: 614N/2N-134
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 28 VDC
Current Rating: 0.075 A
Power Consumption: 1.8 W
Airflow: 40 m³/h (24 CFM)
Static Pressure: 76 Pa
Speed: 5100 RPM
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 70,000 Hours (at 40°C)
Frame Material: Plastic (PBT glass-fiber reinforced)
Blade Material: Plastic (PA glass-fiber reinforced)
IP Rating: IP20
Weight: 0.06 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for compact cooling solutions in electronic devices, small enclosures, medical equipment, and other applications where quiet and efficient air circulation is needed.
