Description

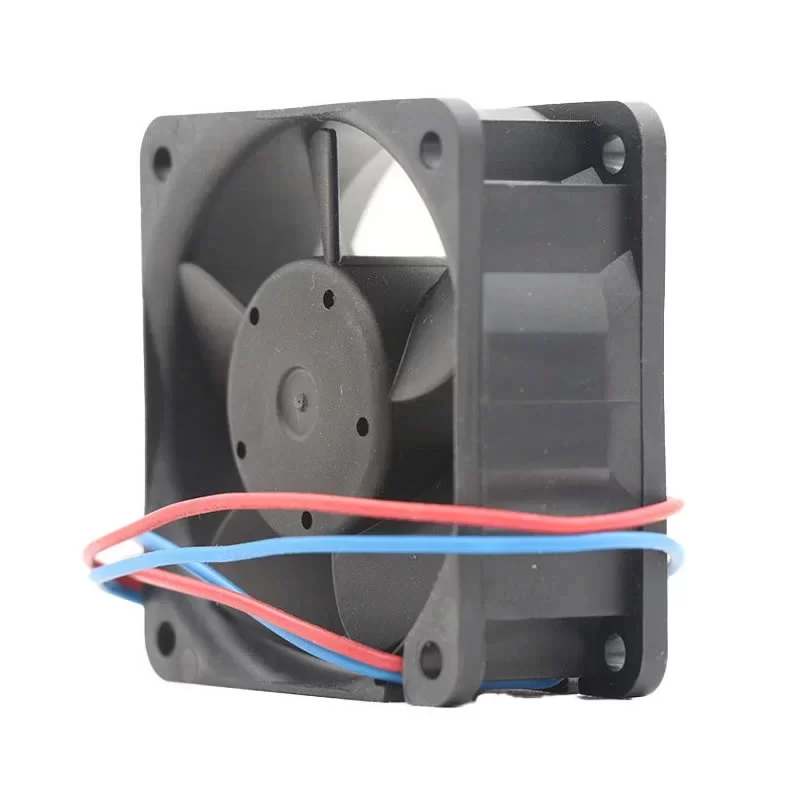

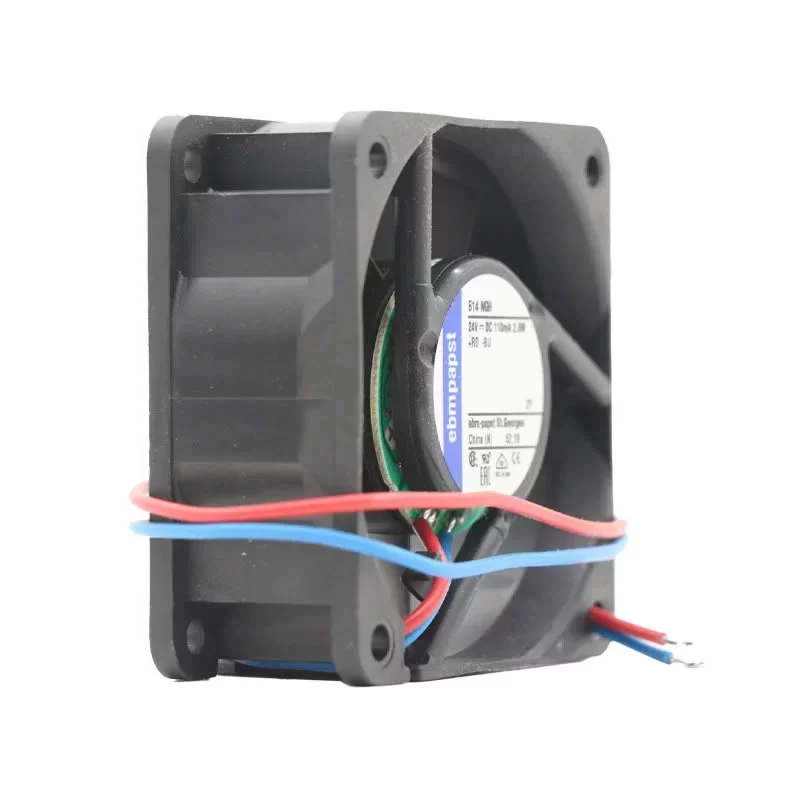

The ebmpapst 614NGH is a high-performance 24 VDC DC Axial Fan with dimensions of 60 x 60 x 25 mm, specifically engineered for demanding thermal management in industrial frequency converters and electrical control cabinets. Driven by a robust brushless DC motor with integrated electronic protection, this unit provides a precise power consumption of 2.6 W and a nominal current draw of 110 mA at 24 VDC. Operating at a rated speed of 5100 RPM, it delivers a powerful airflow of 46 m³/h for efficient heat extraction. Constructed with a durable glass-fiber reinforced PBT plastic housing and a 5-blade glass-fiber reinforced PA plastic impeller featuring the proprietary Sintec sleeve bearing system, this 66 g unit provides a dependable air-moving solution with a noise level of 35 dB(A) and IP20 protection, ensuring maximum cooling performance and long-term mechanical stability for high-power inverters, variable frequency drives (VFD), and integrated electrical switchgear systems at the end.
614NGH Fan Parameters
Model Number: 614NGH
Manufacturer: ebmpapst
Type: DC Axial Fan
Impeller Size: 60 mm
Dimensions: 60.0 x 60.0 x 25.0 mm
Weight: 66 g
Bearing Type: Sintec sleeve bearing
Nominal Voltage: 24 VDC
Voltage Range: 18.0 – 26.0 VDC
Nominal Power Consumption: 2.6 W
Nominal Current Draw: 110 mA
Rated Speed: 5100 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Working Air Flow: 46 m³/h
Static Pressure Increase: 48 Pa
Motor Protection: Locked-rotor and reverse polarity protection
Insulation Class: Class E
Electrical Hookup: 2 lead wires (Red +, Blue -)
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts (Direction “V”)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operation Mode: S1 (Continuous operation)
Sound Power Level: 5.1 Bel
Sound Pressure Level: 35 dB(A)
Service Life (L10): 70,000 h (at 40 °C) / 35,000 h (at 70 °C)
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +85 °C
Degree of Protection: IP20
Standard Compliance: EN 60335-1; CE
Approval Agency: VDE; CSA; UL; CCC
Application
The ebmpapst 614NGH DC fan is primarily utilized in industrial frequency converters, power inverters, and electrical control cabinet heat dissipation systems for efficient exhaust and cooling.
