Description

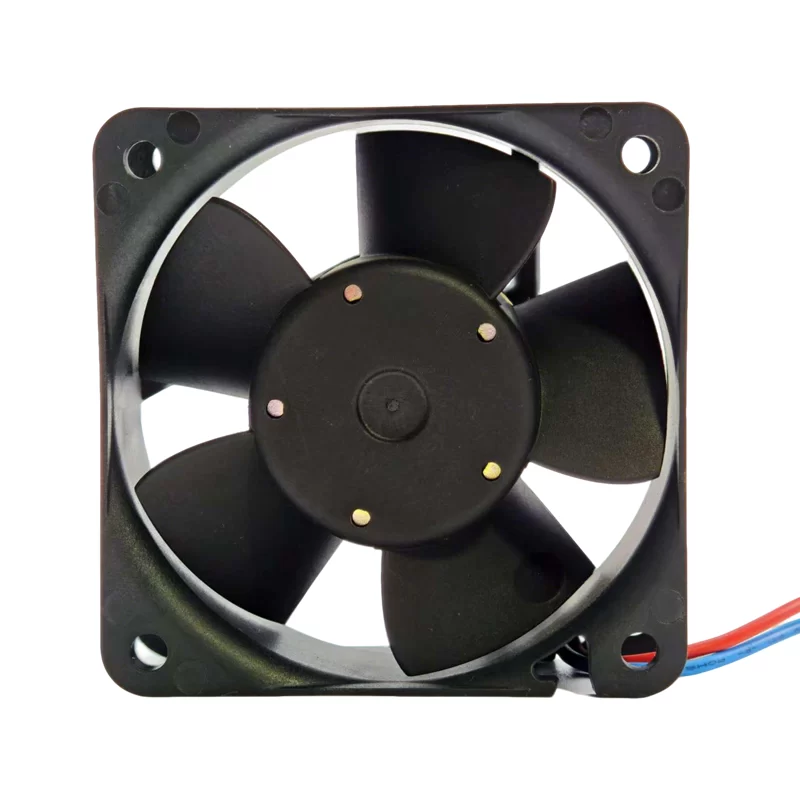

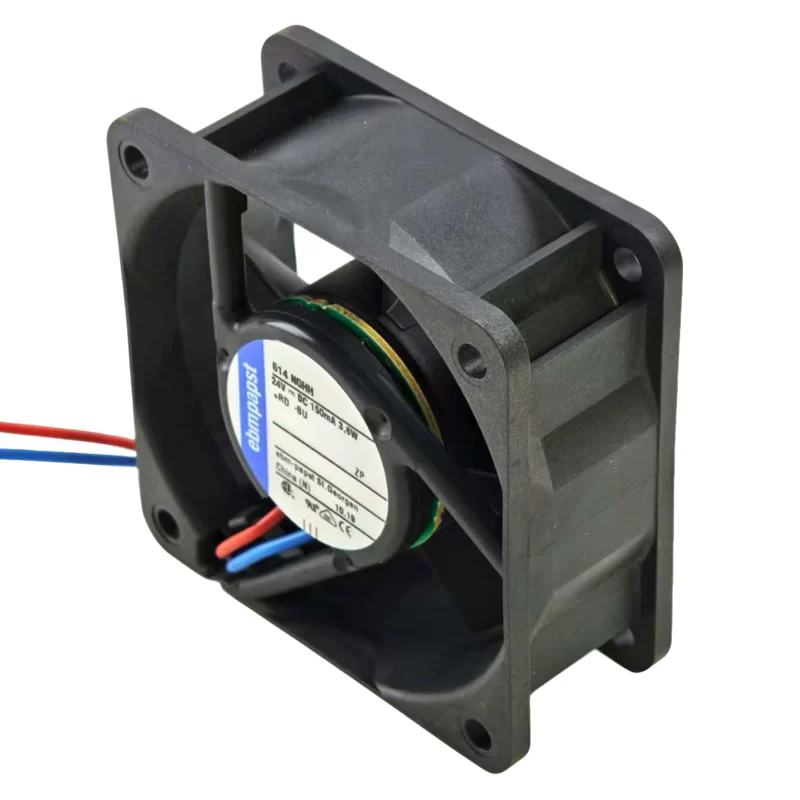

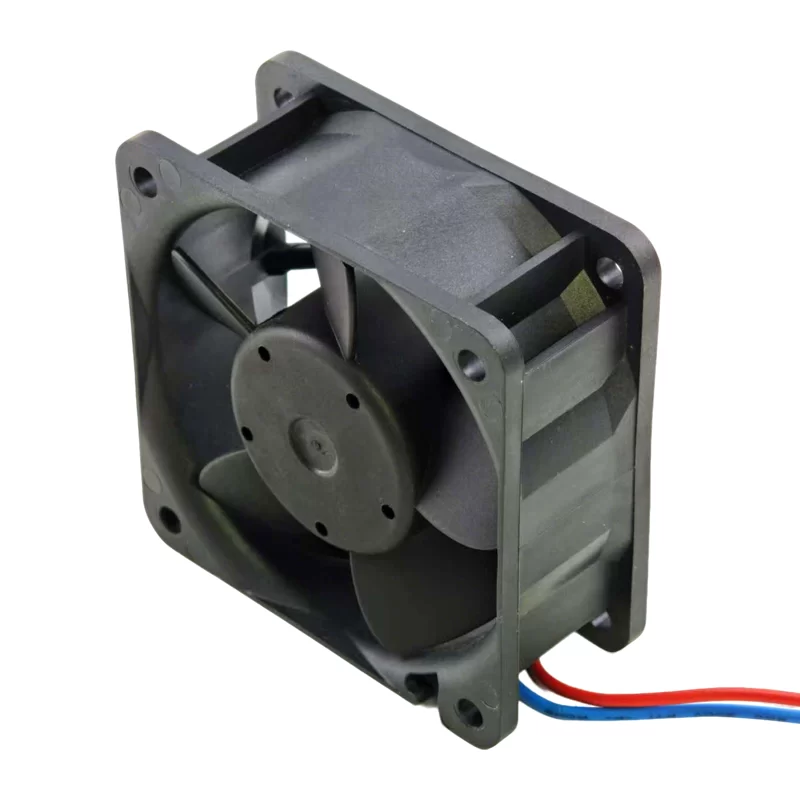

The ebmpapst 614NGHH is a DC axial fan with dimensions of 60 x 60 x 25 mm. It operates on a rated voltage of 24V DC within a range of 12-28V, drawing 150 mA of current and consuming 3.6 W of power. The fan delivers an airflow of 54 m³/h (31.8CFM) and a static pressure of 134 Pa (0.54inch−H2O) at a speed of 6850 RPM. It operates at a noise level of 43 dB(A) and features a sleeve bearing. The housing and impeller are constructed from plastic, and it weighs 0.066 kg.
614NGHH Fan Parameters
Manufacturer: ebmpapst
Model: 614NGHH
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 12-28 V
Current Rating: 150 mA
Power Consumption: 3.6 W
Airflow: 54 m³/h
Static Pressure: 134 Pa
Speed: 6850 RPM
Noise Level: 43 dB(A)
Weight: 0.066 kg
Bearing Type: Sleeve bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C to 70 °C
Service Life: L10 at TU = 40 °C 60000 h, L10 at TU max. 30000 h
Approval: CE, UL, VDE, CSA
Application
The 614NGHH fan is suitable for applications that require reliable and effective cooling in a compact size, such as in medical equipment, telecommunications devices, and industrial electronics.
