614NGN ebmpapst 24V inverter fan

Description

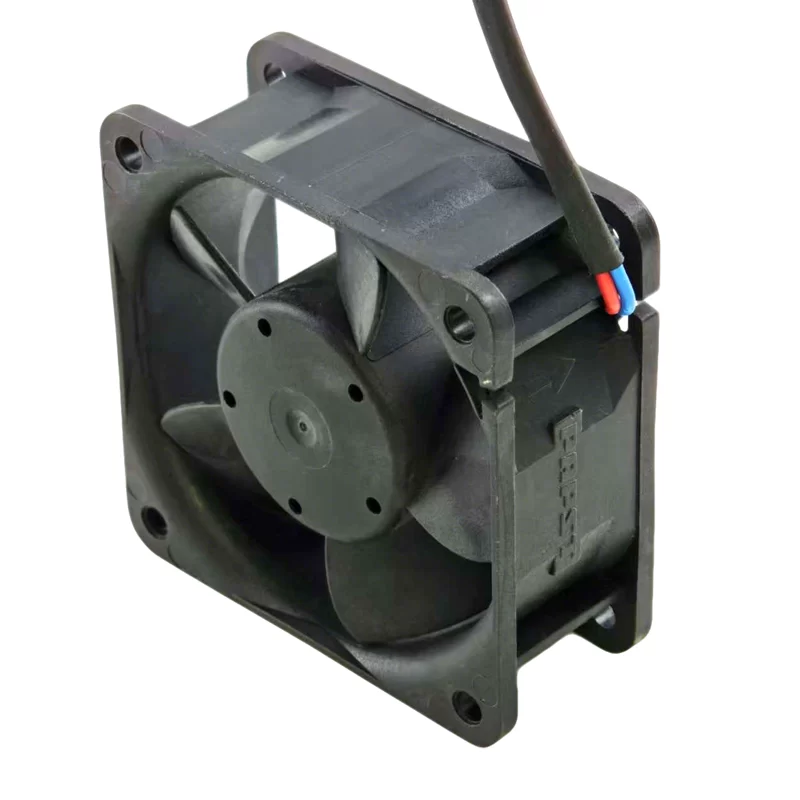

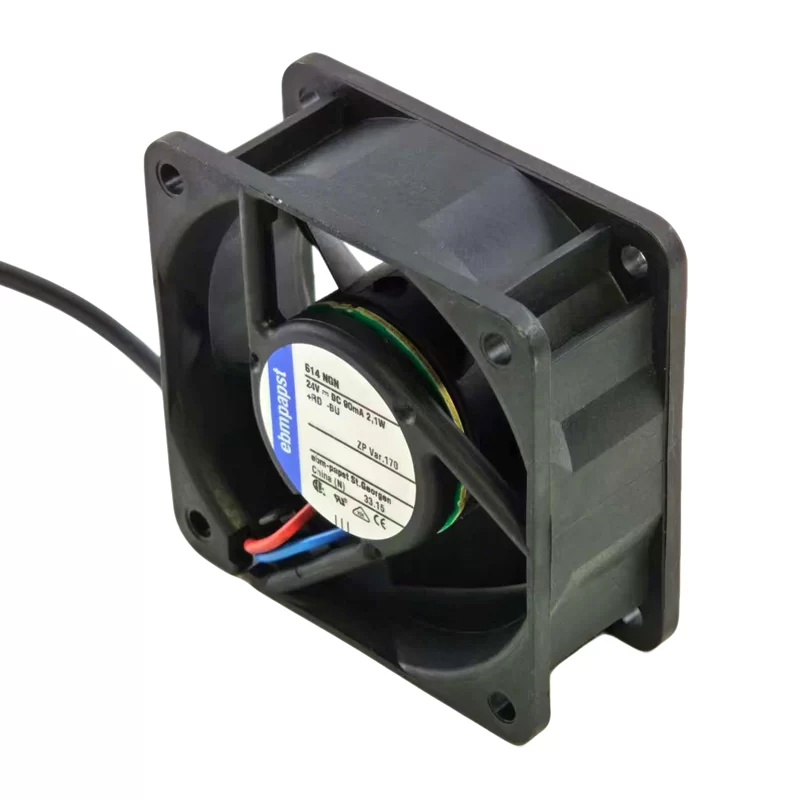

The ebmpapst 614NGN is a DC axial fan with dimensions of 60 x 60 x 25 mm, designed for compact applications. It operates at 24V DC, drawing 90 mA of current and consuming 2.1 W of power. The fan achieves a speed of 5100 RPM, delivering an airflow of 40 m³/h with a static pressure of 76 Pa. It operates at a low noise level of 35 dB(A). The fan features a sleeve bearing and is constructed from plastic for both the housing and impeller. It has a long service life of 70,000 hours at 40°C (35,000 hours at maximum temperature). The fan is terminated with two-wire leads and is certified by CE, UL, VDE, and CSA.

614NGN Fan Parameters
Manufacturer: ebmpapst
Model: 614NGN
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24V DC
Current Rating: 90 mA
Power Consumption: 2.1 W
Airflow: 40 m³/h
Static Pressure: 76 Pa
Speed: 5100 RPM
Noise Level: 35 dB(A)
Weight: 0.066 kg
Bearing Type: Sleeve bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C to 70 °C
Service Life: L10 at TU = 40 °C 70,000 h; L10 at TU max. 35,000 h
Approval: CE, UL, VDE, CSA

Application
The 614NGN fan is suitable for applications requiring compact size, efficient cooling, and quiet operation, such as in small electronic enclosures, medical devices, routers, and embedded systems.
