Description

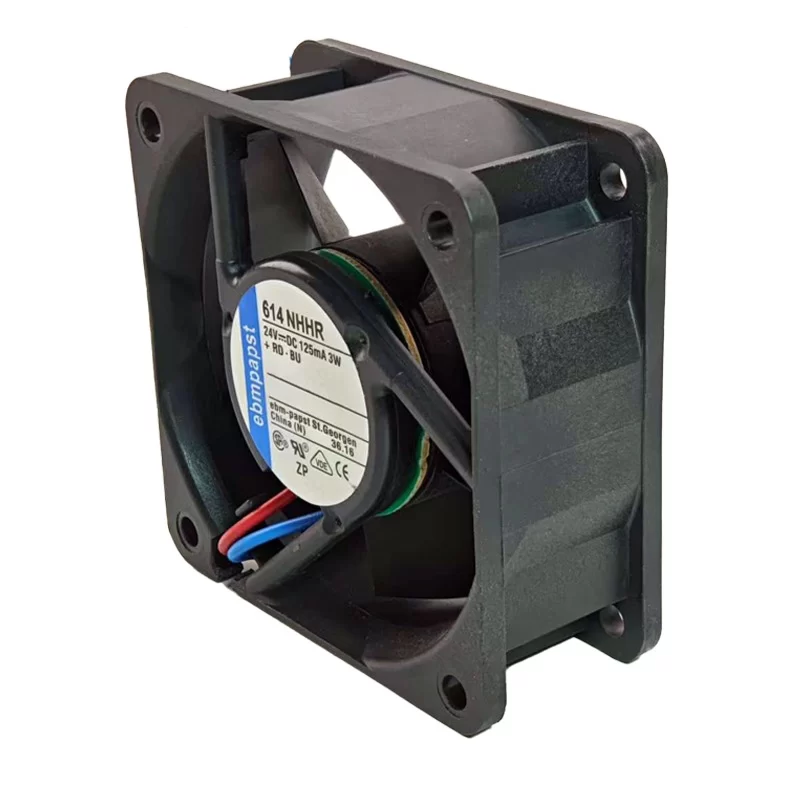

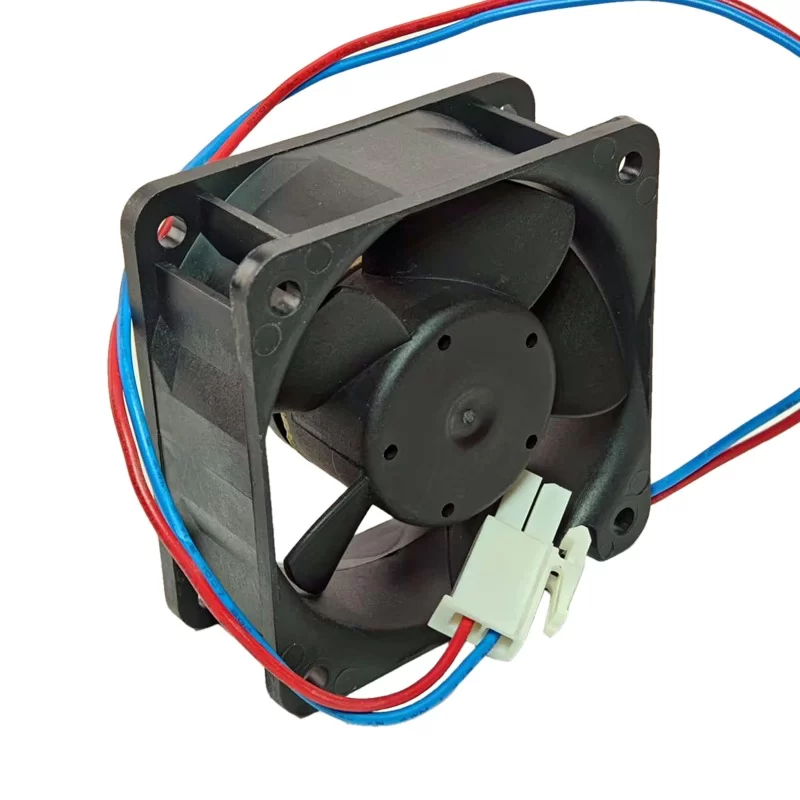

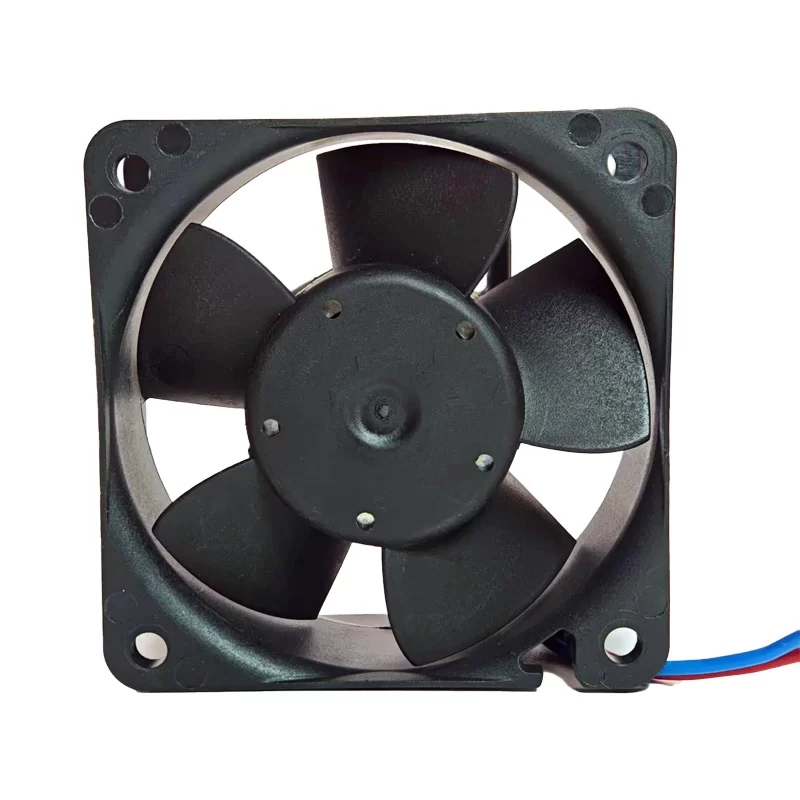

The ebmpapst 614NHHR is a compact, high-performance 60mm DC axial cooling fan designed for precision cooling in various electronic and industrial applications, including printing machines and inverters. Operating on 24V DC, it delivers a significant airflow for its size. This fan is built for durability and continuous operation, featuring ball bearings for a long and reliable lifespan. It provides effective cooling with a moderate noise level for its performance class, making it suitable for environments where consistent thermal management is crucial. It connects via 2-wire leads for straightforward power input, and also offers protection against reverse polarity and a blocked rotor.
Model: 614NHHR
Manufacturer: ebmpapst
Type: Axial Fan
Fan Dimensions: 60mm x 60mm x 25mm
Rated Voltage: DC 24V
Operating Voltage Range: DC 18V to 26V
Rated Current: 0.125A
Rated Power: 3.0W
Maximum Rotational Speed: 6850 RPM
Maximum Airflow: 56 m³/h (equivalent to approx. 33 CFM)
Noise Level: 41 dBA
Bearing Type: Ball Bearing
Expected Lifespan: 60,000 hours (at 40°C)
Connector: 2-Wire Leads
