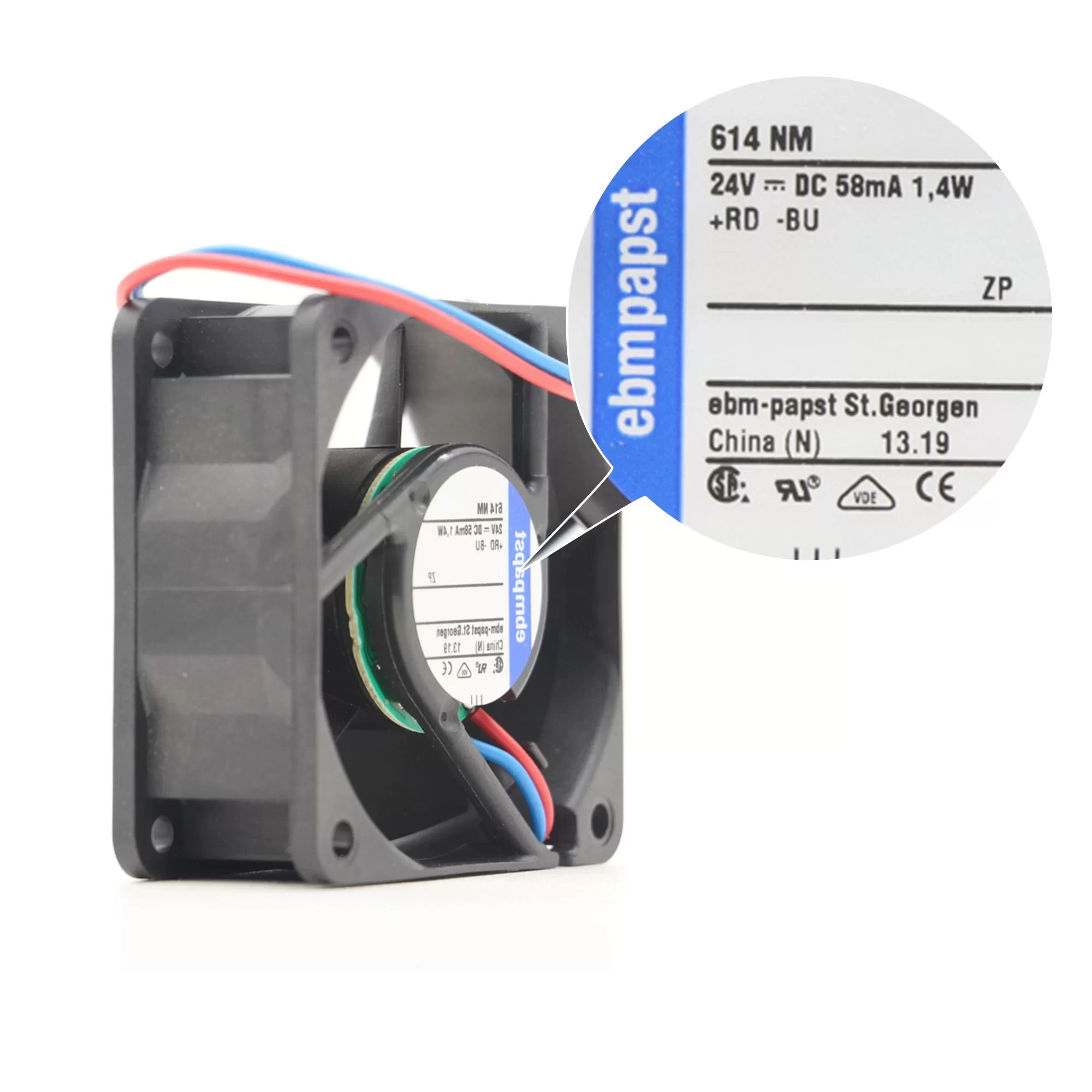

614NM ebmpapst 24V DC Axial Fan

Description

The ebmpapst 614NM is a 24V DC Axial Fan with precise dimensions of 60x60x25mm. It operates within a nominal voltage range of 18 to 28V DC. The fan has a power consumption of 1.3W, a current draw of 0.125A, and achieves a speed of 4100RPM, providing an airflow of 35m³/h. It produces a sound power level of 4.6B and a sound pressure level of 28dB(A). The fan is equipped with ball bearings for a long service life of 80000 hours at 40°C and 40000 hours at maximum temperature. Both its housing and impeller are constructed from glass-fiber reinforced PBT plastic and glass-fiber reinforced PA plastic, respectively. Its airflow direction is exhaust over struts, with rotation clockwise viewed toward the rotor. It is designed to operate efficiently within an ambient temperature range of -20 to 70°C. Motor protection includes defense against reverse polarity, a blocked rotor, and electronic overload protection. The fan weighs 0.066 kg and is approved by VDE, CSA, UL, and CE. Customization options, including higher degrees of protection (IP54 / IP68), speed signal, Go/No-go alarm, and moisture protection, are possible.

614NM Fan Parameters
Model: 614 NM
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 24 V DC
Nominal Voltage Range: 18 .. 28 V DC
Speed: 4100 RPM
Power Consumption: 1.3 W
Current Draw: 0.125 A
Airflow: 35 m³/h
Sound Power Level: 4.6 B
Sound Pressure Level: 28 dB(A)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Bearing Type: Ball Bearing
Life Expectancy L10 at 40 °C: 80000 h
Life Expectancy L10 at Maximum Temperature: 40000 h
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Weight: 0.066 kg
Airflow Direction: Exhaust over struts
Direction of Rotation: Clockwise, viewed toward rotor
Termination: Leads AWG 22, TR 64, stripped and tin-plated
Motor Protection: Protection against reverse polarity and blocked rotor; With electronic locked-rotor and overload protection
Approval: VDE, CSA, UL, CE
Application: Suitable for electronics cooling, compact device ventilation, and other applications requiring efficient DC airflow with robust electronic protection.
