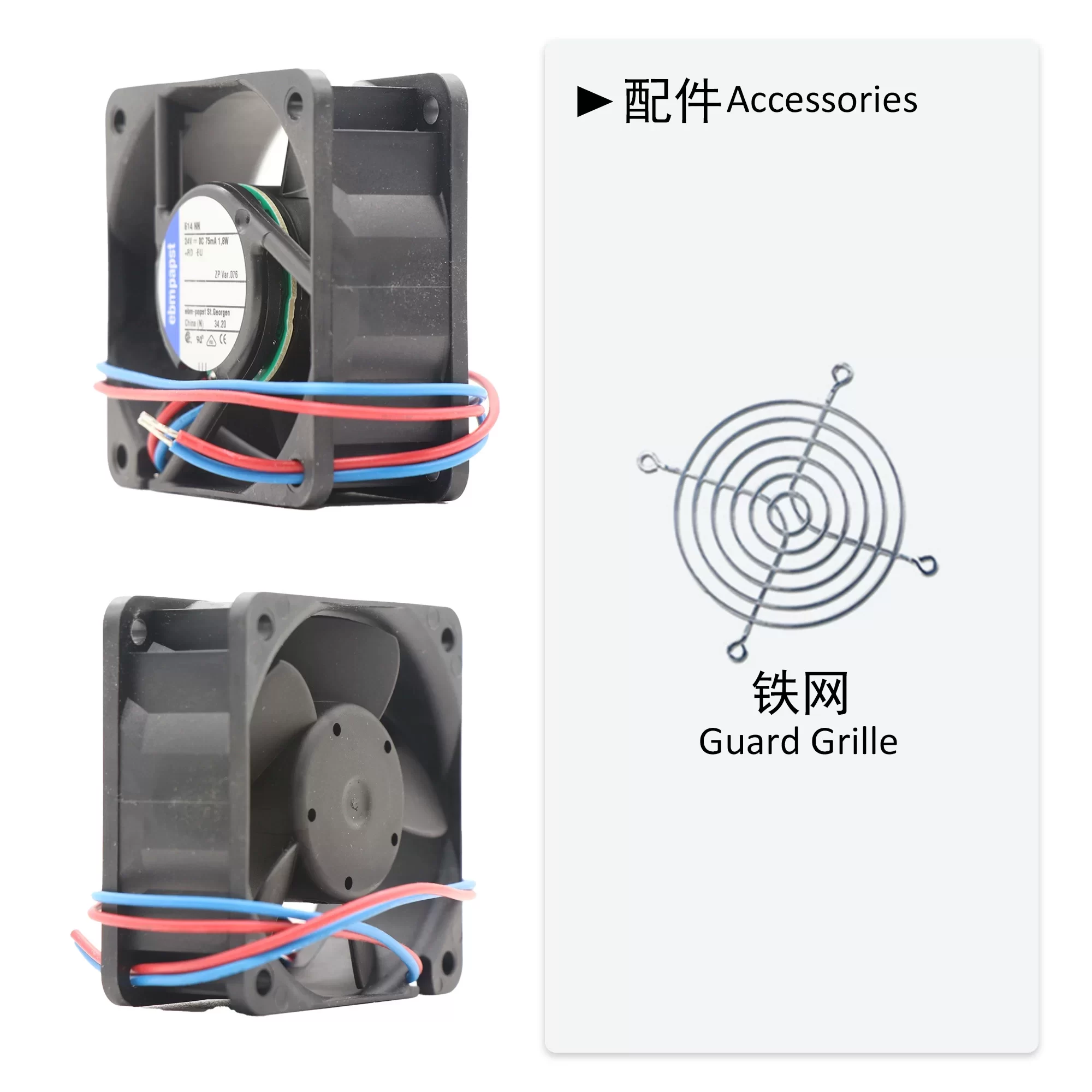

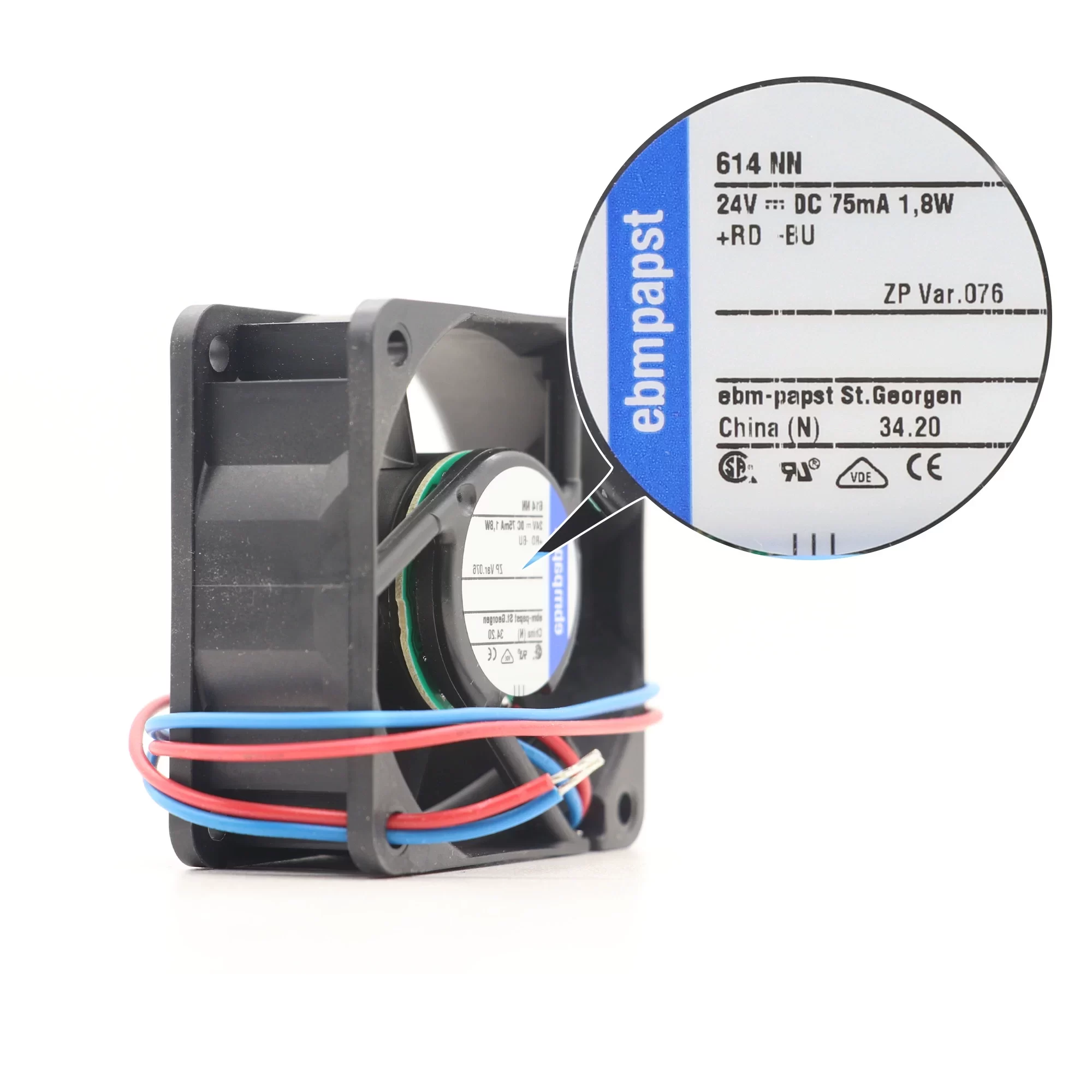

614NN ebmpapst 24V DC Axial Fan

Description

The ebmpapst 614NN is a 24V DC axial fan with dimensions of 60x60x25mm. This fan draws 72mA of current and consumes 1.8W of power. It delivers an airflow of 52m³/h (30.6CFM) at a speed of 4700RPM, with a noise level of 37dB(A). Featuring reliable ball bearings and 2 wire leads, it’s built with a glass-fiber reinforced PBT plastic frame and PA plastic impeller, ensuring dependable performance within an ambient temperature range of -20 to 75°C.

614NN Fan Parameters
Manufacturer: ebmpapst
Model: 614NN
Fan Type: Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 26.4 VDC
Current Rating: 72 mA
Power Consumption: 1.8 W
Airflow: 52 m³/h (30.6 CFM)
Speed: 4700 RPM
Noise Level: 37 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 75°C
Frame Material: Glass-fiber reinforced PBT plastic
Blade Material: PA plastic
IP Rating: IP20
Weight: 0.07 kg
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, telecommunications equipment, and control panels where a compact and reliable fan is required.
