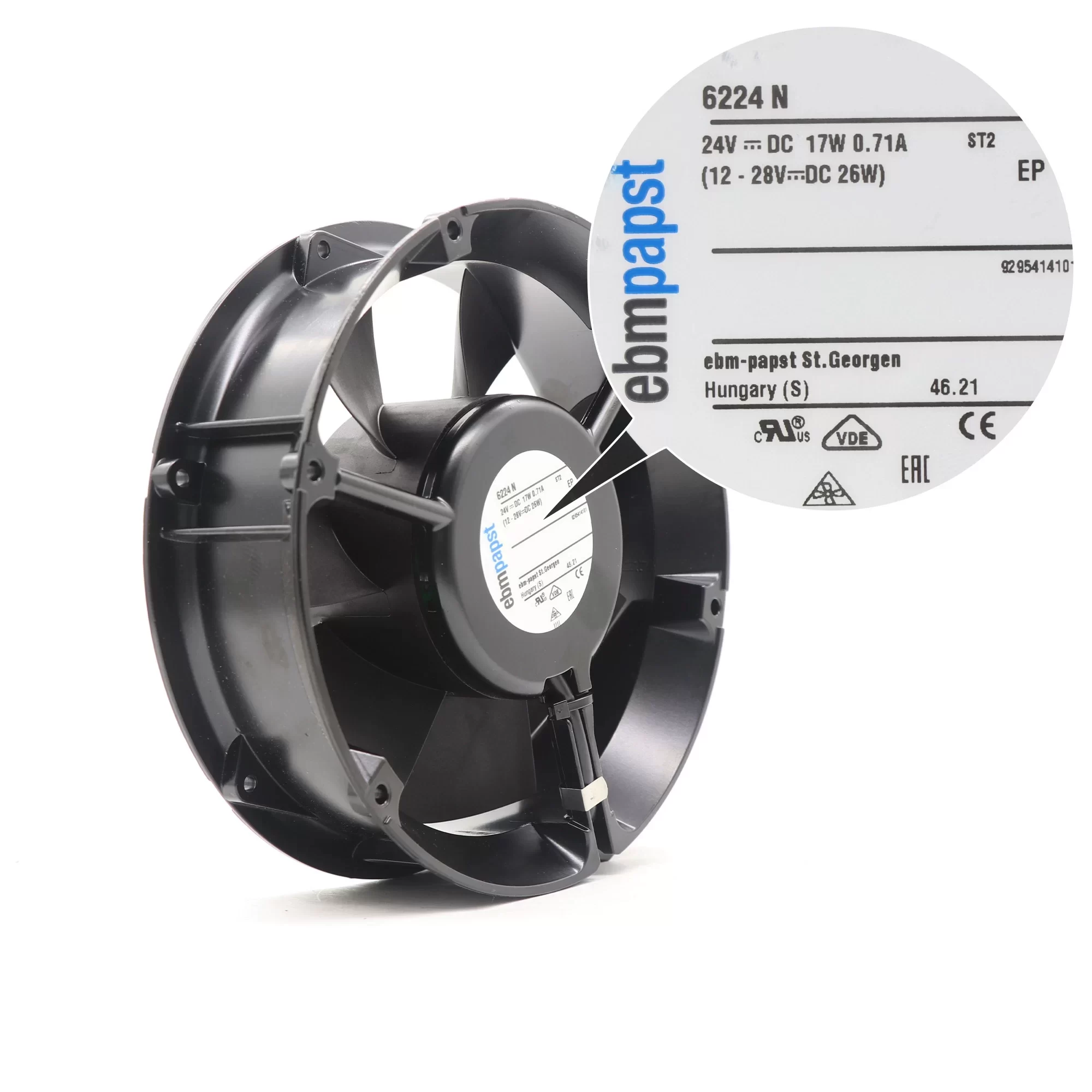

6224N ebmpapst 24V DC Axial Fan

Description

The ebmpapst 6224N is a 24V DC axial fan with dimensions of 172mm in diameter and 51mm in depth. Operating within a 12-28V range, it draws 0.71A of current and consumes 18W of power. This fan delivers an airflow of 410m³/h (241CFM) at a speed of 3400RPM, with a noise level of 55dB(A). Featuring durable ball bearings and 2 wire leads, it’s built with a robust metal housing and a plastic impeller, ensuring reliable performance within an ambient temperature range of -20 to 72°C. It is certified by VDE, CSA, UL, and CE.

6224N Fan Parameters
Manufacturer: ebmpapst
Model: 6224N
Fan Type: Axial Fan
Dimensions: 172 mm diameter x 51 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 28 VDC
Current Rating: 0.71 A
Power Consumption: 18 W
Airflow: 410 m³/h (241 CFM)
Speed: 3400 RPM
Noise Level: 55 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 72°C
Lifetime @ Temp: 80,000 Hours (at 20°C)
Frame Material: Metal
Blade Material: Plastic
IP Rating: IP20
Weight: 0.78 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, industrial equipment, and systems requiring efficient airflow.
