6224NTDA ebmpapst 24V DC Axial Fan

Description

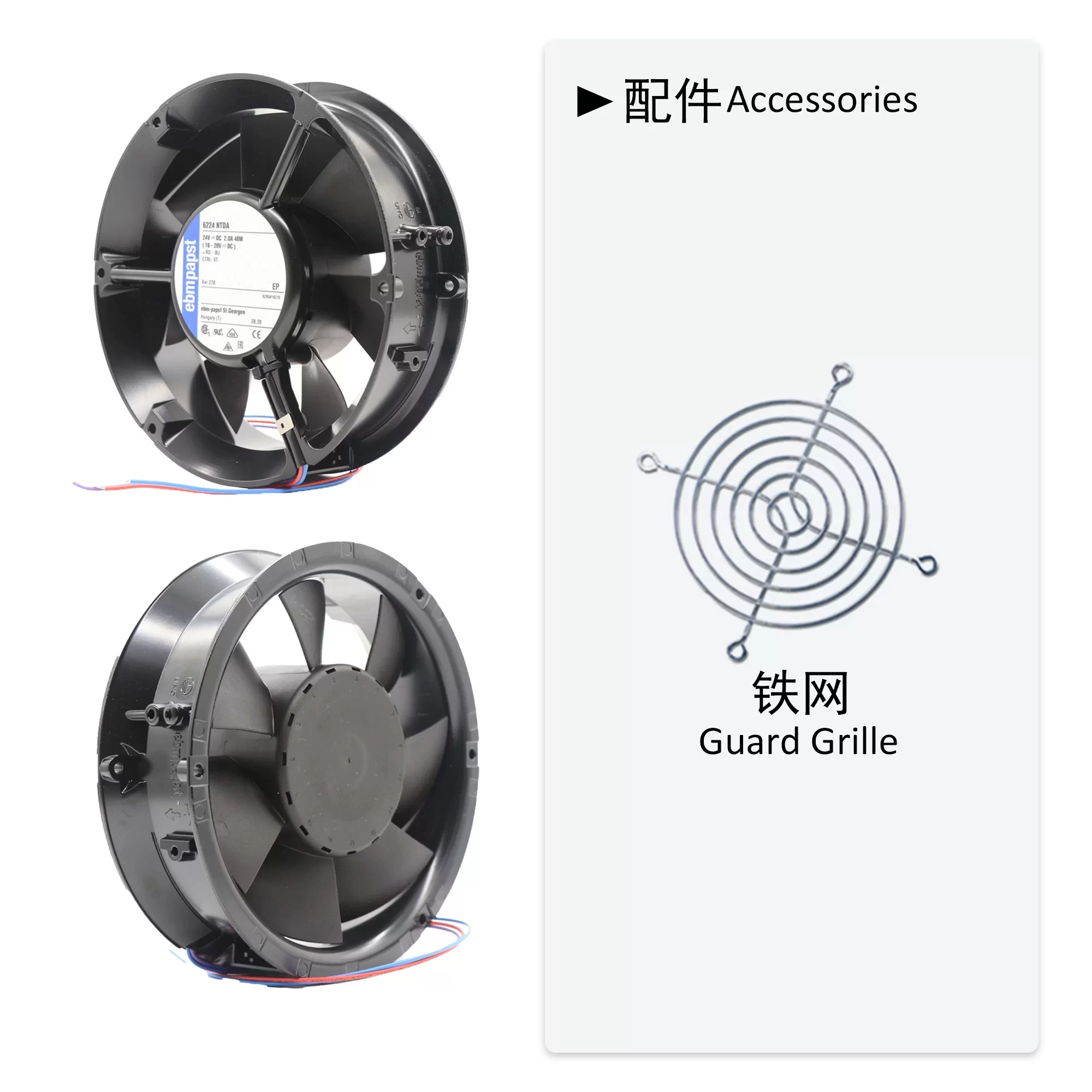

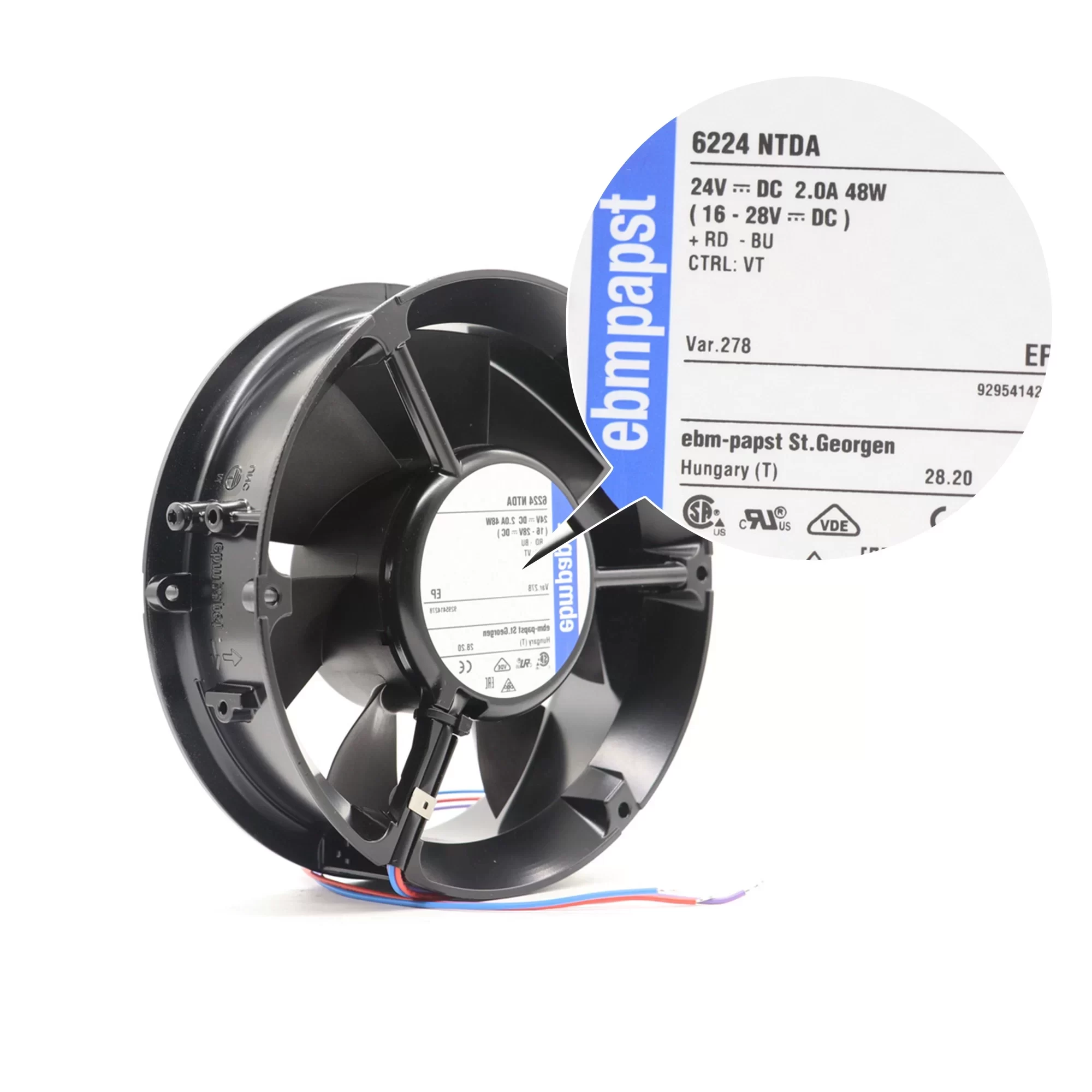

The ebmpapst 6224NTDA is a 24VDC axial fan with dimensions of 172x150x51mm. Operating within a 16-28VDC range, it draws 2.0A of current and consumes 48W of power. This fan delivers an airflow of 600m³/h (353CFM) and a static pressure of 350Pa. It operates at a speed of 5100RPM, with a noise level of 65dB(A). Featuring durable ball bearings and three wire leads, it is constructed with a metal housing and a plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 60°C and has a typical service life of 70,000hours at 40°C.

6224NTDA Fan Parameters
Manufacturer: ebmpapst
Model: 6224NTDA
Fan Type: DC Axial Fan
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 28 VDC
Current Rating: 2.0 A
Power Consumption: 48 W
Airflow: 600 m³/h (353 CFM)
Static Pressure: 350 Pa
Speed: 5100 RPM
Noise Level: 65 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Operating Temperature: -20 ~ 60°C
Lifetime @ Temp: 70,000 Hours (at 40°C)
Housing Material: Metal
Impeller Material: Plastic
IP Rating: IP20
Weight: 0.82 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is highly suitable for cooling demanding electronic equipment, server racks, power supplies, and industrial machinery where high airflow and static pressure are required.
