Description

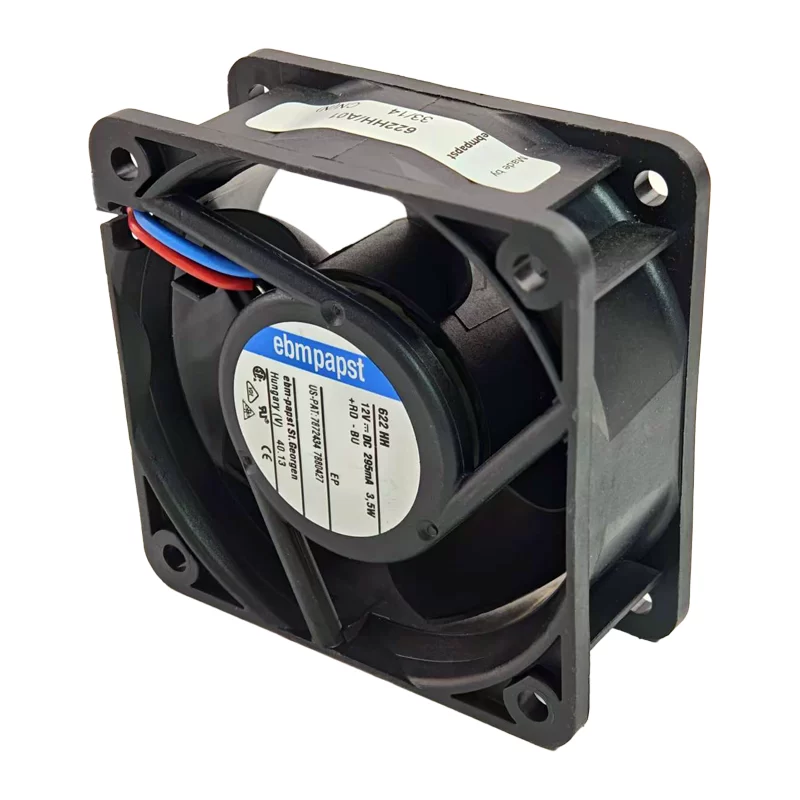

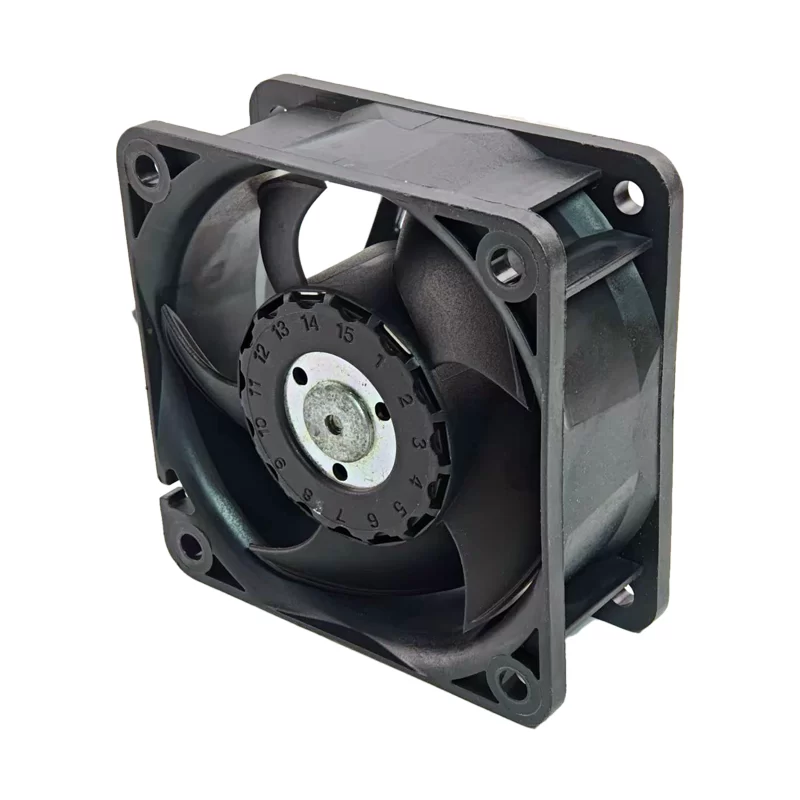

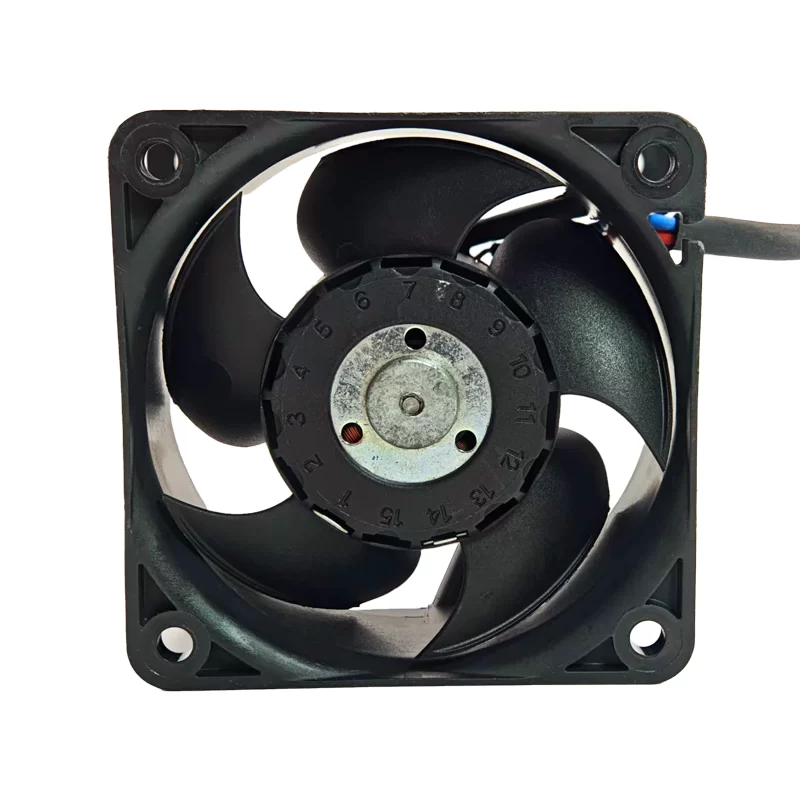

The ebmpapst 622HH is a compact 60x60x25mm DC axial fan designed for efficient thermal management in various electronic and industrial equipment. Operating on a 12V DC power supply within an 8-15V DC range, this fan draws 0.295A of current, consuming 3.5W of power. It achieves a rotational speed of 8200 RPM, delivering an airflow of 0.924 m³/min (33 CFM or 55.44 m³/h). With a noise level of 43 dB(A) and utilizing dual ball bearings, this model ensures a long service life of 65,000 hours at 40°C. Constructed with a glass fiber reinforced PBT housing and glass fiber reinforced PA impeller, it includes protection features like reverse polarity and locked rotor protection, and is certified by UL, VDE, CE, and CSA. It originates from Germany.
622HH Fan Parameters
Model Number: 622HH
Manufacturer: ebmpapst
Fan Type: DC Axial Fan (Tubeaxial)
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 12 VDC
Operating Voltage Range: 8–15 VDC
Rated Current: 0.295A
Input Power: 3.5 W
Airflow: 0.924 m³/min (33 CFM or 55.44 m³/h)
Speed: 8200 RPM
Noise Level: 43 dB(A)
Bearing Type: Dual ball bearings
Operating Temperature Range: –20°C to +70°C
Housing Material: Glass fiber reinforced PBT
Impeller Material: Glass fiber reinforced PA
Weight: 85 g
Connection Type: 2-Wire Leads
Protection Features: Reverse polarity protection, Locked rotor protection
Service Life (L10 at 40°C): 65,000 hours
Certifications: UL, VDE, CE, CSA
Country of Origin: Germany
