Description

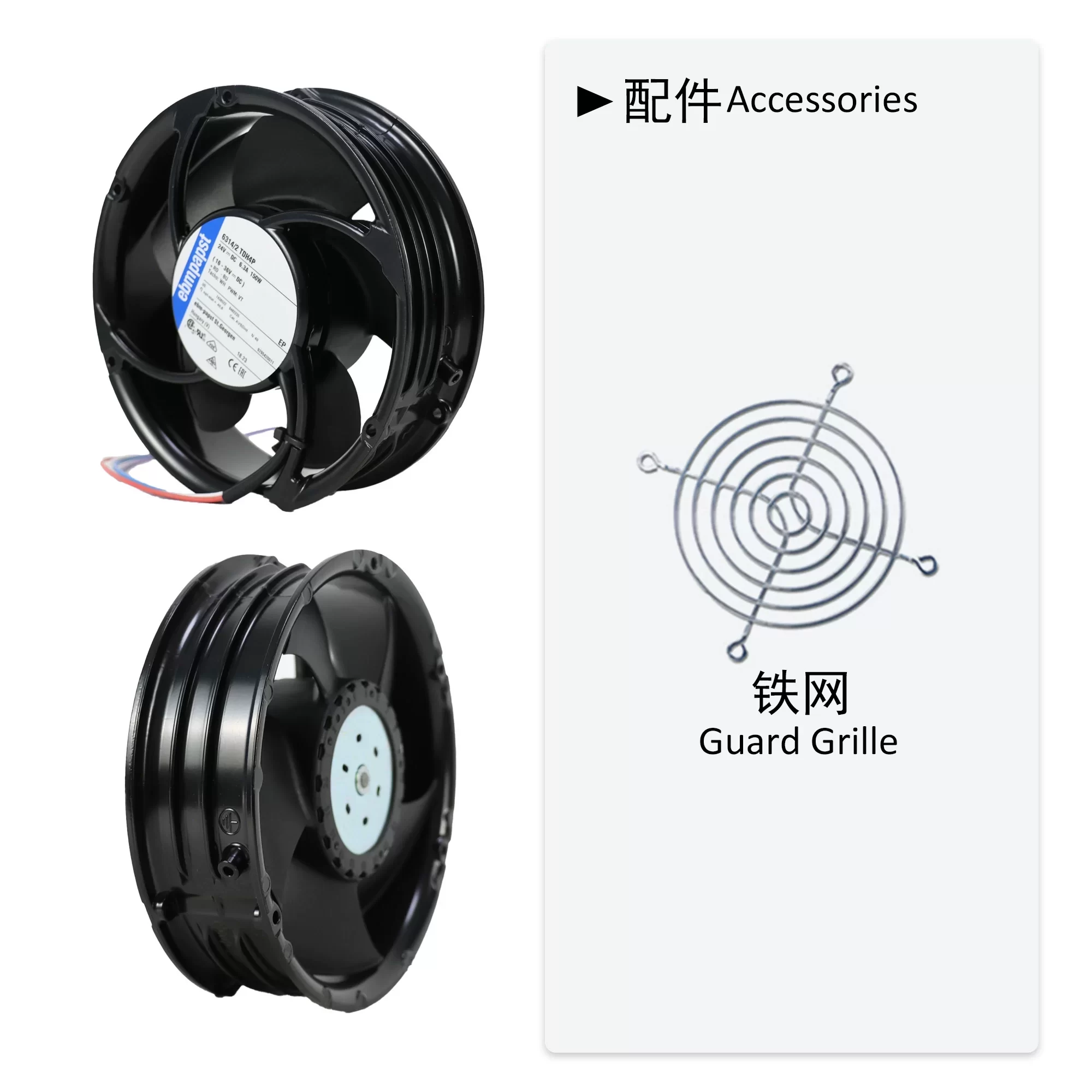

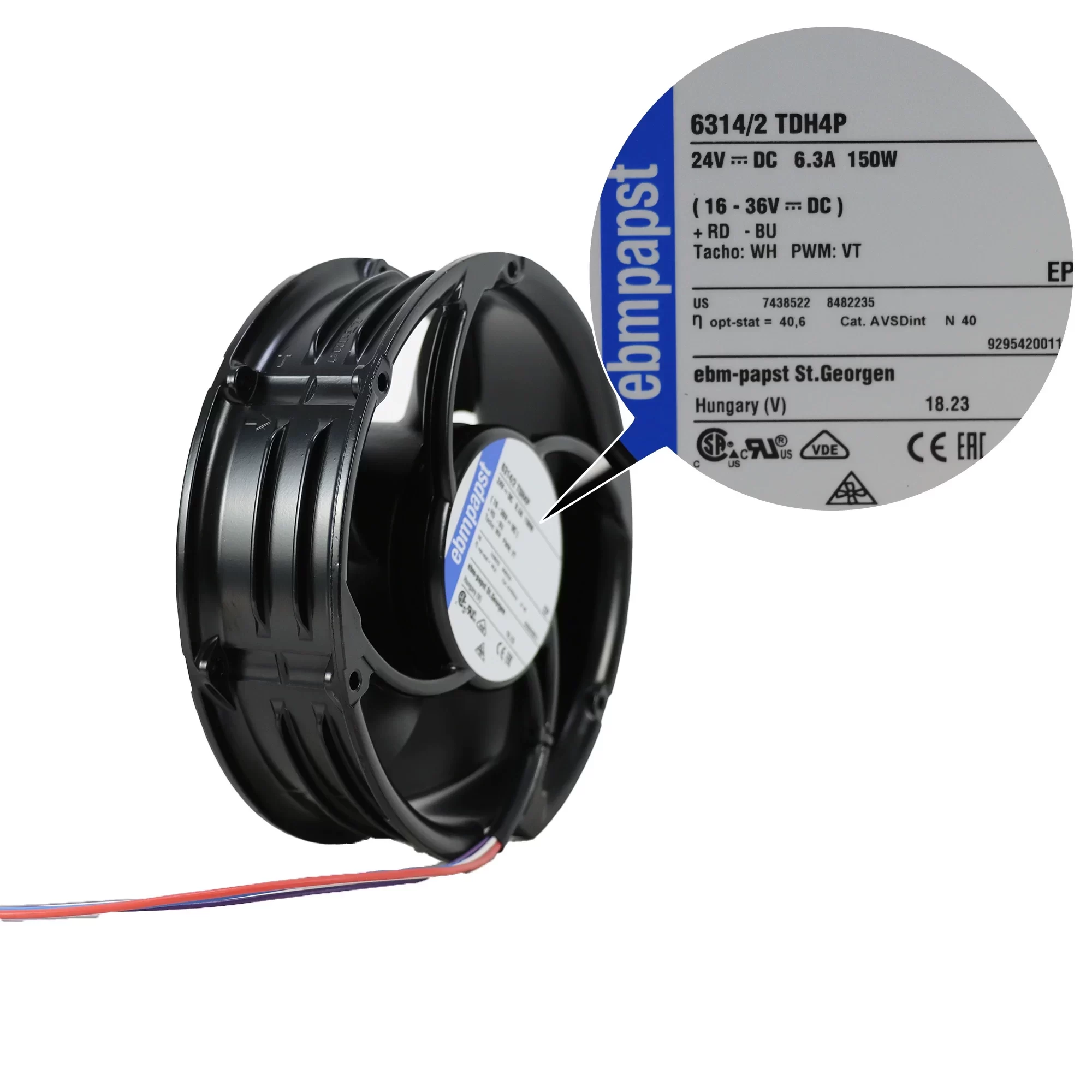

The ebmpapst 6314/2TDH4P is a high-performance DC axial fan, measuring 172x172x51mm, designed for demanding cooling applications. Operating at 24VDC within a 16-36V range, it draws 6.3A of current and consumes 150W of power. This fan delivers a robust airflow of 930m³/h (547CFM) at a high speed of 9200RPM, with a noise level of 75dB(A). It features durable ball bearings and comes with 4 wire leads, incorporating both PWM control for precise speed adjustment and a tachometer output for speed monitoring. Built with a robust aluminum frame and plastic impeller, it boasts an IP54 ingress protection rating, ensuring reliable performance within an ambient temperature range of -20 to 75°C, and is certified by CE, EAC, UL, VDE, and CSA.
6314/2TDH4P Fan Parameters
Manufacturer: ebmpapst
Model: 6314/2TDH4P
Fan Type: Axial Fan
Dimensions: 172 x 172 x 51 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 36 VDC
Current Rating: 6.3 A
Power Consumption: 150 W
Airflow: 930 m³/h (547 CFM)
Static Pressure: Not specified
Speed: 9200 RPM
Noise Level: 75 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Fan Features: PWM Control, Tachometer Output
Operating Temperature: -20 ~ 75°C
Frame Material: Aluminum
Blade Material: Plastic
IP Rating: IP54
Weight: 0.875 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for various high-airflow cooling requirements in industrial equipment, power electronics, server racks, and telecommunication systems where robust performance and environmental protection are essential.
