Description

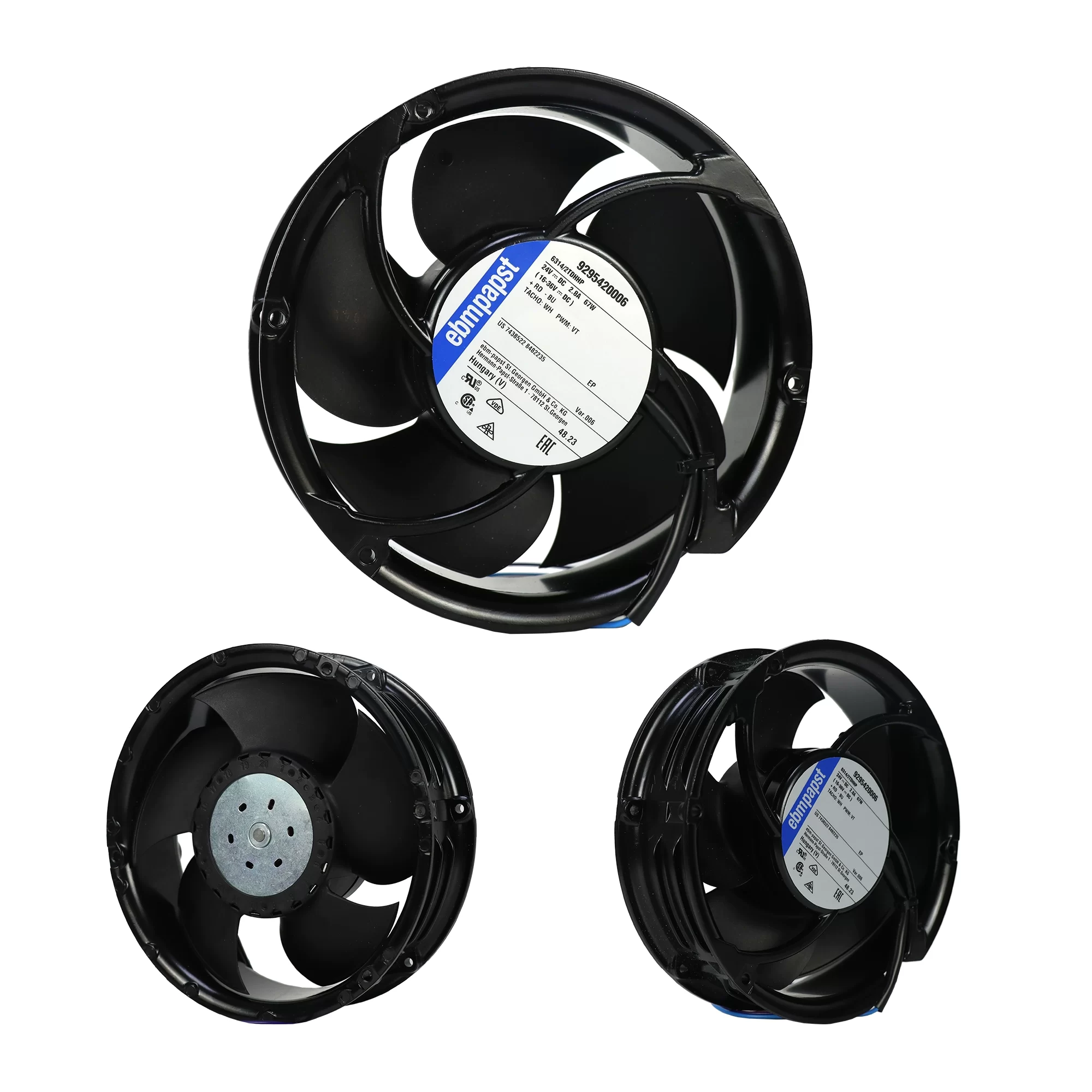

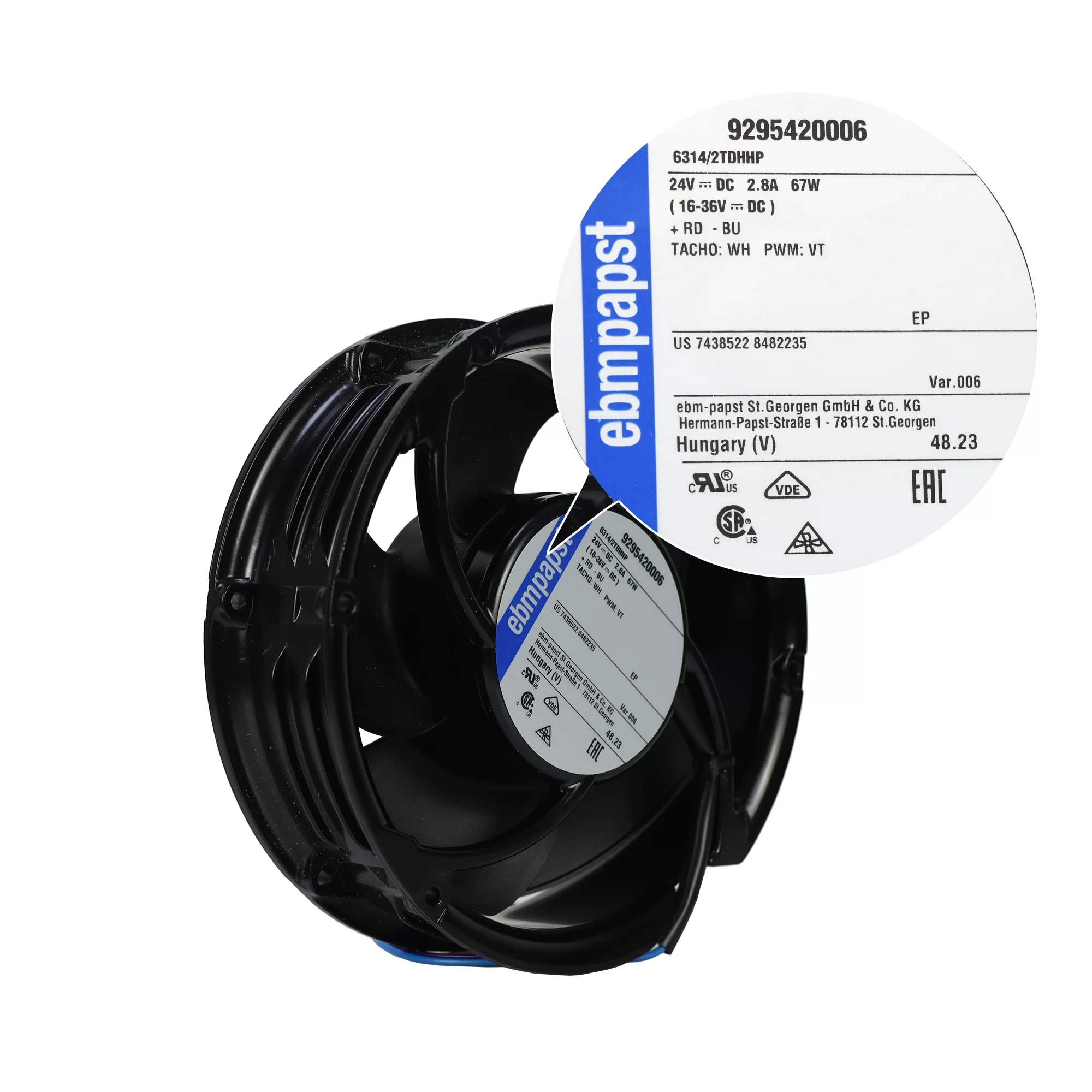

The ebmpapst 6314/2TDHHP is a DC axial fan measuring 172x172x51mm. It operates on 24 VDC, drawing 2.8 A of current, with a power consumption of 67 W. This fan achieves a speed of 7000 RPM, providing an airflow of 710 m³/h (approximately 417.9 CFM). The noise level is 69 dB(A). It features ball bearings for reliable operation and connects via 4-wire Leads, which include PWM control and a tachometer signal output. The impeller is made of glass-fiber reinforced PA plastic, and the housing is made of die-cast aluminum. This fan is commonly used in high-performance cooling applications for electronic equipment, industrial machinery, and control cabinets.
6314/2TDHHP Fan Parameters
Model: 6314/2TDHHP
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 172x172x51 mm
Rated Voltage: 24 VDC
Rated Current: 2.8 A
Operating Voltage Range: 16 to 36 VDC
Power Consumption: 67 W
Speed: 7000 RPM
Airflow: 710 m³/h (417.9 CFM)
Noise Level: 69 dB(A)
Bearing Type: Ball Bearing
Termination: 4-wire Leads (PWM, Tachometer)
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Die-cast aluminum
Operating Temperature: -20 to 75°C
Expected Life: 62500 Hrs (at 40°C)
Application: High-performance cooling for electronic equipment, industrial machinery, control cabinets.
