Description

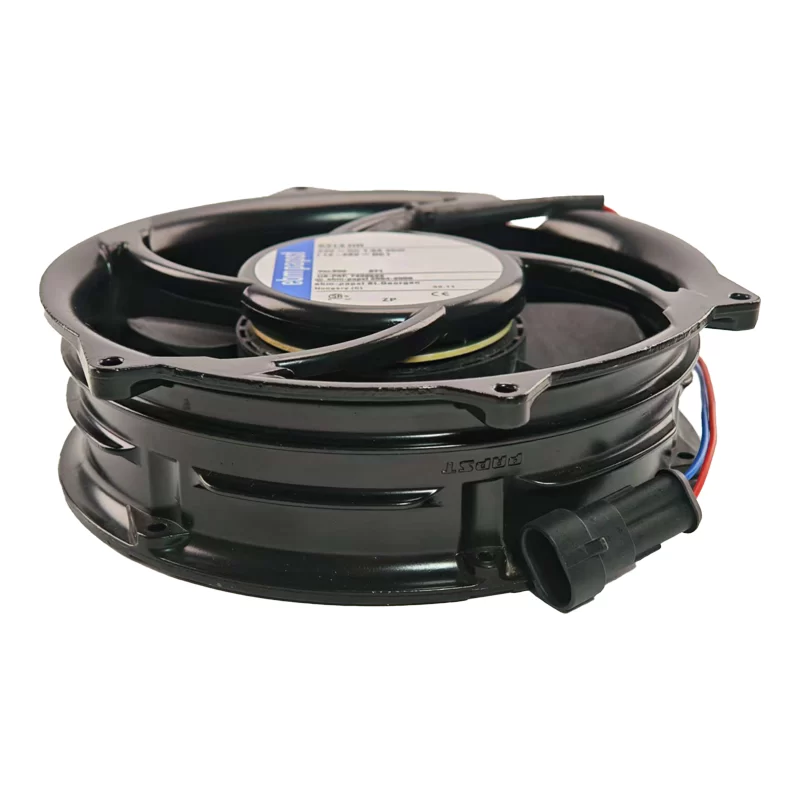

The ebmpapst 6314HR is a DC axial fan measuring 172mm x 172mm x 51mm. It operates on 24 VDC with a current draw of 1.5A and a power consumption of 36W. This fan achieves a speed of 4250 RPM and delivers an airflow of 317.5 CFM, with a typical noise level of 62.7 dB(A). Equipped with durable ball bearings and 2-wire leads for termination, it is constructed with a die-cast aluminum housing and a glass-fiber reinforced PA plastic impeller, weighing approximately 820g. This fan is suitable for various industrial, commercial, and electronic cooling applications.
6314HR Fan Parameters
Model: 6314HR
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 172 x 172 x 51 mm
Rated Voltage: 24 VDC
Rated Current: 1.5 A
Power Consumption: 36 W
Speed: 4250 RPM
Airflow: 317.5 CFM
Noise Level: 62.7 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Weight: 820 g
Frame Material: Die-cast aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Protection Class: IP20
Operating Temperature: -20°C to +75°C
Life Expectancy: 80,000 hours
Application: Industrial cooling, commercial cooling, electronic cooling (e.g., servers, telecommunication devices, inverter drives)
