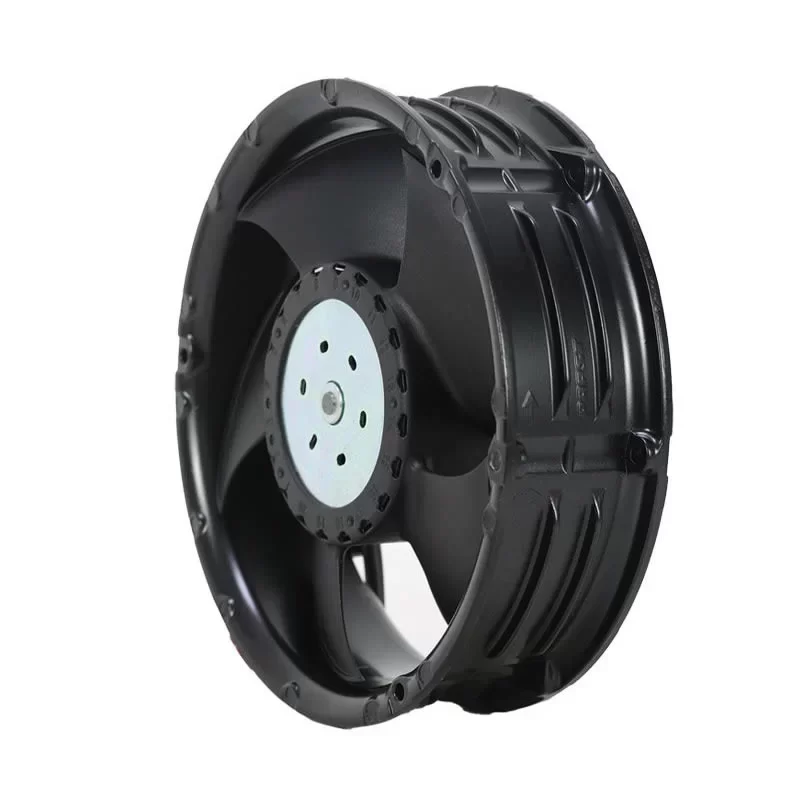

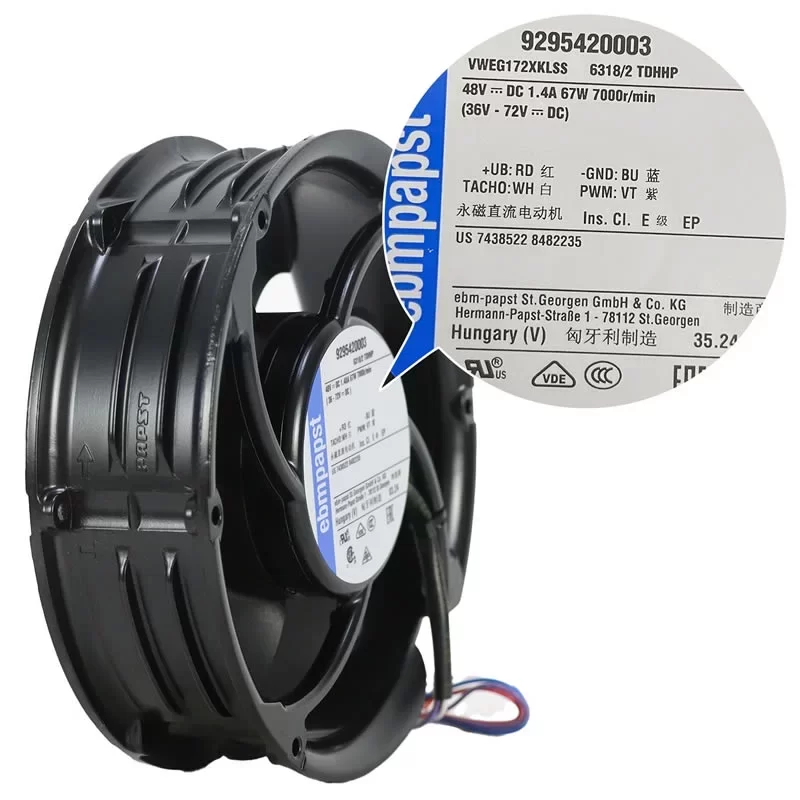

6318/2TDHHP ebmpapst 48V 1.4A 67W 172mm DC Axial Fan

Description

The ebmpapst 6318/2TDHHP is a high-efficiency 48V DC Axial Fan featuring a 3-phase fan drive designed for exceptionally smooth operation and high energy efficiency. This unit operates within a wide voltage range of 36-72 VDC, delivering a powerful airflow of 710 m³/h at a rated speed of 7000 RPM. The fan’s robust construction includes a die-cast aluminum housing—equipped with a grounding lug for an M4 x 8 Torx screw—and a 5-blade impeller made of glass-fiber reinforced PA plastic. At a nominal power consumption of 67 W (wide open) with a current draw of 1.4 A, it is engineered for heavy-duty industrial environments, offering a service life of up to 62,500 hours at 40 °C. Integrated with a speed signal (Tacho) and control input, and protected against reverse polarity and blocked rotor conditions, the 6318/2TDHHP is a mission-critical thermal management solution for high-end telecommunications, power electronics, and server infrastructure.

6318/2TDHHP Fan Parameters
Manufacturer: ebmpapst
Model Number: 6318/2TDHHP
Motor Design: Brushless DC Motor (3-phase fan drive)
Type: DC Axial Fan
Nominal Voltage: 48 VDC
Nominal Voltage Range: 36-72 VDC
Dimensions: Ø 172 x 51 mm
Impeller Size: 172 mm
Number of Blades: 5
Weight: 0.910 kg

[Electrical Data]
Speed: 7000 RPM
Power Consumption: 67 W
Current Draw: 1.4 A
Cable: Leads AWG 18, 20 or 22 (TR 64); Control/Speed AWG 22
Motor Bearing: Ball bearing
Motor Protection: Reverse polarity and blocked rotor protection

[Performance & Acoustics]
Air Flow: 710 m³/h
Sound Power Level: 7.9 B
Sound Pressure Level: 69 dB(A)
General Description: Very smooth operation

[Materials & Construction]
Housing Material: Die-cast aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Grounding: Lug for M4 x 8 screw (Torx)
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Storage: Ball bearing

[Reliability & Protection]
Service Life (L10 at 40 °C): 62500 h
Service Life (L10 at Tmax): 25000 h
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 75 °C

Application
The ebmpapst 6318/2TDHHP is specifically engineered for high-demand industrial and telecommunications applications where smooth operation and long-term reliability are paramount. Its 3-phase motor drive minimizes torque ripple and operates efficiently at 1.4 A, making it ideal for noise-sensitive yet high-performance environments like high-end server racks and modular data centers. The die-cast aluminum housing with a dedicated grounding lug ensures electrical safety and structural integrity in heavy-duty power electronics and industrial frequency inverters. With a 710 m³/h airflow capacity and wide voltage tolerance (36-72 VDC), it provides robust cooling for 48V battery storage systems and outdoor 5G base stations, maintaining stable performance even in elevated ambient temperatures up to 75 °C.
