Description

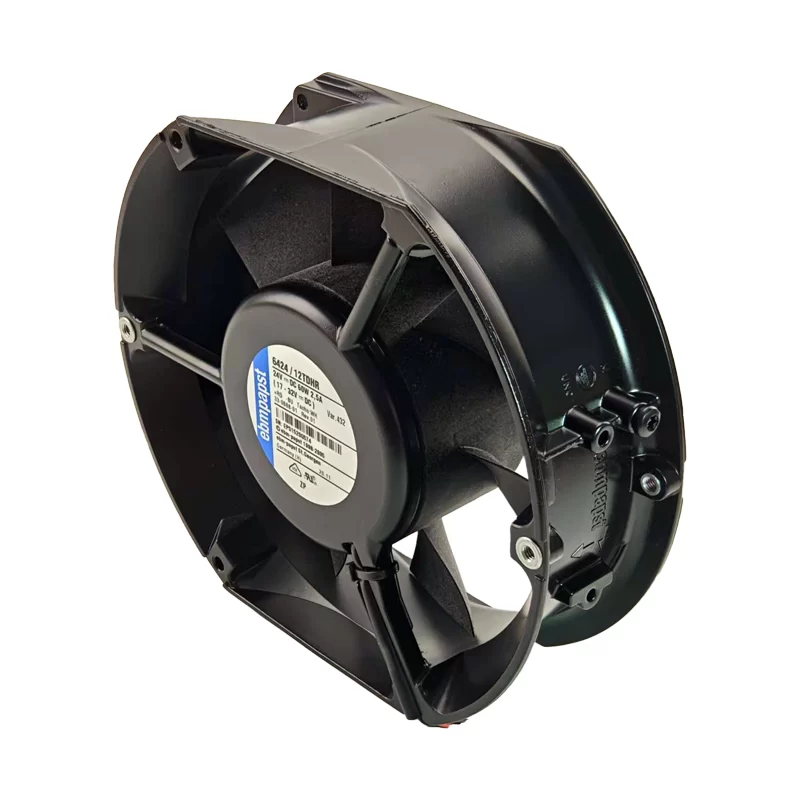

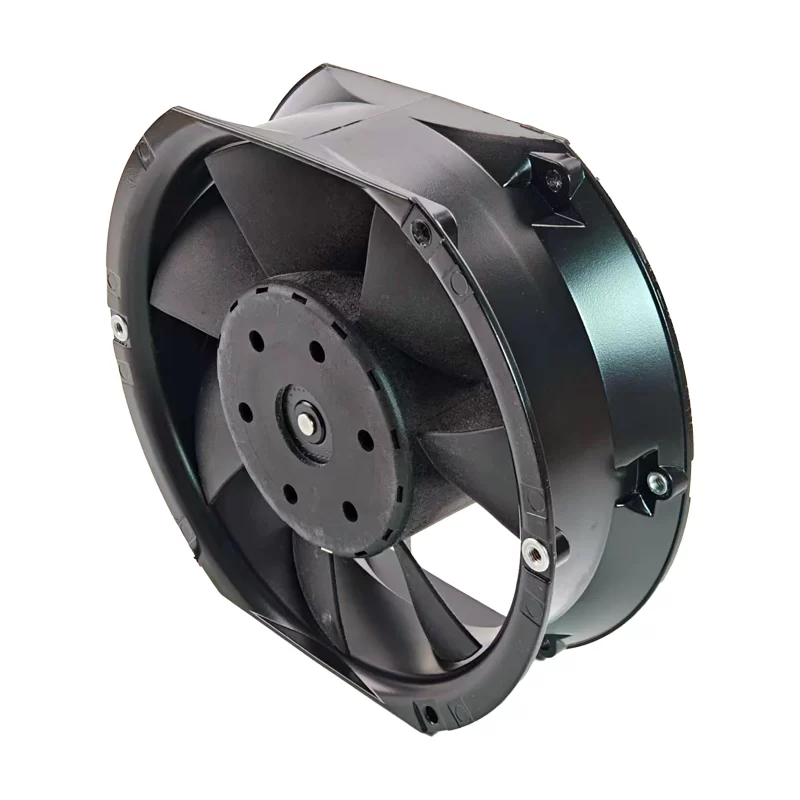

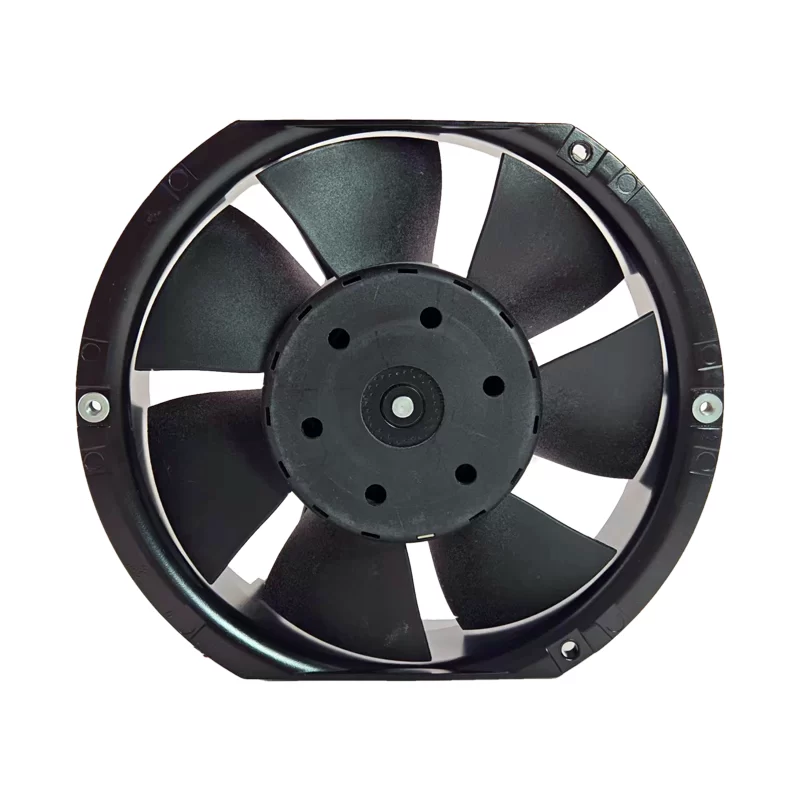

The ebmpapst 6424/12TDHR is a high-performance 24V DC axial compact fan. Measuring 172mm x 150mm x 51mm, this fan is designed for robust thermal management in demanding applications such as industrial control systems, servers, and other heavy-duty equipment. It operates at a rated voltage of 24V DC and draws a current of 2.5A, resulting in a significant power consumption of 60W. This allows it to achieve a high rotational speed of 6000 RPM, delivering a substantial airflow of 301.3 CFM. Its noise level is 69.5 dBA. The fan features durable ball bearings for an extended operational lifespan of 75,000 hours at 40°C. It commonly comes with 2-wire leads. Its frame is made of robust aluminum.
Model Number: 6424/12TDHR
Manufacturer: ebm-papst
Series: 6400 Series (DC Axial Compact Fan)
Type: DC Axial Compact Fan
Dimensions: 172mm x 150mm x 51mm
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 28V DC
Rated Current: 2.5A
Rated Power: 60W
Speed: 6000 RPM
Airflow: 301.3 CFM
Noise Level: 69.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 75,000 hours at 40°C (L10)
Frame Material: Die-cast aluminum
Impeller (Blade) Material: Fiberglass-reinforced PA plastic
Operating Temperature: -20°C to +60°C
Approvals: VDE, CSA, UL, CE
