Description

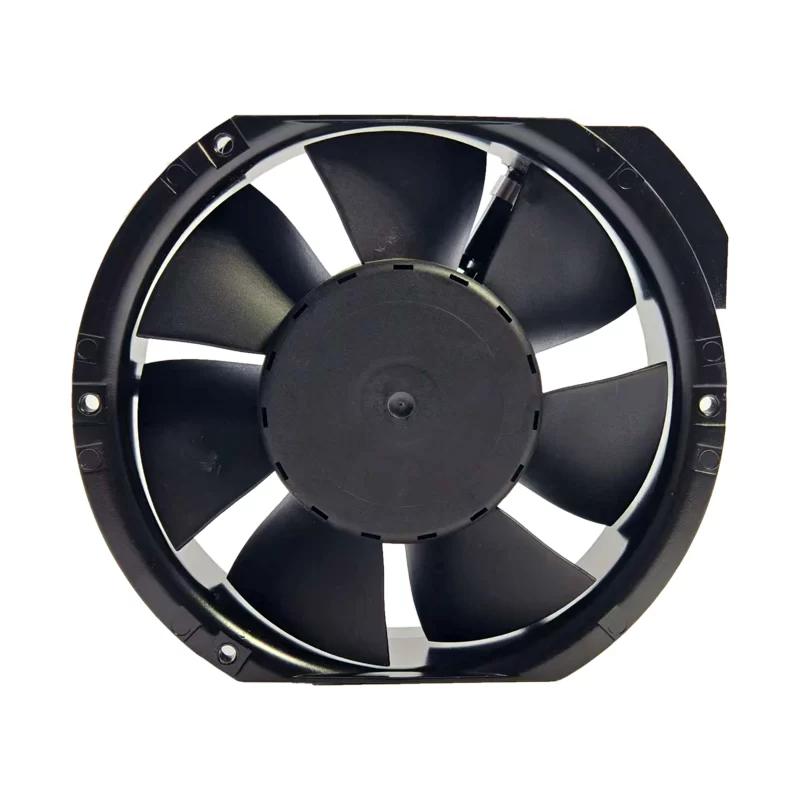

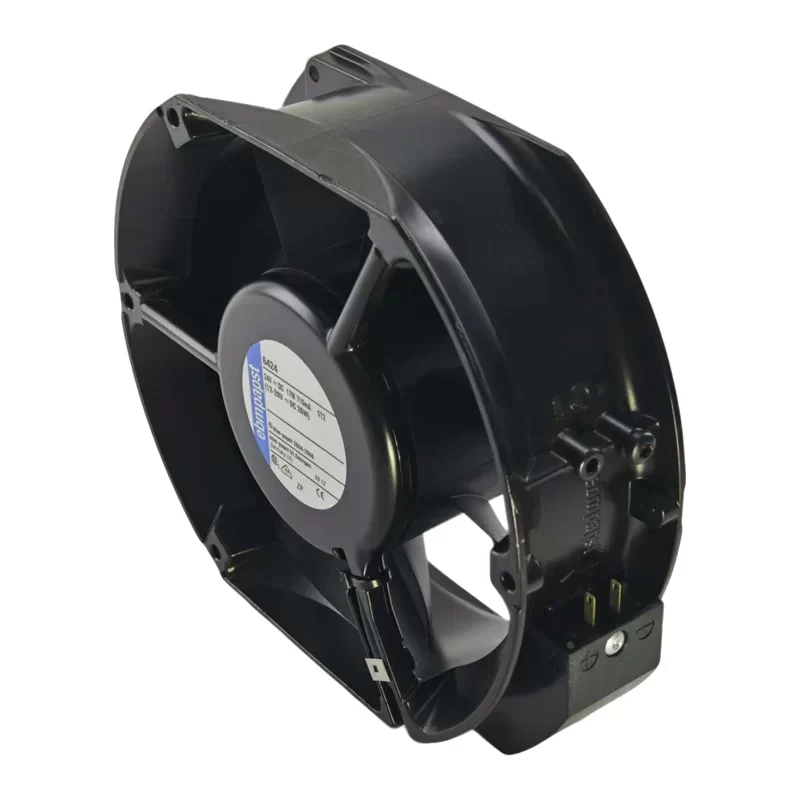

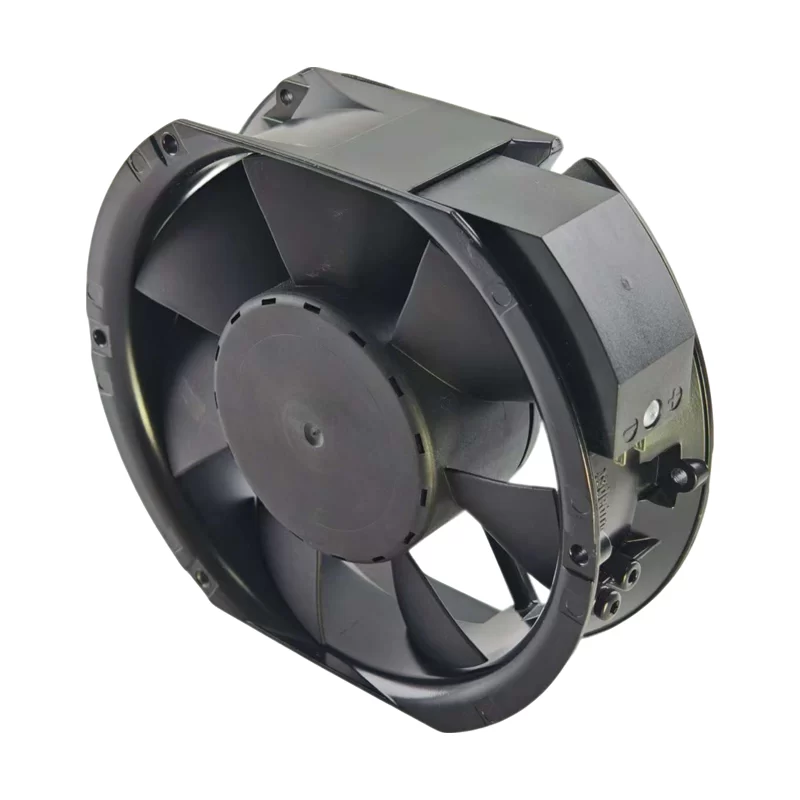

The ebmpapst 6424 is a DC axial fan with an aluminum housing. It operates on a voltage range of 12V to 28V DC, with a nominal voltage of 24V, and consumes 17W of power. The fan runs at a speed of 3400 RPM, delivering an airflow of 410 m³/h with a noise level of 57 dBA. It features ball bearings, a fiberglass-reinforced PA plastic impeller, and is terminated with 2 flat pin terminals. The fan is rated for continuous operation within a temperature range of -20 °C to 72 °C, with a service life of 75,000 hours at 40 °C and 3,500 hours at maximum temperature.
6424 Fan Parameters
Manufacturer: ebmpapst
Model: 6424
Fan Type: DC Axial Fan
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 24V DC
Voltage Range: 12 – 28V
Power Consumption: 17 W
Airflow: 410 m³/h
Speed: 3400 RPM
Noise Level: 57 dBA
Bearing Type: Ball bearings
Termination: 2 Flat Pin Terminals
Impeller material: Fiberglass-reinforced PA plastic
Housing material: Aluminum. Housing with grounding lug for screw M4 x 8 (TORX).
Operating Temperature: -20 °C to 72 °C
Lifetime L10 at 40 °C: 75,000 h
Lifetime L10 at maximum temperature: 3,500 h
Certifications: VDE, CSA, UL, CE
Weight: 0.76 kg
Application
The 6424 DC fan is suitable for applications requiring reliable cooling and high airflow, such as in industrial equipment, power converters, telecommunication enclosures, and other electronic systems that use a DC power source.
