Description

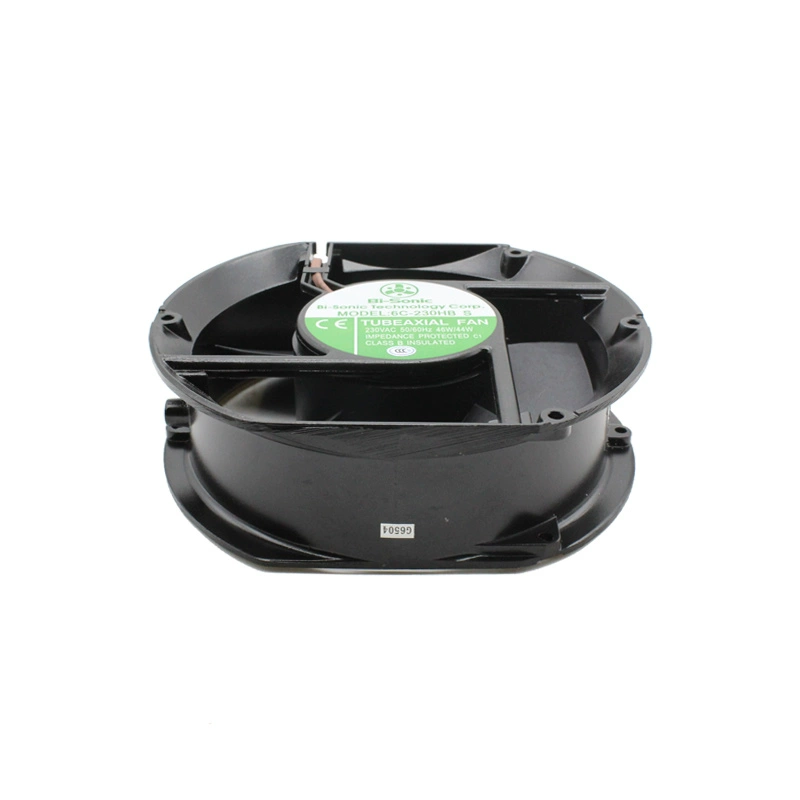

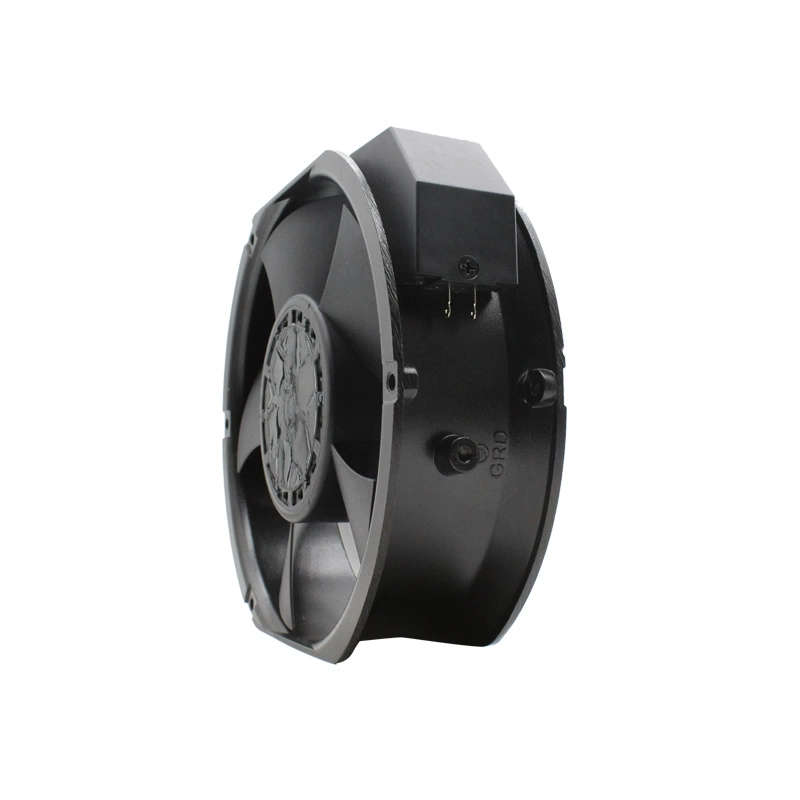

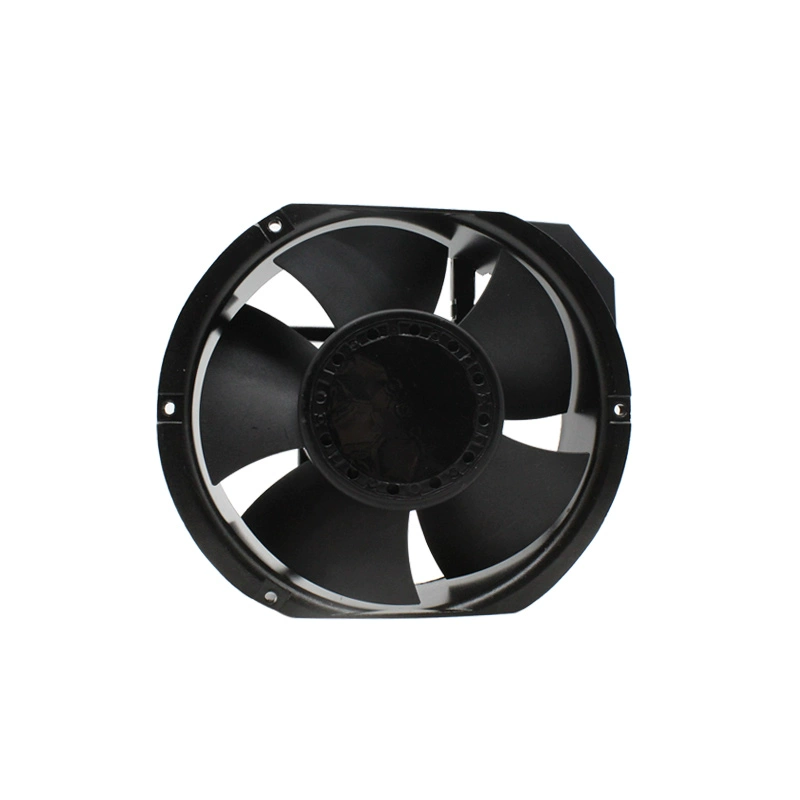

The Bi-Sonic 6C-230HB S is a powerful and durable AC Axial Cooling Fan designed for demanding thermal management in various industrial and electronic systems. Operating on 220-230V AC power, its performance characteristics vary slightly depending on the operating frequency. At 50Hz, it typically draws 0.14A to 0.19A (30W to 44W), producing 198 CFM of airflow at 2850 RPM with a noise level of 55 dBA. At 60Hz, it draws 0.16A to 0.21A (30W to 46W), delivering a higher 235 CFM at 3400 RPM with a noise level of 59 dBA. Measuring 172mm x 150mm x 51mm, this fan features a robust die-cast aluminum frame and a thermoplastic PBT impeller. Equipped with 2-wire leads and utilizing a ball bearing system, the 6C-230HB S ensures reliable, long-term operation, making it an excellent choice for cooling large cabinets, control panels, inverters, and other industrial machinery where significant and consistent airflow is essential.
Bi-sonic 6C-230HB S new original 220V Taiwan Bairui axial flow fan 1725 cooling fan
Manufacturer: Bi-Sonic
Model Number: 6C-230HB S
Type: AC Axial Cooling Fan
Rated Voltage: 220-230V AC
Rated Current:
50Hz: 0.14A to 0.19A
60Hz: 0.16A to 0.21A
Rated Power:
50Hz: 30W to 44W
60Hz: 30W to 46W
Speed:
50Hz: 2850 RPM
60Hz: 3400 RPM
Airflow:
50Hz: 198 CFM
60Hz: 235 CFM
Static Pressure:
50Hz: 13.80 mmH2O
60Hz: 18.0 mmH2O
Noise Level:
50Hz: 55 dBA
60Hz: 59 dBA
Dimensions: 172mm x 150mm x 51mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Frame Material: Die-cast aluminum
Impeller Material: Thermoplastic PBT of UL 94V-0 rating
