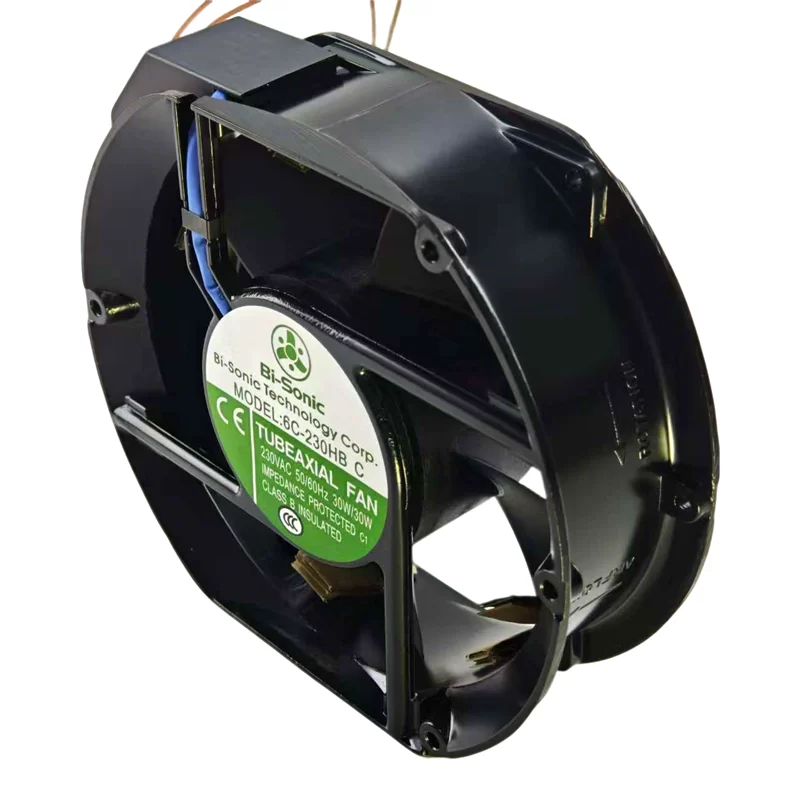

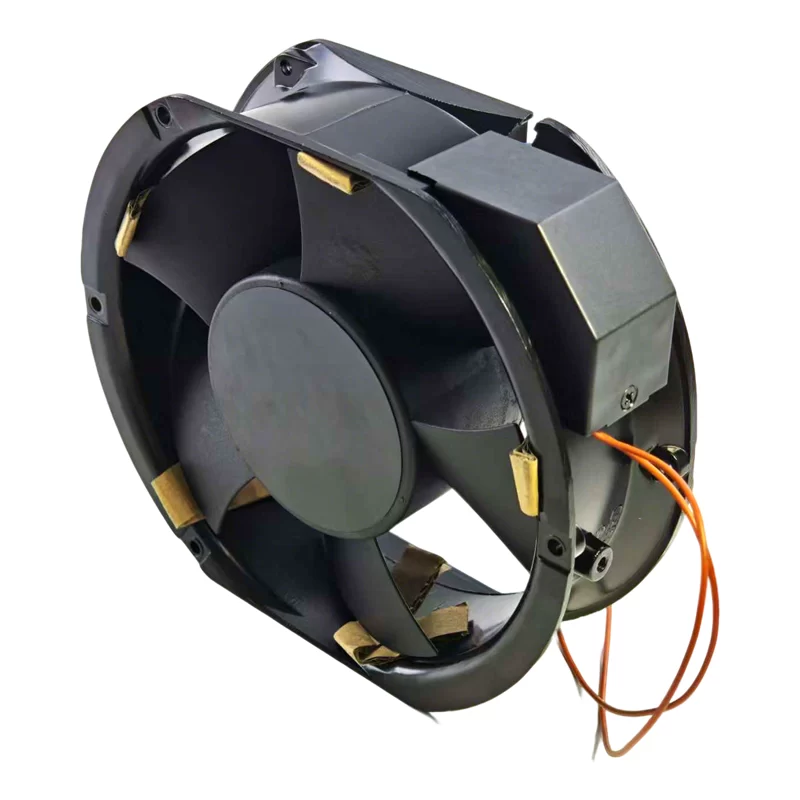

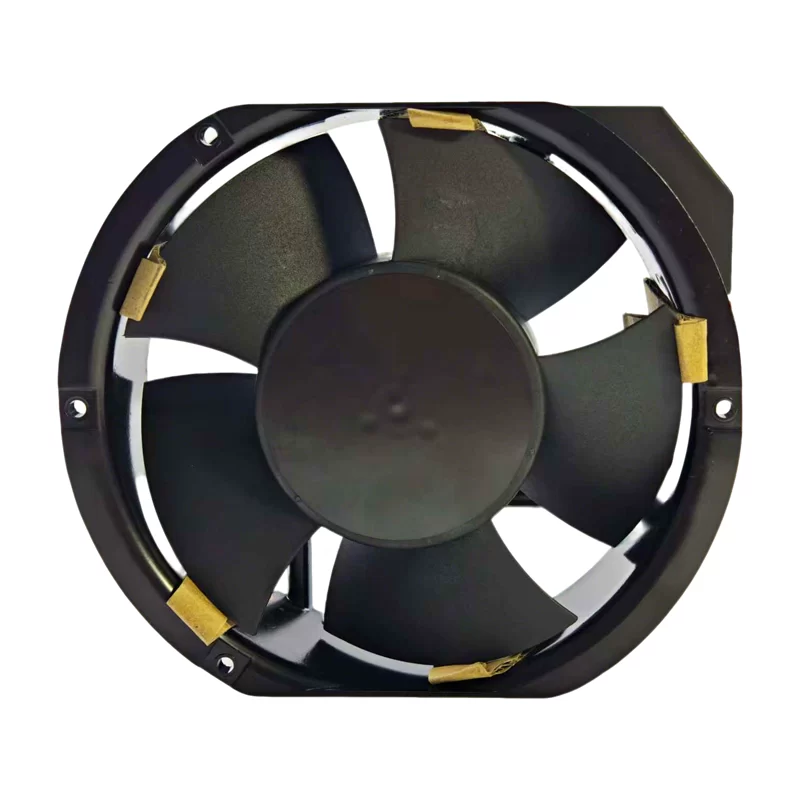

6C-230HBC Bi-Sonic 230V AC Axial Fan

Description

The Bi-Sonic 6C-230HBC is a 230VAC AC axial fan with dimensions of 172x150x51mm. It is designed for operation at two frequencies, 50Hz and 60Hz, with performance specifications varying accordingly. At 50Hz, it draws 0.14A of current, consumes 30W of power, provides 307.5m³/h (181CFM) of airflow, achieves 136.4Pa (13.9mmH₂O) of static pressure, and operates at 2850RPM with a noise level of 55.5dB(A). When running at 60Hz, it draws 0.16A of current, consumes 30W of power, delivers 356.8m³/h (210CFM) of airflow, achieves 161.8Pa (16.5mmH₂O) of static pressure, and runs at 3400RPM with a noise level of 60.3dB(A). This fan utilizes durable ball bearings, features a die-cast aluminum housing with a plastic impeller, and is terminated with two wire leads. It is suitable for ambient temperatures from -29 to 60°C and has an expected life of 60,000hours at 40°C.

6C-230HBC Fan Parameters
Manufacturer: Bi-Sonic
Model: 6C-230HBC
Fan Type: AC Axial Fan
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 230 VAC
Operating Frequency: 50 Hz / 60 Hz

Performance at 50 Hz:
Current Rating: 0.14 A
Power Consumption: 30 W
Airflow: 307.5 m³/h (181 CFM)
Static Pressure: 136.4 Pa (13.9 mmH₂O)
Speed: 2850 RPM
Noise Level: 55.5 dB(A)

Performance at 60 Hz:
Current Rating: 0.16 A
Power Consumption: 30 W
Airflow: 356.8 m³/h (210 CFM)
Static Pressure: 161.8 Pa (16.5 mmH₂O)
Speed: 3400 RPM
Noise Level: 60.3 dB(A)

Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Die-cast Aluminum Housing
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -29 ~ 60°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Weight: 0.945 kg
Approval Agency: CE, UL, cUL
Application: This Bi-Sonic AC axial fan is suitable for various cooling and ventilation applications in industrial equipment, electronic enclosures, and other systems requiring efficient air movement under AC power.
