Description

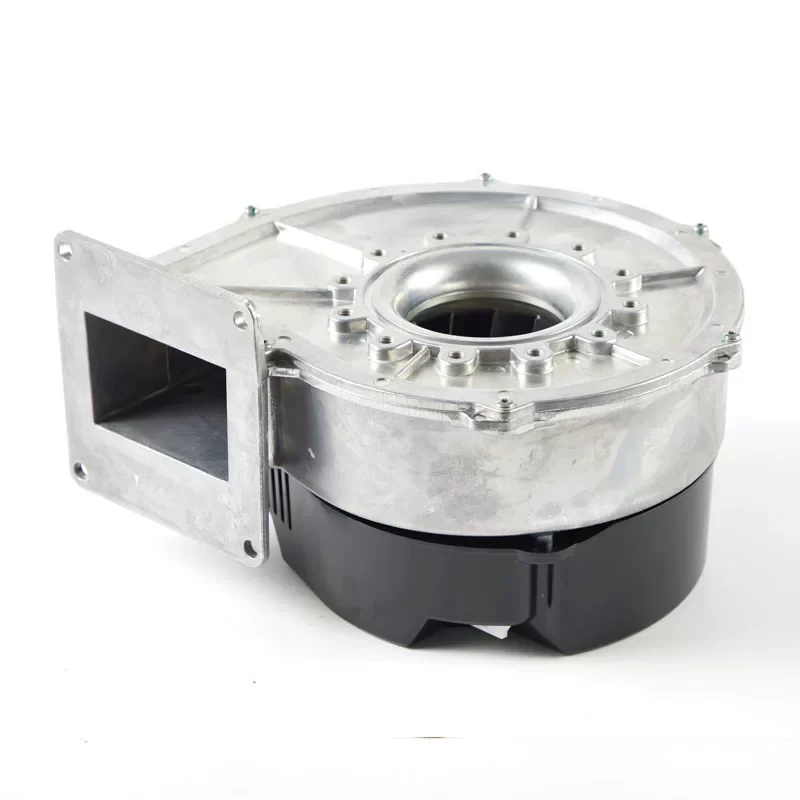

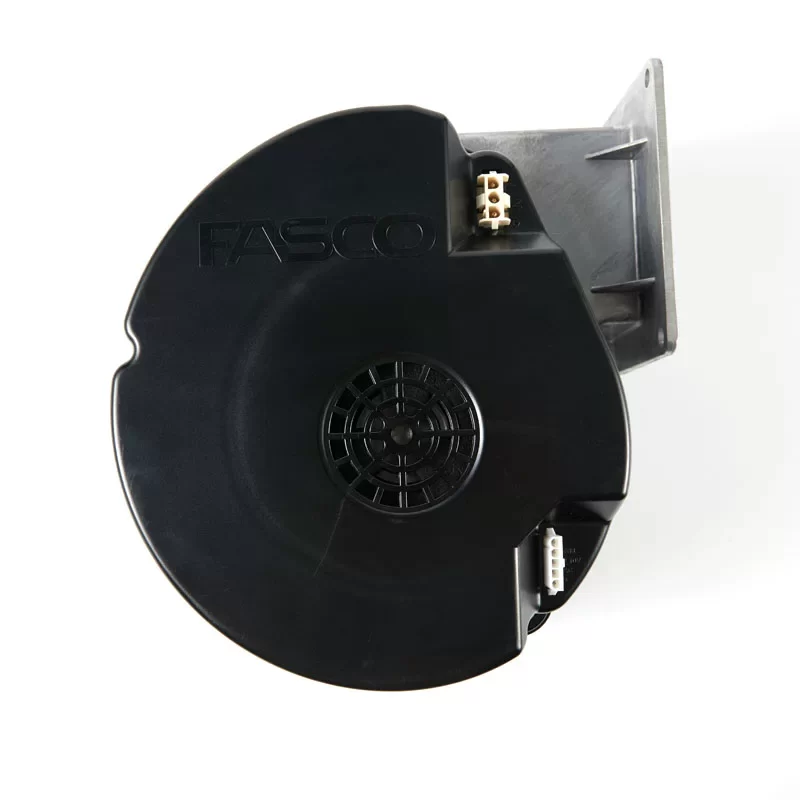

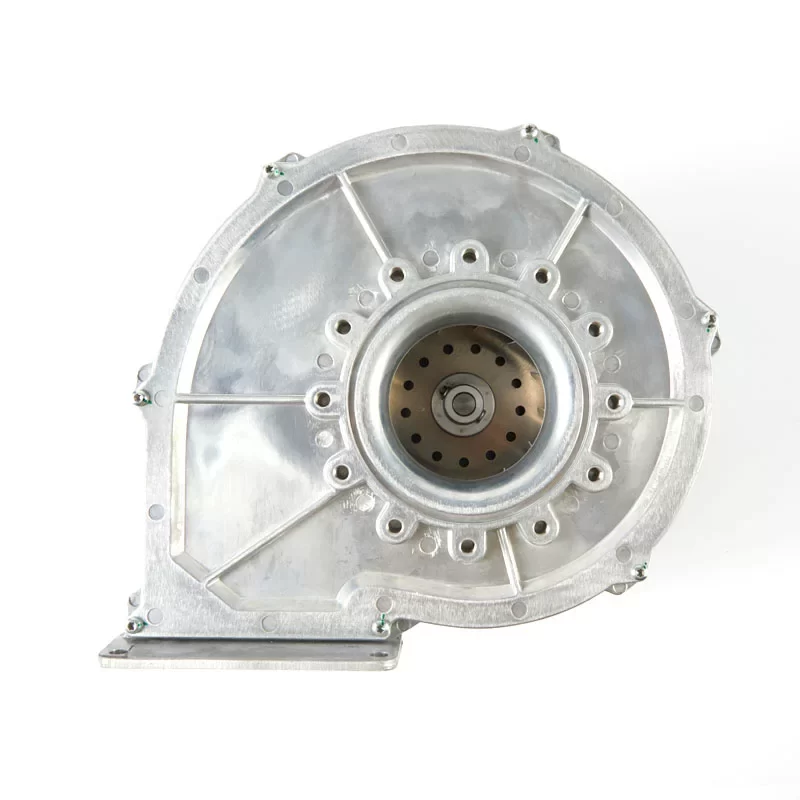

The Fasco 70530108 GPM7.0 is a high-performance 120-240V Centrifugal Blower specifically engineered for mission-critical forced draft applications in Premix Low-NOx Condensing Steam Generators and high-efficiency burner systems. Driven by a specialized high-speed motor with maintenance-free double ball bearings, this heavy-duty unit operates on a wide voltage range of 120 – 240 VAC delivering a Max. Power Consumption of 520 W and a Max. Current Draw of 2.3 A at a rated speed of 7300 RPM. This High-performance unit is optimized to overcome significant static pressure in condensing heat exchangers, providing a Max. Air Flow of 226.6 CFM (385.0 m³/h / 6.42 m³/min) and a Max. Static Pressure of 285.53 mmH₂O (2800.0 Pa / 11.24 inAq). Featuring intelligent speed regulation via PWM/0-10V control input, soft start, and locked-rotor protection, this 36-blade unit with sheet steel construction ensures precise gas-air premixing and high operational reliability in intense thermal environments at the end.
70530108 GPM7.0 Fan Parameters
Model Number: 70530108 GPM7.0
Manufacturer: Fasco
Type: Centrifugal Blower (Premix Burner Blower)
Impeller Size: 150 mm
Weight: 3.5 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Nominal Voltage Range: 120 – 240 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 2.3 A
Max. Power Consumption: 520 W
Rated Speed: 7300 RPM
Max. Air Flow: 226.6 CFM (385.0 m³/h / 6.42 m³/min)
Max. Static Pressure: 285.53 mmH₂O (2800.0 Pa / 11.24 inAq)
Working Air Flow: 385.0 m³/h
Static Pressure Increase: 2800.0 Pa
Control Interface: PWM / 0-10 VDC
Output Signal: Tach output
Number of Blades: 36 (Forward curved)
Technical Features: Soft start; Motor current limitation; Locked-rotor protection
Motor Protection: Electronic motor protection; Over-temperature protection
Touch Current (IEC 60990): ≤ 3.5 mA
Insulation Class: “B”
Degree of Protection: IP44
Protection Class: I (if protective earth is connected)
Impeller Material: Sheet steel
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise (viewed from motor side)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 60 °C
Min. Operating Temperature: -20 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; CE; UL
Application
The Fasco 70530108 GPM7.0 blower is the primary forced-draft component for premix low-NOx condensing steam generators and burner systems requiring high-speed modulation and massive static pressure for efficient air-fuel mixing.
