Description

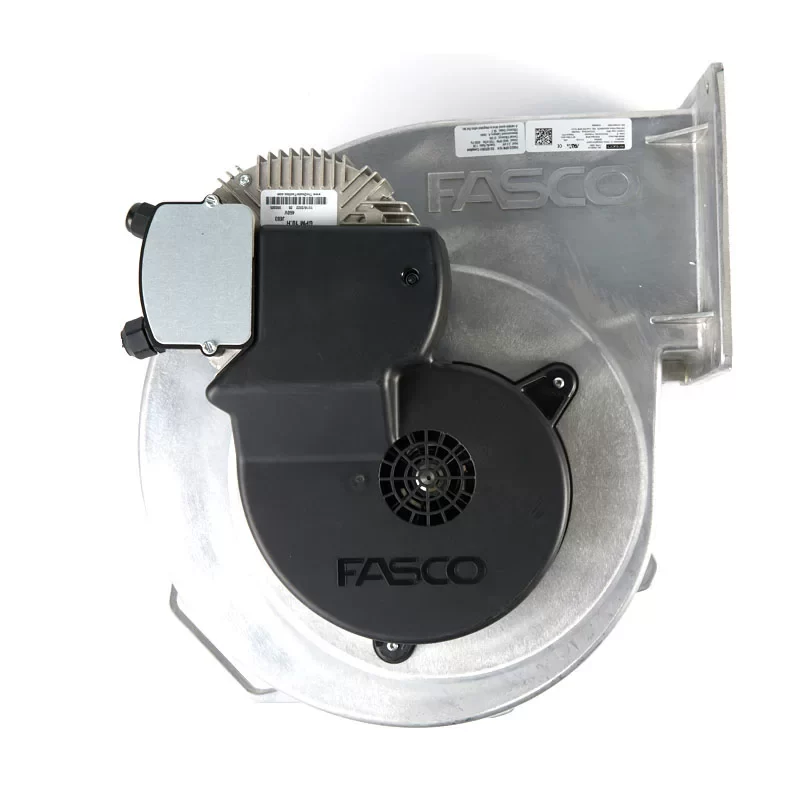

The Fasco 70530110 GPM10.0H is an industrial-grade 380-480V Centrifugal Blower specifically engineered for mission-critical forced draft applications in high-capacity Premix Low-NOx Condensing Steam Generators and burner systems. Driven by a high-efficiency three-phase motor with reinforced double ball bearings, this heavy-duty unit operates on an industrial 380 – 480 VAC supply delivering a Max. Power Consumption of 2600 W and a Max. Current Draw of 5.5 A at a rated speed of 6700 RPM. This High-performance unit is optimized to overcome massive static pressure in utility-scale condensing heat exchangers, providing a Max. Air Flow of 647.4 CFM (1100.0 m³/h / 18.33 m³/min) and a Max. Static Pressure of 662.81 mmH₂O (6500.0 Pa / 26.11 inAq). Featuring intelligent speed regulation via PWM/0-10V control input, soft start, and locked-rotor protection, this 42-blade unit with rugged die-cast aluminum construction ensures precise gas-air premixing and high operational reliability in intense thermal environments at the end.
70530110 GPM10.0H Fan Parameters
Model Number: 70530110 GPM10.0H
Manufacturer: Fasco
Type: Centrifugal Blower (Premix Burner Blower)
Impeller Size: 180 mm
Weight: 9.8 kg
Bearing Type: Ball bearing (Heavy-load rated)
Phase: 3~
Nominal Voltage: 400 VAC
Nominal Voltage Range: 380 – 480 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 5.5 A
Max. Power Consumption: 2600 W
Rated Speed: 6700 RPM
Max. Air Flow: 647.4 CFM (1100.0 m³/h / 18.33 m³/min)
Max. Static Pressure: 662.81 mmH₂O (6500.0 Pa / 26.11 inAq)
Working Air Flow: 1100.0 m³/h
Static Pressure Increase: 6500.0 Pa
Control Interface: PWM (0.1 – 6.0 kHz) / 0-10 VDC
Output Signal: Tach output (Speed signal)
Number of Blades: 42 (Forward curved)
Technical Features: Soft start; Motor current limitation; Locked-rotor protection; Over-temperature protected electronics; Line undervoltage detection
Motor Protection: Electronic motor protection; Phase failure detection
Touch Current (IEC 60990): ≤ 3.5 mA
Insulation Class: “B”
Degree of Protection: IP54
Protection Class: I (if protective earth is connected)
Impeller Material: Aluminum
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise (viewed from motor side)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 60 °C
Min. Operating Temperature: -20 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; CE; UL
Application
The Fasco 70530110 GPM10.0H blower is the primary forced-draft component for industrial-scale premix low-NOx condensing steam generators and burner systems requiring ultra-high static pressure and stable air-fuel modulation.
