7112N ebmpapst 12V DC Axial Fan

Description

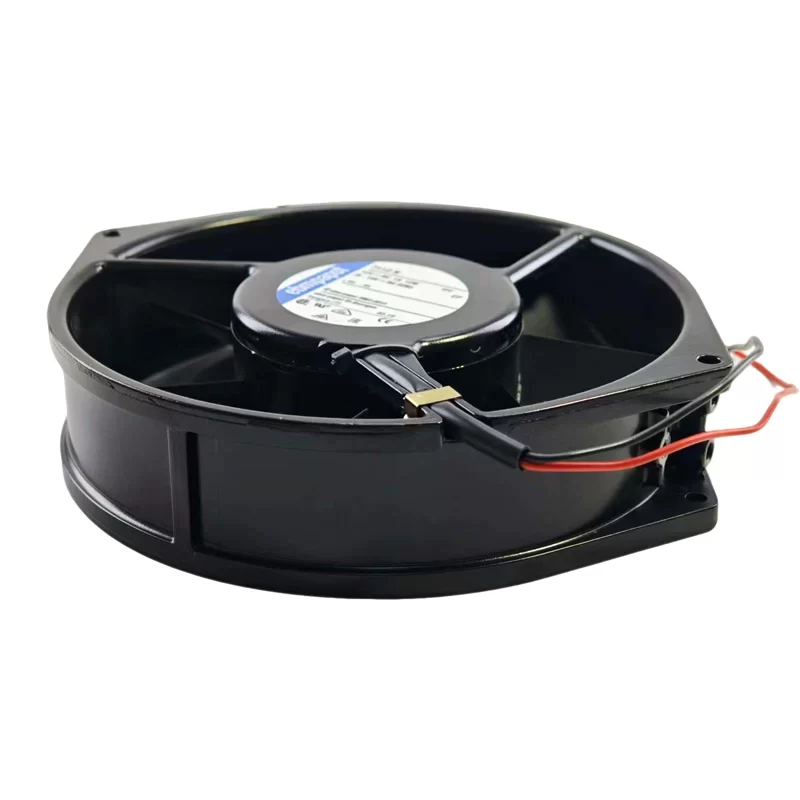

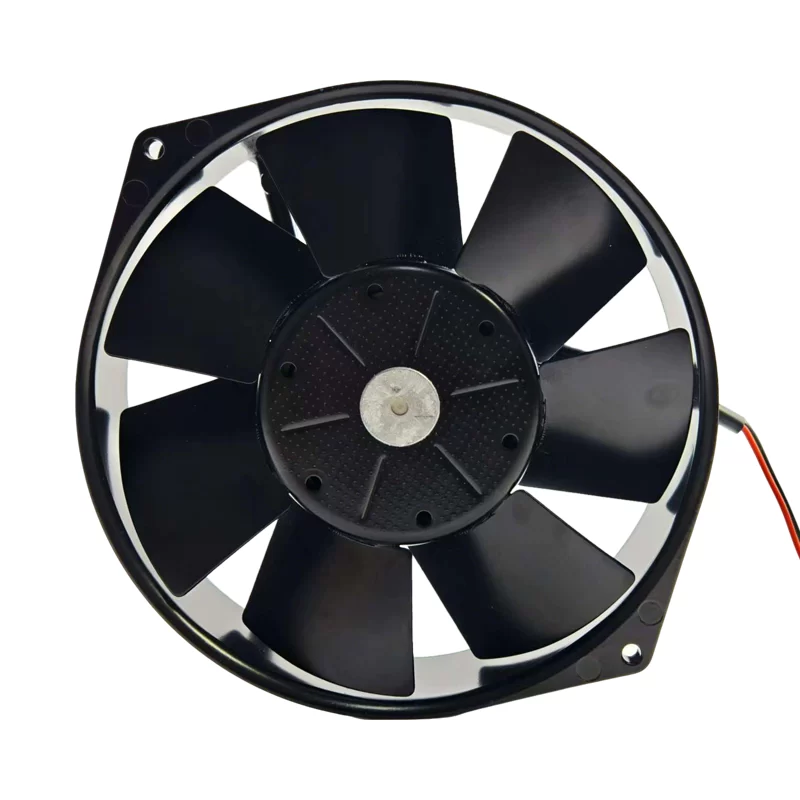

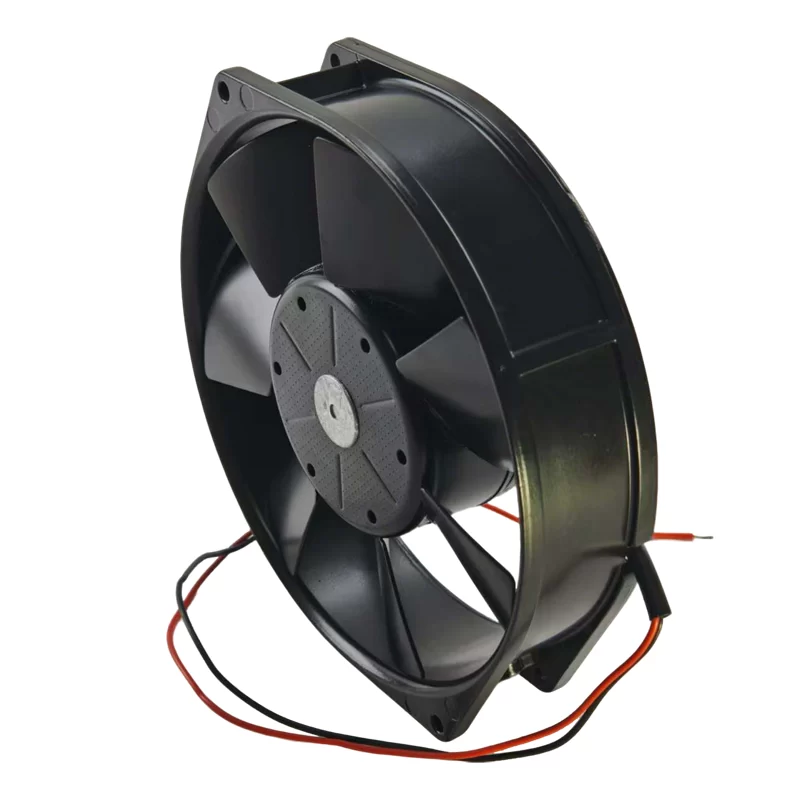

The ebmpapst 7112N is a DC axial fan with dimensions of 150 x 150 x 38 mm and a die-cast aluminum housing. It operates on a voltage range of 6V to 15V DC, with a nominal voltage of 12V, a current of 1A, and a power consumption of 12W. The fan runs at a speed of 2850 RPM, delivering an airflow of 308 m³/h with a noise level of 53 dBA. It features ball bearings and a sheet steel impeller. The fan is rated for continuous operation within a temperature range of -25 °C to 72 °C, with a service life of 80,000 hours at 40 °C and 37,500 hours at maximum temperature.

7112N Fan Parameters
Manufacturer: ebmpapst
Model: 7112N
Fan Type: DC Axial Fan
Dimensions: 150 x 150 x 38 mm
Rated Voltage: 12V DC
Voltage Range: 6 – 15V
Current Rating: 1 A
Power Consumption: 12 W
Speed: 2850 RPM
Airflow: 308 m³/h
Noise Level: 53 dBA
Bearing Type: Ball bearing
Termination: Two Wire Leads
Housing material: Die-cast aluminum
Impeller material: Sheet steel, painted black
Operating Temperature: -25 °C to 72 °C
Service life L10 at 40 °C: 80,000 h
Service life L10 at maximum temperature: 37,500 h
Certifications: VDE, CSA, UL, CE
Weight: 0.62 kg

Application
The 7112N DC fan is suitable for applications requiring reliable cooling and high airflow, such as in industrial equipment, power supplies, telecommunication enclosures, and other electronic systems that use a DC power source.
