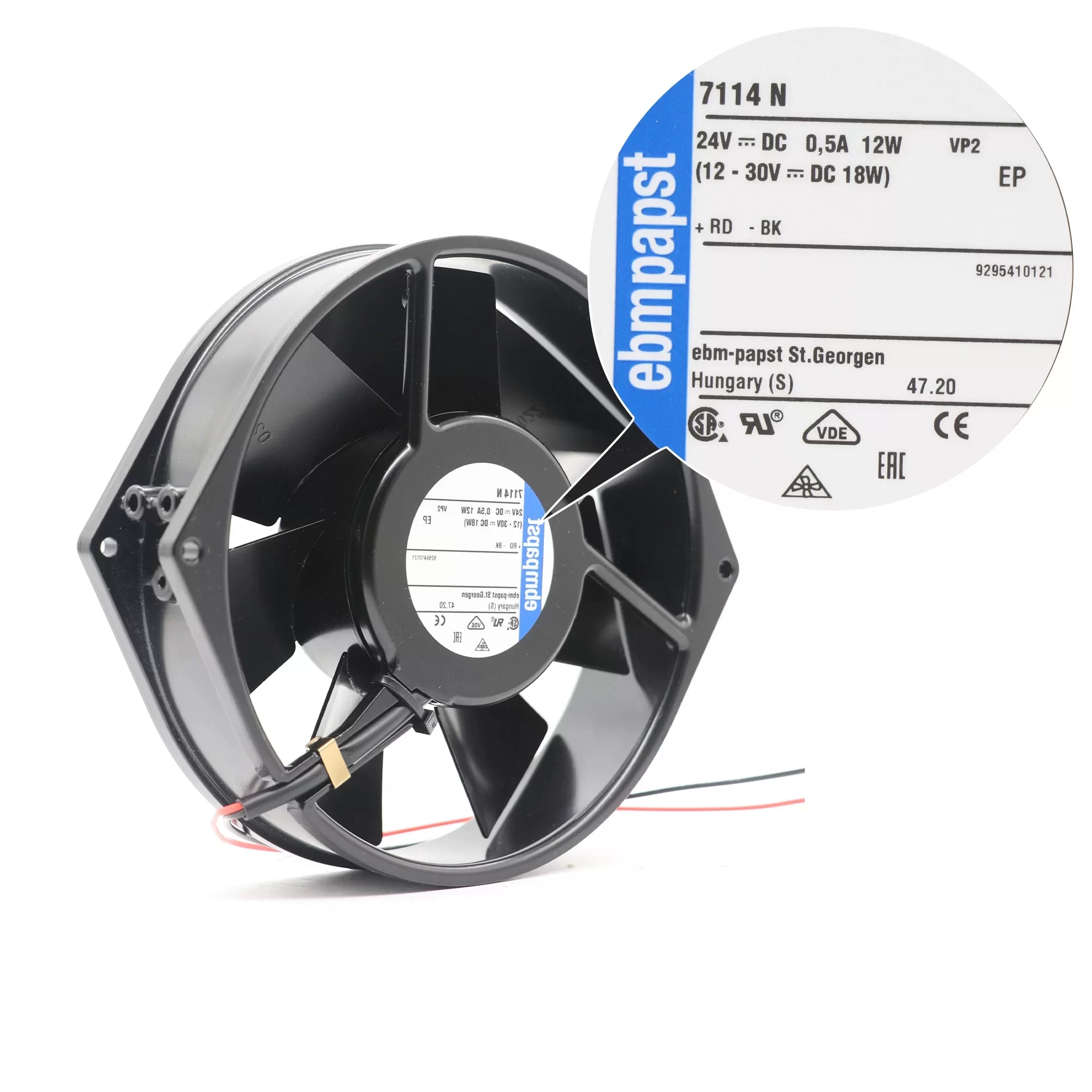

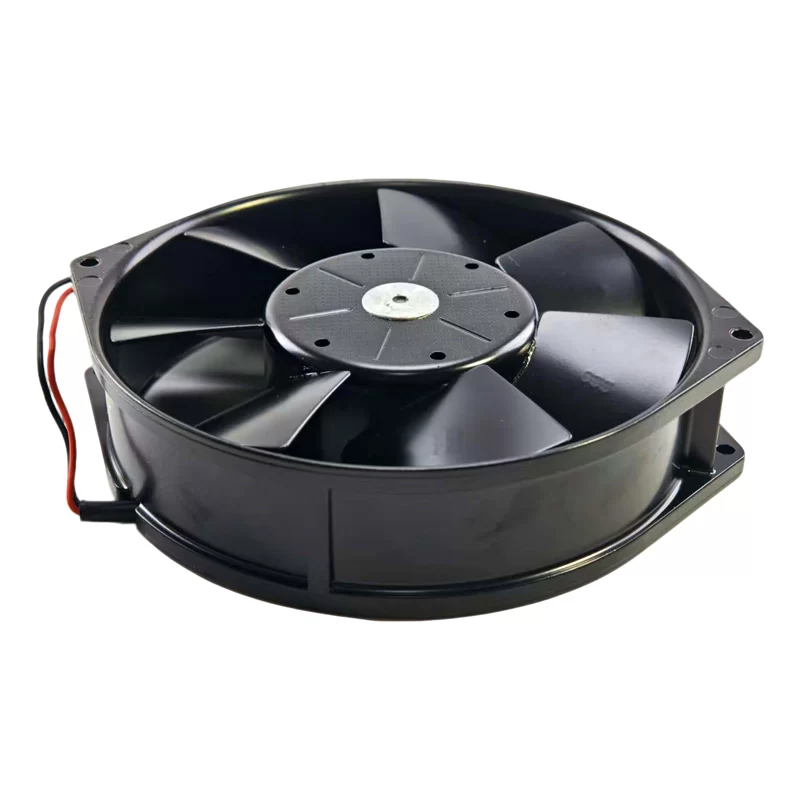

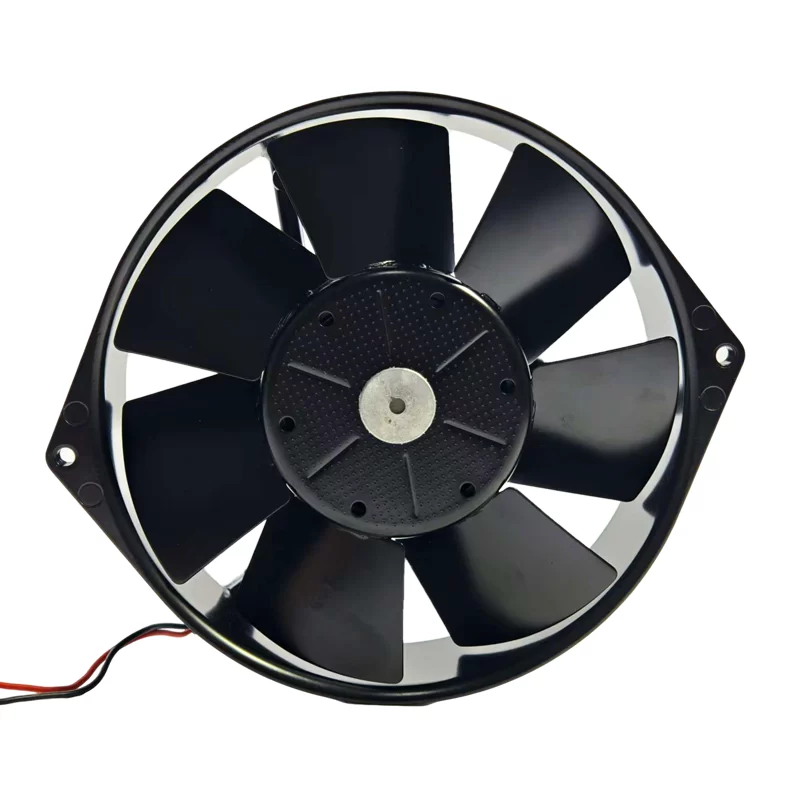

7114N ebmpapst 24V DC Axial Fan

Description

The ebmpapst 7114N is a high-performance DC axial fan with dimensions of 150 x 150 x 38 mm, designed for demanding cooling applications. It operates on a rated voltage of 24V DC, supporting an operating range of 12-30V. The fan draws 0.5 A of current, consuming 12 W of power. It delivers a robust airflow of 308 m³/h at a speed of 2850 RPM, with a noise level of 53 dB(A). The fan features ball bearings with an impressive service life of 80,000 hours at 40°C (37,500 hours at maximum temperature). The housing is made from die-cast aluminum and the impeller from sheet steel, painted black. It is terminated with two-wire leads and includes electronic motor protection against reversed polarity and rotor blockage. It is approved by VDE, CSA, UL, and CE.

7114N Fan Parameters
Manufacturer: ebmpapst
Model: 7114N
Fan Type: DC Axial Fan
Dimensions: 150 x 150 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 12-30 V
Current Rating: 0.5 A
Power Consumption: 12 W
Airflow: 308 m³/h
Speed: 2850 RPM
Noise Level: 53 dB(A)
Weight: 0.62 kg
Bearing Type: Storage Ball bearing

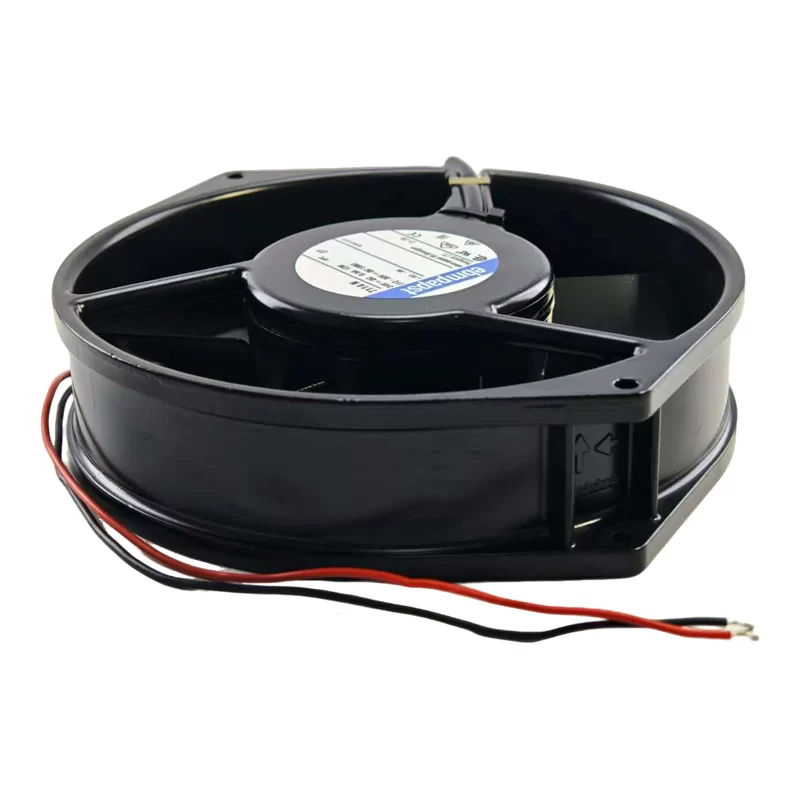

Termination: Cable Leads (AWG 22, stripped and tin-plated)
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, painted black
Operating Temperature: -25 °C to 72 °C
Airflow Direction: Intake over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Motor Protection: Protection against reverse polarity and blocked rotor; Electronic locked-rotor protection
Service Life: L10 at 40 °C 80000 h; L10 at maximum temperature 37500 h
Approval: VDE, CSA, UL, CE
Option: Speed signal

Application
The 7114N fan is suitable for applications requiring high airflow in demanding environments, such as in control cabinets, power supplies, inverters, and other equipment requiring forced ventilation.
