7114NH ebmpapst 19W 24V 0.79A inverter fan

Description

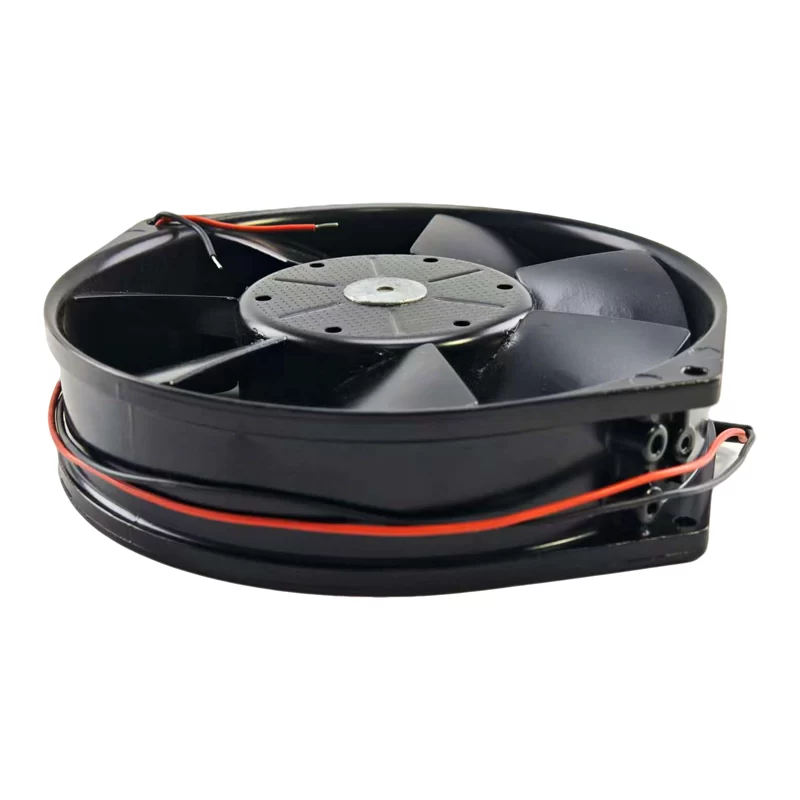

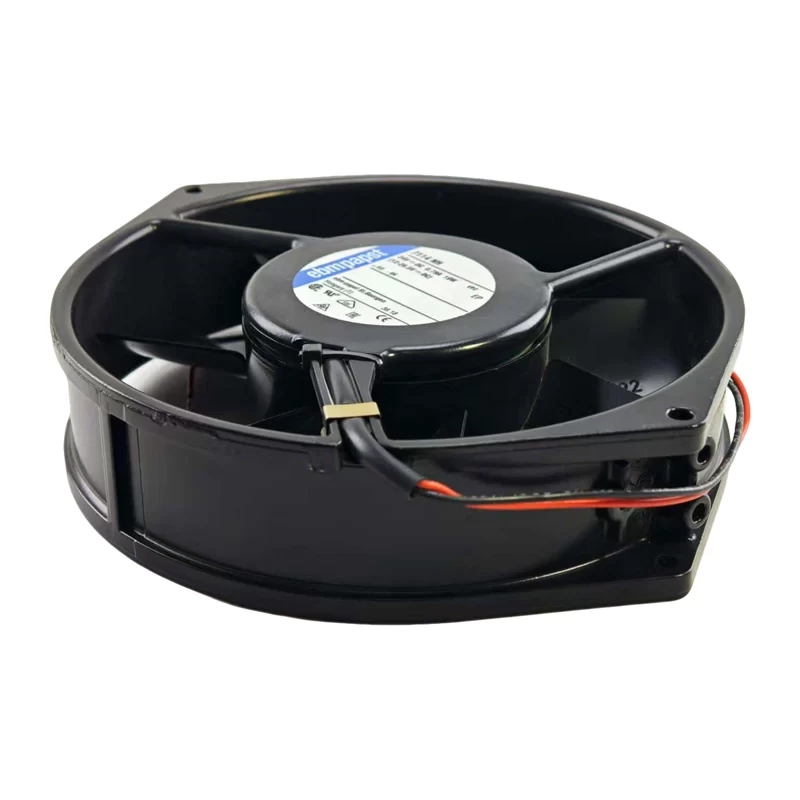

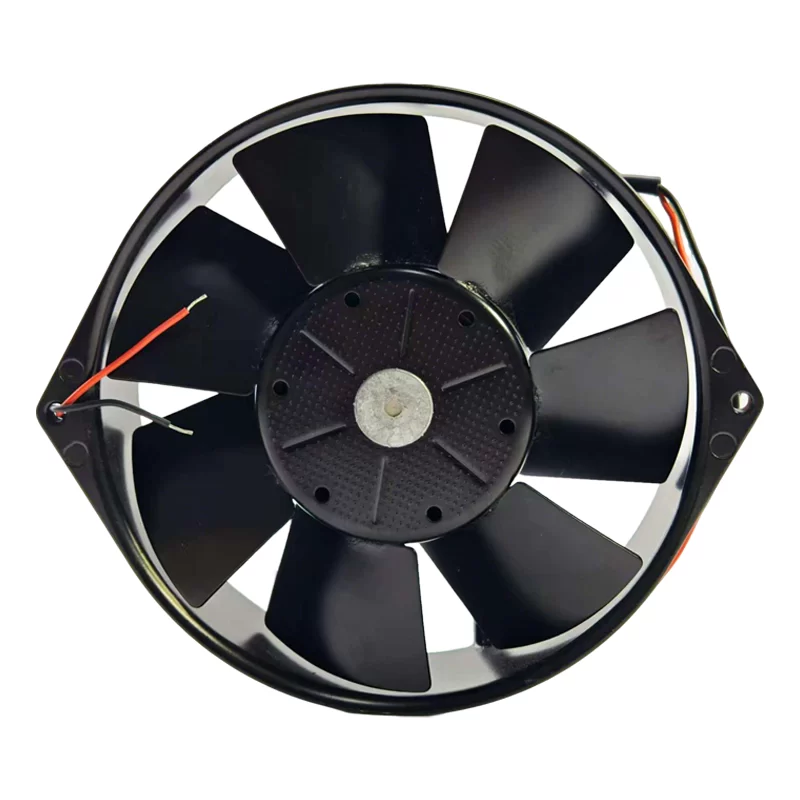

The ebmpapst 7114NH is a high-performance DC axial fan with dimensions of 150 x 150 x 38 mm, designed for demanding cooling applications. It operates on a rated voltage of 24V DC, supporting an operating range of 12-26.5V. The fan draws 0.79 A of current, consuming 19 W of power. It delivers a robust airflow of 420 m³/h at a high speed of 3350 RPM, with a noise level of 59 dB(A). The fan features ball bearings with an impressive service life of 75,000 hours at 40°C (35,000 hours at maximum temperature). The housing is made from aluminum with a grounding lug and the impeller from aluminum. It is terminated with two-wire leads and includes motor protection against reversed polarity and locking. Approved by VDE, CSA, UL, and CE.

7114NH Fan Parameters
Manufacturer: ebmpapst
Model: 7114NH
Fan Type: DC Axial Fan
Dimensions: 150 x 150 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 12-26.5 V
Current Rating: 0.79 A
Power Consumption: 19 W
Airflow: 420 m³/h
Speed: 3350 RPM
Noise Level: 59 dB(A)
Weight: 0.62 kg
Bearing Type: Ball bearings
Termination: 2-Wire Leads
Housing Material: Aluminum (with grounding lug for screw M4 x 8 (TORX))
Impeller Material: Aluminum
Operating Temperature: -25 °C to 72 °C
Motor Protection: Protected against reverse polarity and locking.
Service Life: L10 at 40 °C 75000 h; L10 at maximum temperature 35000 h
Approval: VDE, CSA, UL, CE

Application
The 7114NH fan is suitable for applications requiring high airflow in demanding environments, such as in inverters, server cabinets, high-performance electronics enclosures, and industrial ventilation systems where robust cooling is essential.
