Description

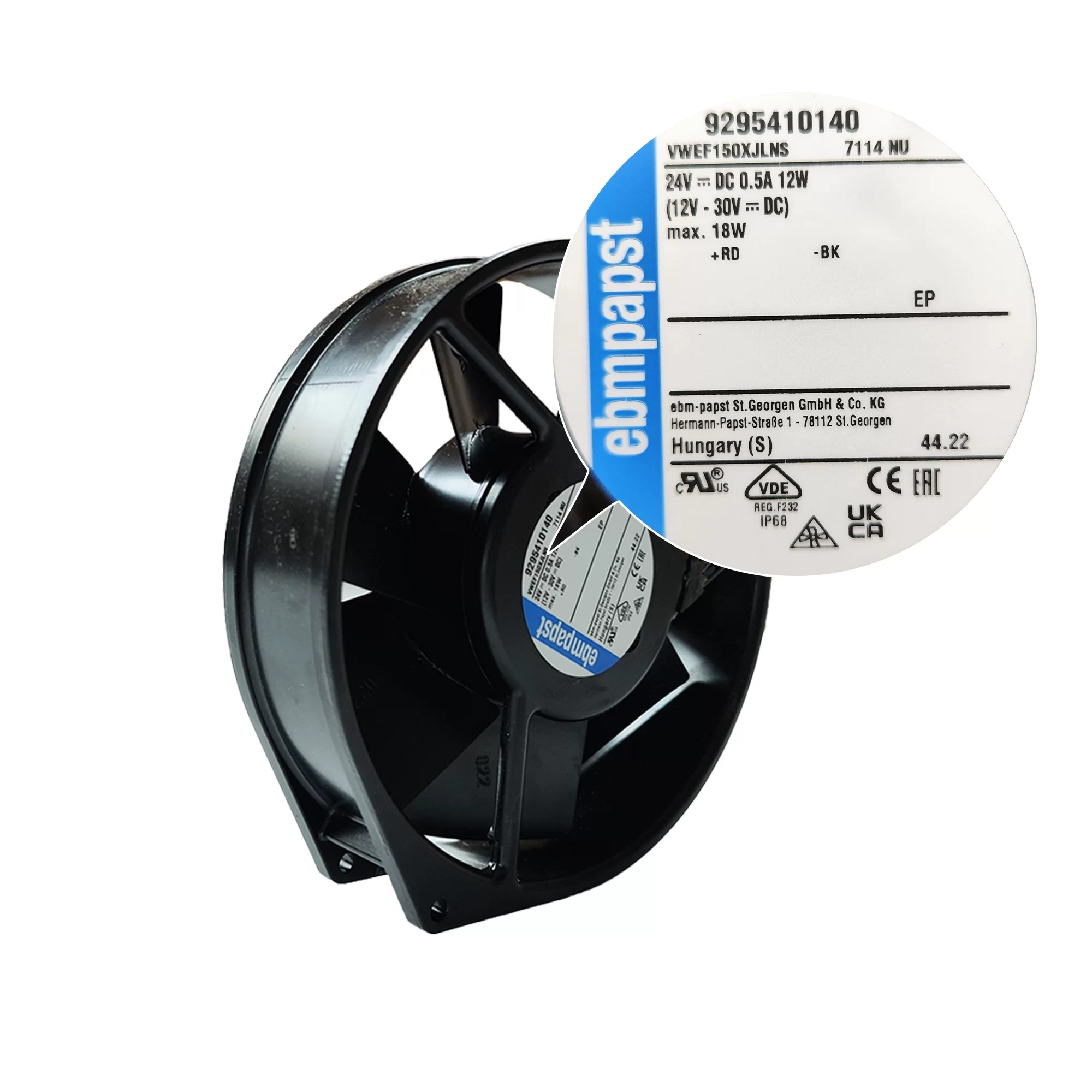

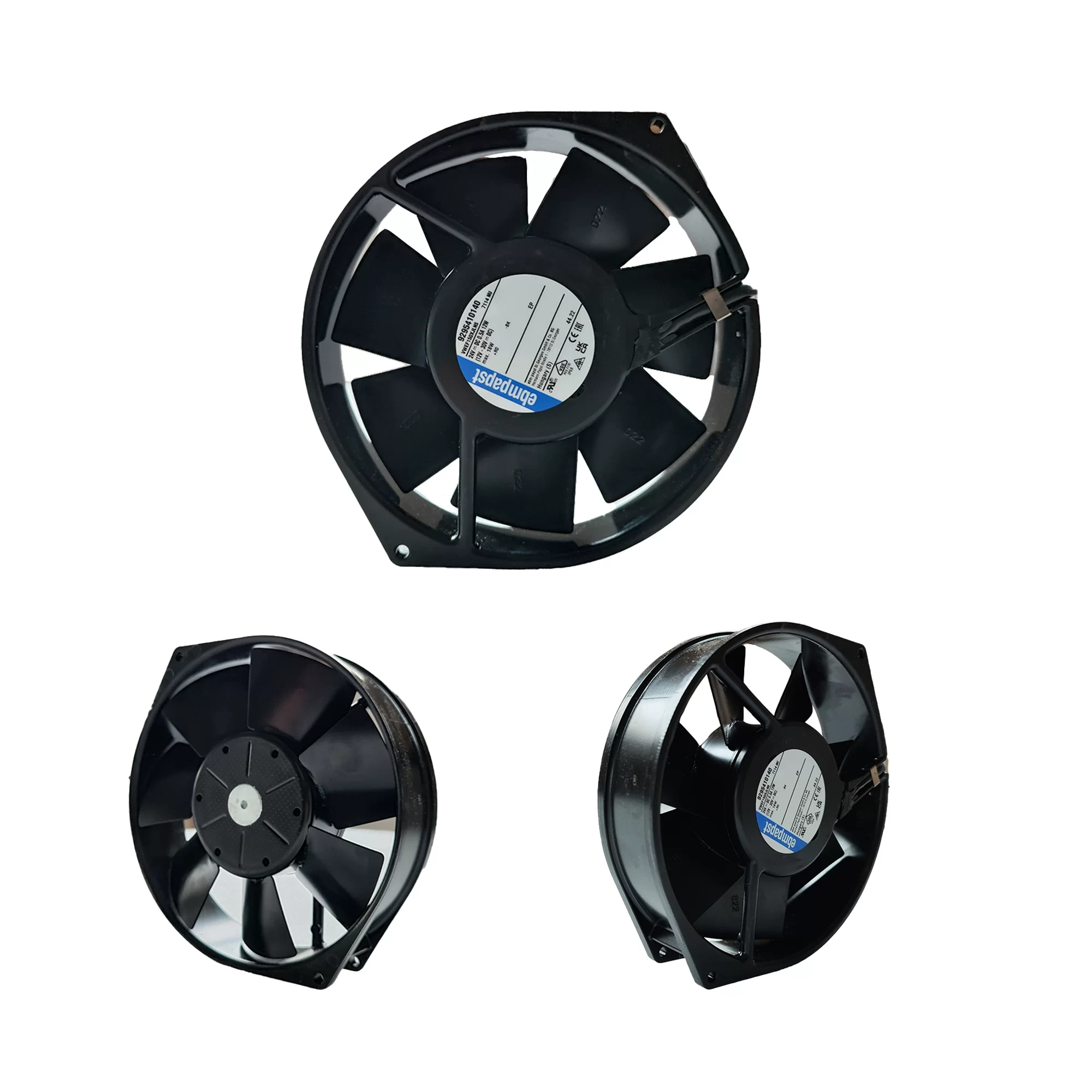

The ebmpapst 7114NU is a DC axial fan measuring 172x150x38mm. It operates on 24 VDC, drawing 0.5 A of current, with a power consumption of 12 W. This fan achieves a speed of 2850 RPM, providing an airflow of 308 m³/h (approximately 181.2 CFM). The noise level is 53 dB(A). It features ball bearings for reliable operation and connects via 2-wire Leads. It has an IP68 ingress protection rating. The housing material is typically metal, and it includes protection against reverse polarity and blocked rotor. This fan is commonly used for cabinet cooling and various industrial applications where high dust and water protection are required.
7114NU Fan Parameters
Model: 7114NU
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 172x150x38 mm
Rated Voltage: 24 VDC
Rated Current: 0.5 A
Power Consumption: 12 W
Speed: 2850 RPM
Airflow: 308 m³/h (181.2 CFM)
Noise Level: 53 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Ingress Protection: IP68
Operating Temperature: -25 to 72°C
Expected Life L10 at 40°C: 80000 h (for 7114N, similar models)
Expected Life L10 at Maximum Temperature: 37500 h (for 7114N, similar models)
Motor Protection: Protected against reverse polarity and blocked rotor
Housing Material: Metal (Aluminum)
Impeller Material: Sheet steel, painted black
Approval: VDE, CSA, UL (for 7114N/NH, similar models)
Weight: 0.7 kg (700 g)
Application: Cabinet cooling, industrial applications.
