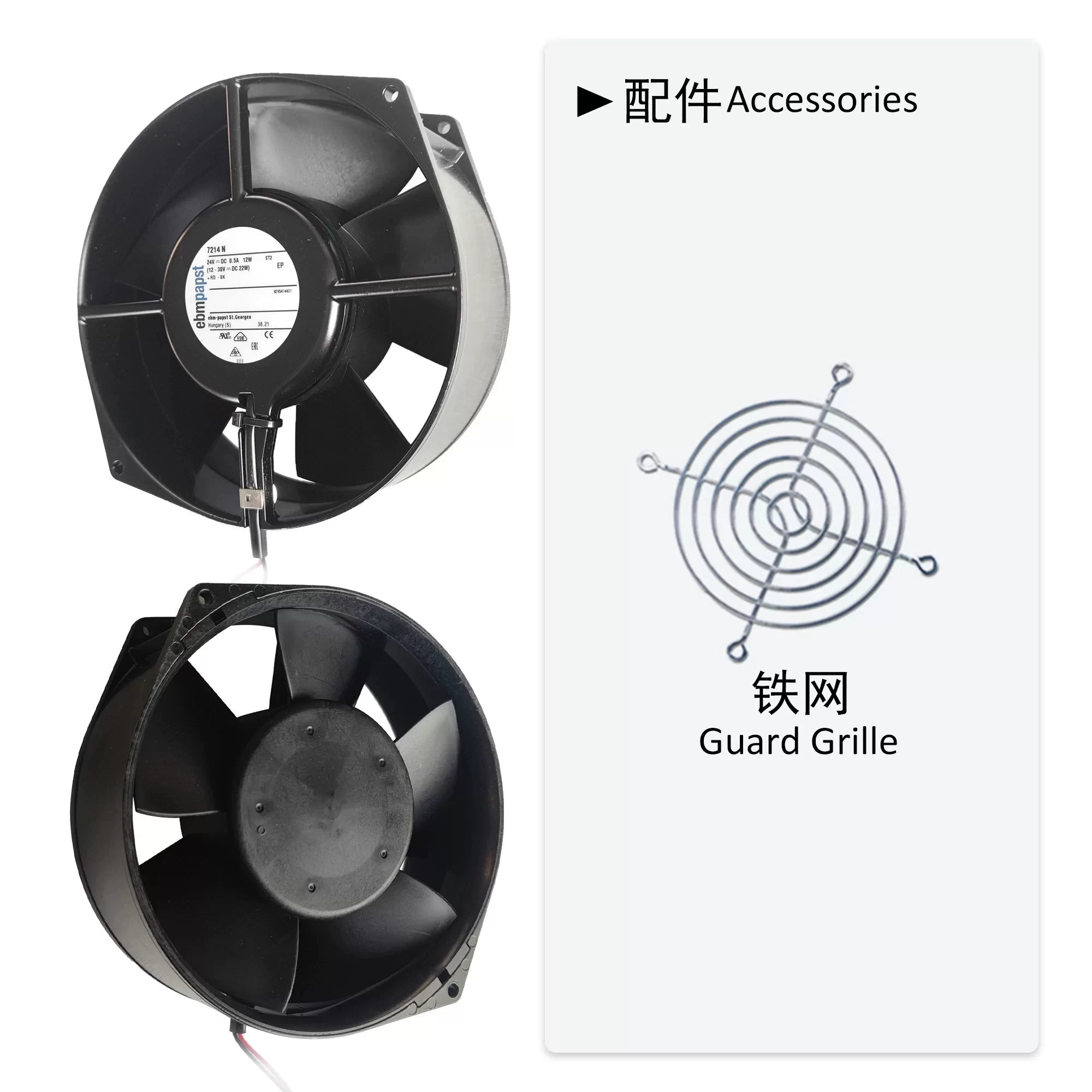

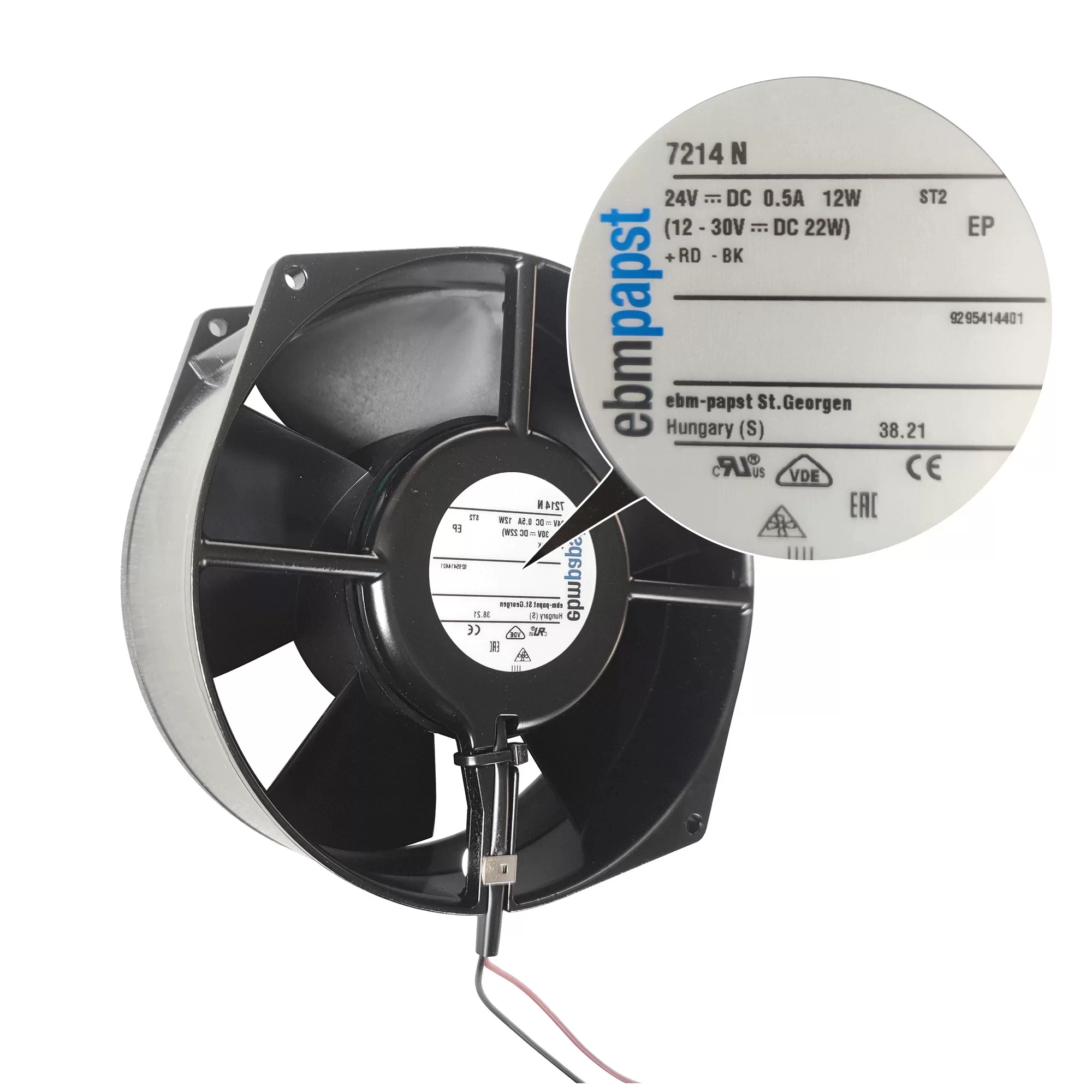

7214N ebmpapst 24V DC Axial Fan

Description

The ebmpapst 7214N is a compact DC axial fan designed for efficient cooling. It measures Ø150 x 55 mm and operates on a nominal voltage of 24 VDC, with a wide nominal voltage range from 12 VDC to 30 VDC. The fan achieves a speed of 3050 RPM, delivers an airflow of 360 m³/h, and has a power consumption of 12.0 W. It produces a sound power level of 6.2 B and a sound pressure level of 53 dB(A).

Constructed with a glass-fiber reinforced PA plastic impeller and a robust die-cast aluminum housing, the 7214N ensures durability. It utilizes reliable ball bearings for long-term operation. The airflow direction is exhaust over struts, and the fan rotates counterclockwise when viewed toward the rotor. It features comprehensive motor protection, including defense against reverse polarity and electronic locked-rotor protection. The fan is designed to operate within a wide ambient temperature range of -25 °C to 72 °C. It is supplied with AWG 22, TR 64 leads that are stripped and tin-plated. The service life is rated at 80000 hours at 40 °C and 37500 hours at maximum temperature. This product holds various approvals, including VDE, CSA, UL, and CE.

7214N Fan Parameters
Model: 7214N
Manufacturer: ebmpapst
Type: DC Axial Fan
Nominal Voltage: 24 V DC
Nominal voltage range: 12 .. 30 V DC
Speed: 3050 RPM
Power consumption: 12.0 W
Min. ambient temperature: -25 °C
Max. ambient temperature: 72 °C
Air flow: 360 m³/h
Sound power level: 6.2 B
Sound pressure level: 53 dB(A)
Impeller material: Glass-fiber reinforced PA plastic
Dimensions: Ø 150 x 55 mm
Housing material: Die-cast aluminum
Airflow direction: Exhaust over struts
Direction of rotation: Counterclockwise, viewed toward rotor
Motor bearing: Ball bearing
Service life L10 at 40 °C: 80000 h
Service life L10 at maximum temperature: 37500 h
Cable: Leads AWG 22, TR 64, stripped and tin-plated
Motor protection: Protection against reverse polarity and blocked rotor; Electronic locked-rotor protection
Approval: VDE, CSA, UL, CE
Weight: 0.725 kg
Application: General cooling applications, electronic equipment, small appliances.
