Description

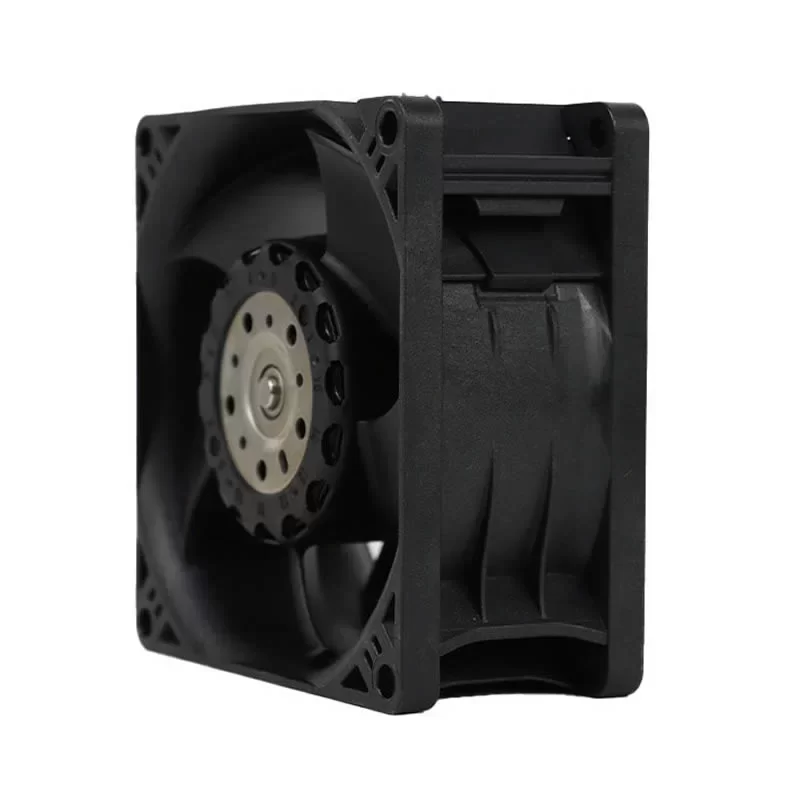

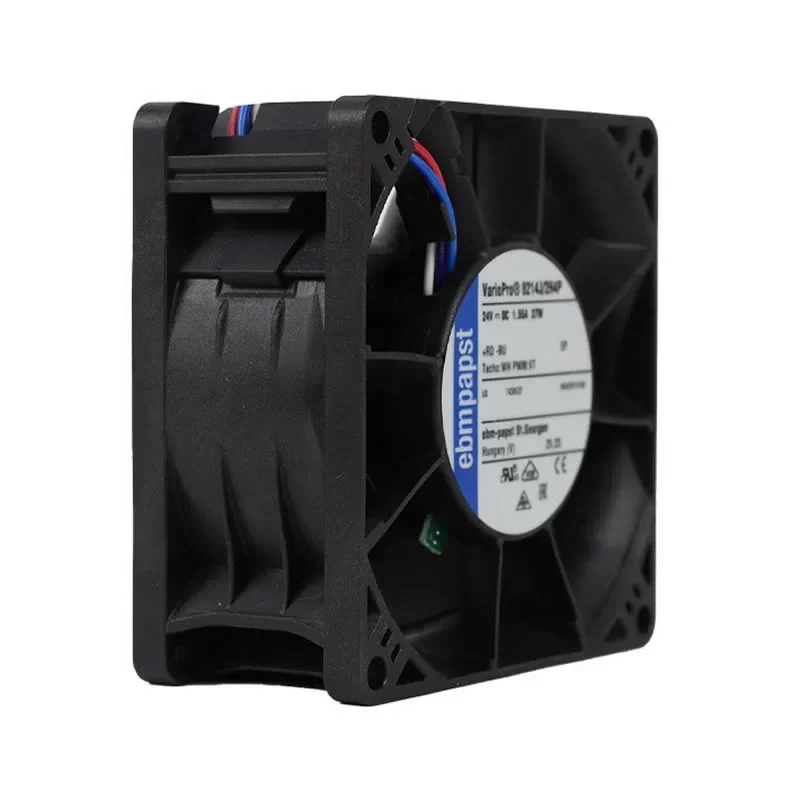

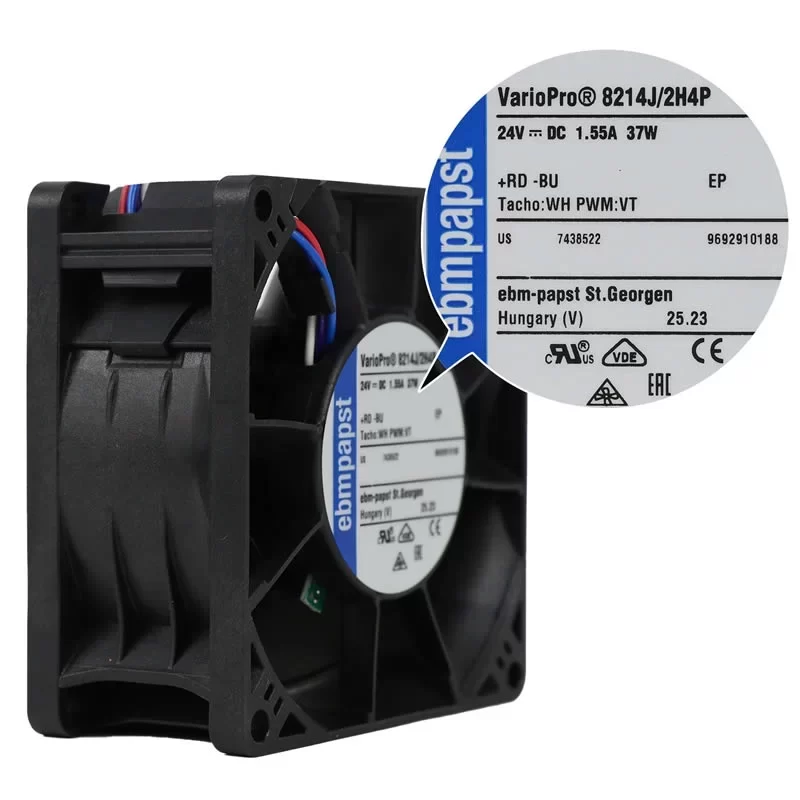

The ebmpapst 8214J/2H4P is a high-performance 24 VDC DC Axial Fan with dimensions of 80 x 80 x 38 mm, specifically engineered for demanding thermal management in industrial frequency converters and electrical control cabinets. Driven by a robust brushless DC motor with integrated electronic speed control, this unit provides a precise power consumption of 37 W and a nominal current of 1.55 A at 24 VDC. Operating at a peak speed of 14,000 RPM, it delivers a powerful airflow of 220.0 m³/h for efficient heat extraction. Constructed with a high-strength plastic housing and impeller featuring a precision ball bearing system, this 0.21 kg unit provides a dependable air-moving solution with a noise level of 71.0 dB(A) and IP20 protection, ensuring maximum cooling performance and long-term mechanical stability for high-power inverters, variable frequency drives (VFD), and integrated electrical switchgear systems at the end.
8214J/2H4P Fan Parameters
Model Number: 8214J/2H4P
Manufacturer: ebmpapst
Type: DC Axial Fan
Product Code: 9692910188 (VWC0080JUFCS)
Dimensions: 80.0 x 80.0 x 38.0 mm
Weight: 0.21 kg
Bearing Type: Ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 12.0 – 27.6 VDC
Nominal Power Consumption: 37 W
Nominal Current Draw: 1.55 A
Max. Power Consumption: 39.0 W (at 27.6 VDC)
Starting Current: 6000 mA
Rated Speed: 14,000 RPM
Max. Air Flow: 129.49 CFM (220.0 m³/h / 3.67 m³/min)
Max. Static Pressure: 72.40 mmH₂O (710 Pa / 2.85 inH₂O)
Working Air Flow: 135.0 m³/h
Static Pressure Increase: 330 Pa
Control Input: PWM (1 kHz – 30 kHz)
Speed Signal: Tacho signal (2 pulses/revolution)
Motor Protection: Locked-rotor and reverse polarity protection
Insulation Class: Class E
Electrical Hookup: Lead wires (AWG 22)
Number of Blades: 5
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts
Housing/Impeller Material: Plastic
Operation Mode: S1 (Continuous operation)
Sound Pressure Level: 71.0 dB(A)
Service Life (L10): 50,000 h (at 40 °C)
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +80 °C
Degree of Protection: IP20
Standard Compliance: EN 60335; CE
Approval Agency: VDE; CSA; UL; EAC
Application
The ebmpapst 8214J/2H4P DC fan is primarily utilized in industrial frequency converters, power inverters, and electrical control cabinet heat dissipation systems.
