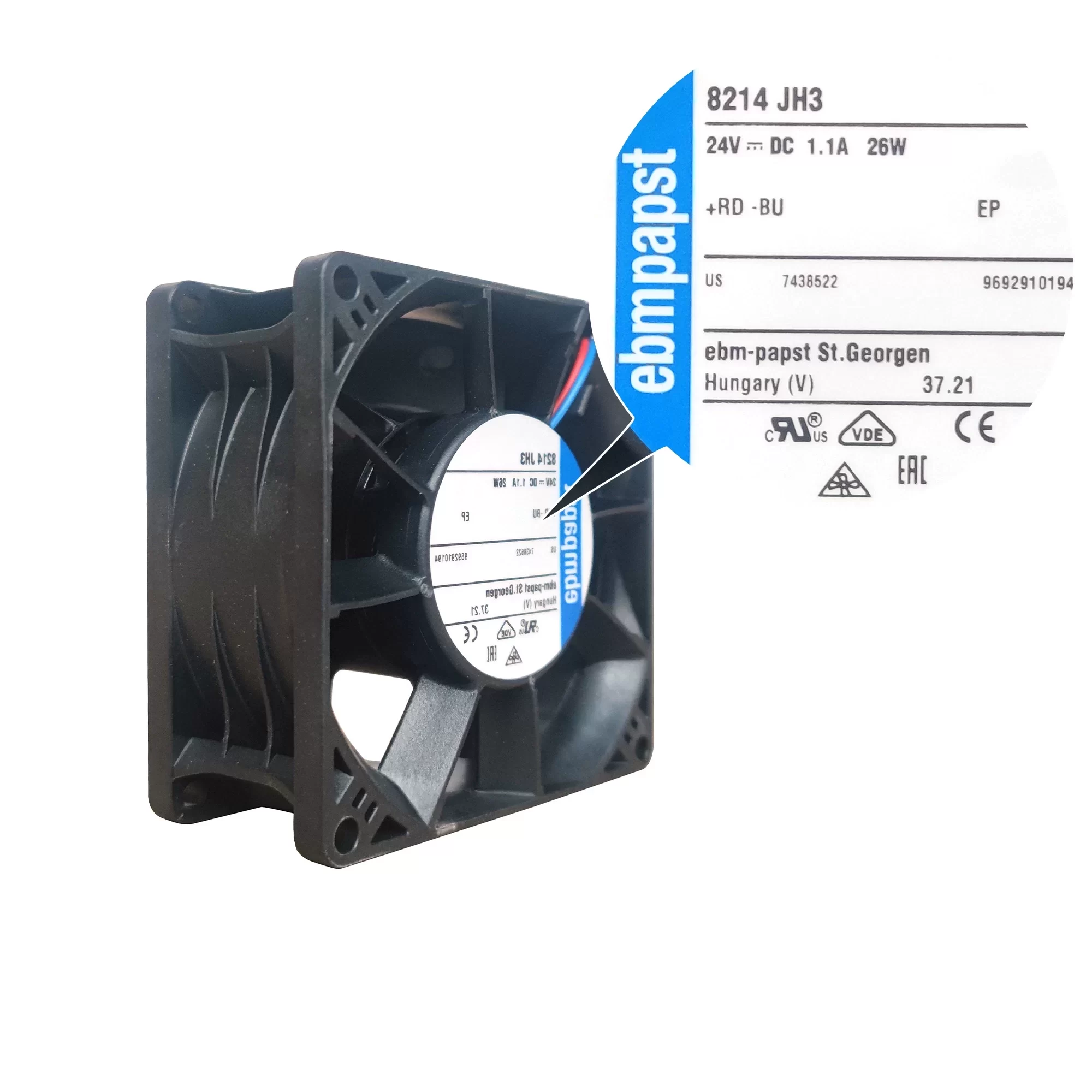

8214JH3 ebmpapst 24V DC Axial Fan

Description

The ebmpapst 8214JH3 is a high-performance 24V DC axial fan with dimensions of 80x80x38mm, designed for efficient cooling in compact applications. Operating at 24VDC within a 12-27.6V range, it draws 1.1A of current and consumes 26W of power. This fan delivers a robust airflow of 190m³/h (112CFM) and a static pressure of 490Pa at a high speed of 12000RPM, with a noise level of 66dB(A). Featuring durable ball bearings and 2 wire leads, it’s built with a plastic frame and impeller, ensuring reliable performance within an ambient temperature range of -20 to 70°C, with a typical service life of 55,000 hours at 40°C. It is certified by CE, EAC, UL, VDE, and CSA.

8214JH3 Fan Parameters
Manufacturer: ebmpapst
Model: 8214JH3
Fan Type: Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 27.6 VDC
Current Rating: 1.1 A
Power Consumption: 26 W
Airflow: 190 m³/h (112 CFM)
Static Pressure: 490 Pa
Speed: 12000 RPM
Noise Level: 66 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 55,000 Hours @ 40°C
Frame Material: Plastic
Blade Material: Plastic
IP Rating: Not specified
Weight: 0.2 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for various high-performance cooling applications in servers, telecommunications equipment, power supplies, and other compact electronic systems requiring high airflow and static pressure.
