8214JN ebmpapst 24V 10.8W axial fan

Description

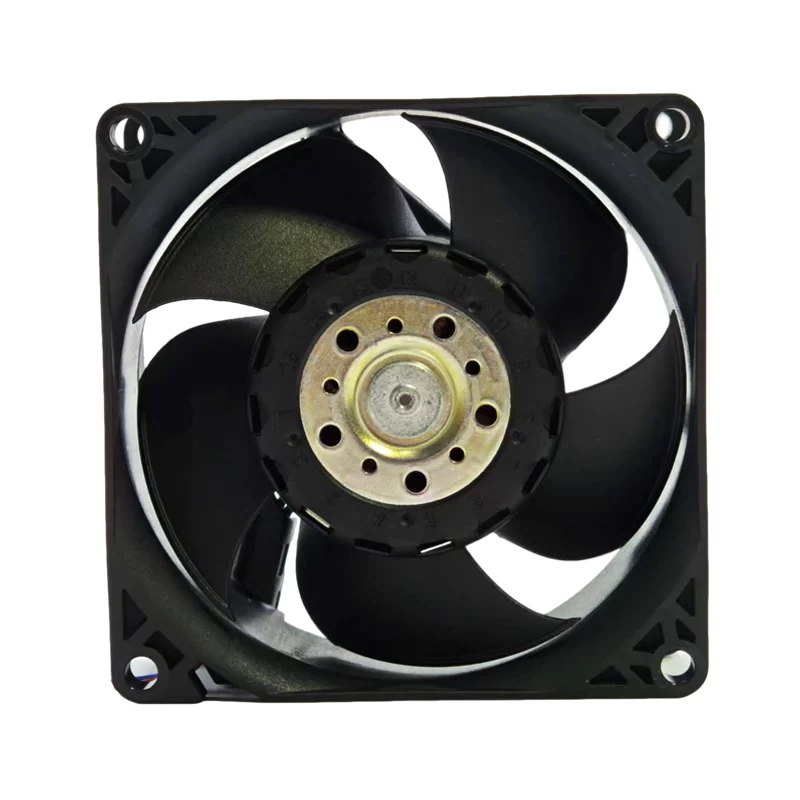

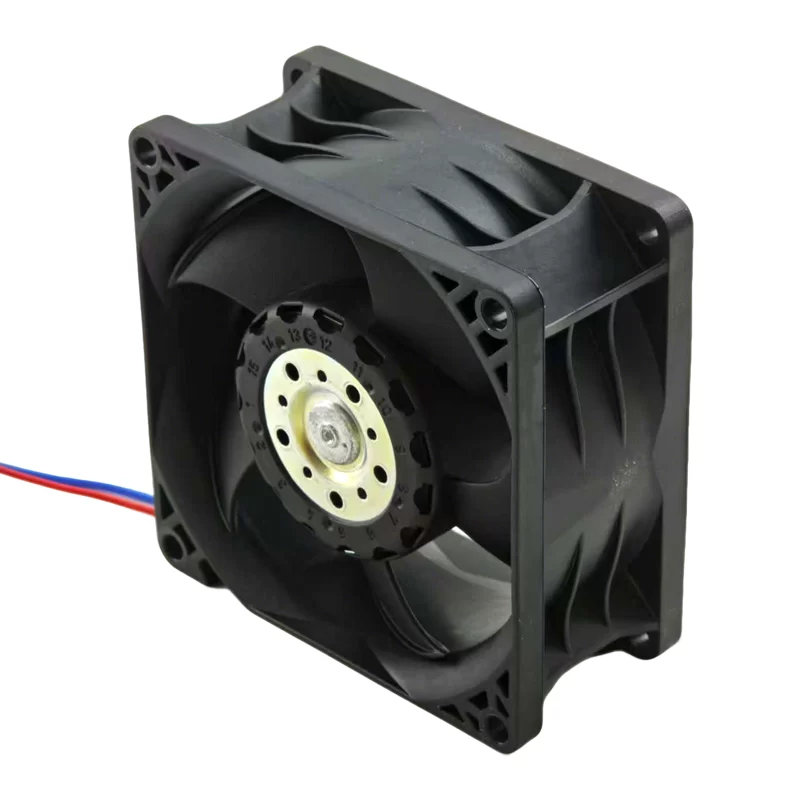

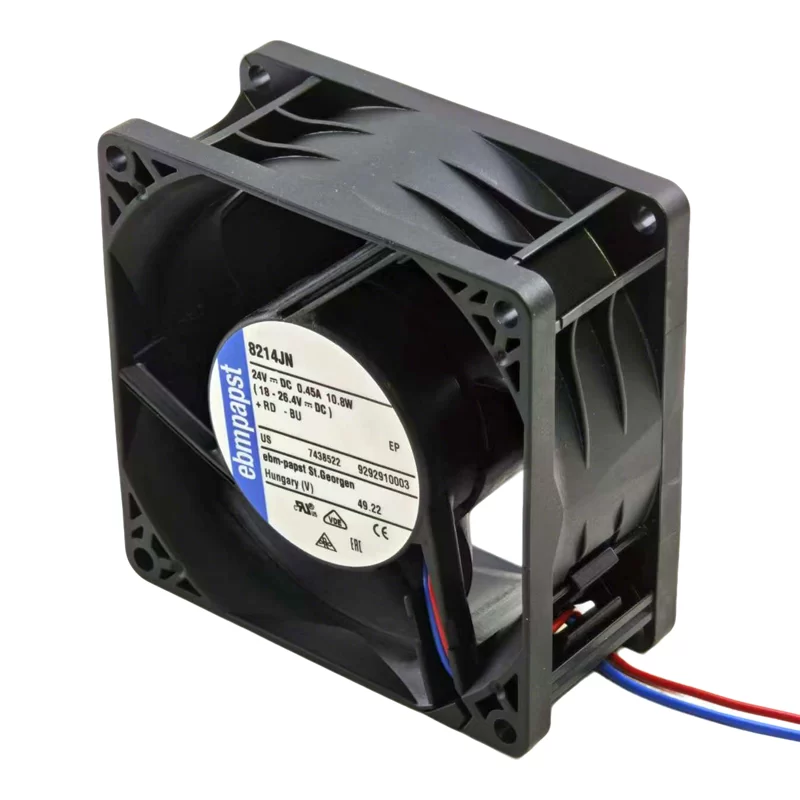

The ebmpapst 8214JN is a high-performance DC axial fan with dimensions of 80 x 80 x 38 mm. It operates on a rated voltage of 24V DC, within a range of 18-26.4V, drawing 0.45 A of current and consuming 10.8 W of power. The fan runs at a high speed of 8400 RPM, delivering a powerful airflow of 132 m³/h (77.7CFM) with a noise level of 55 dB(A). It features a durable ball bearing with a service life of 62,500 hours at 40°C. The housing is made from glass-fiber reinforced PBT plastic, and the impeller from glass-fiber reinforced PA plastic. It is terminated with AWG 24 cable leads and includes both reverse polarity and electronic locked-rotor protection.

8214JN Fan Parameters
Manufacturer: ebmpapst
Model: 8214JN
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 18-26.4 V
Current Rating: 0.45 A
Power Consumption: 10.8 W (11 W)
Airflow: 132 m³/h
Speed: 8400 RPM
Noise Level: 55 dB(A)
Weight: 0.16 kg
Bearing Type: Ball Bearing
Termination: 2-Wire Leads (AWG 24, TR 64, stripped and tin-plated)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 °C to 70 °C
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Motor Protection: Protection against reverse polarity and blocked rotor; With electronic locked-rotor and overload protection
Service Life: L10 at 40 °C 62500 h; L10 at maximum temperature 32500 h
Approval: CE
Option: Speed signal

Application
The 8214JN fan is suitable for applications that require high-density cooling and robust performance in a compact form factor, such as in servers, telecommunications equipment, and industrial control systems.
