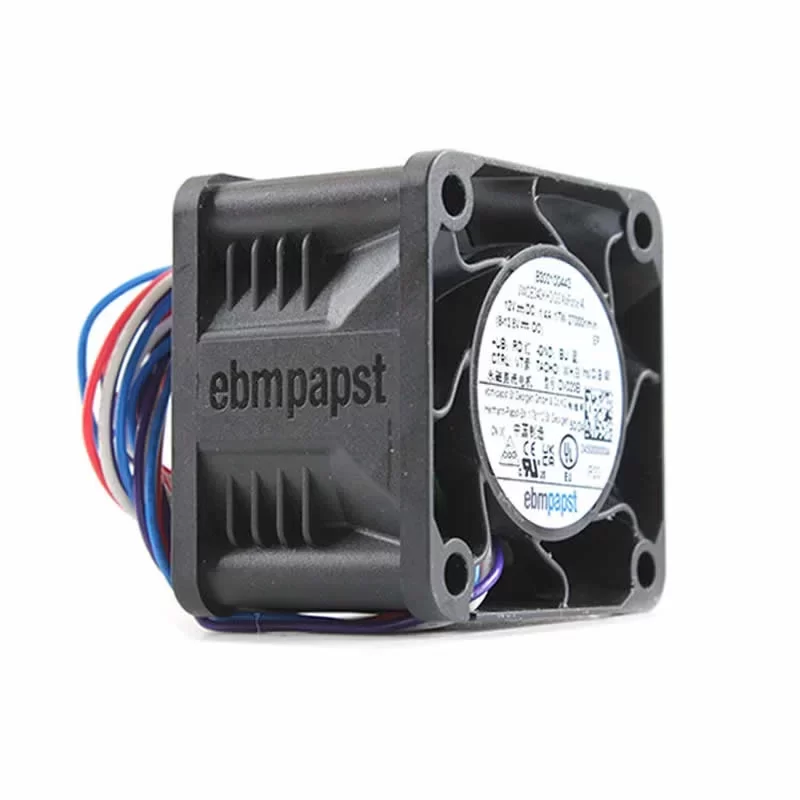

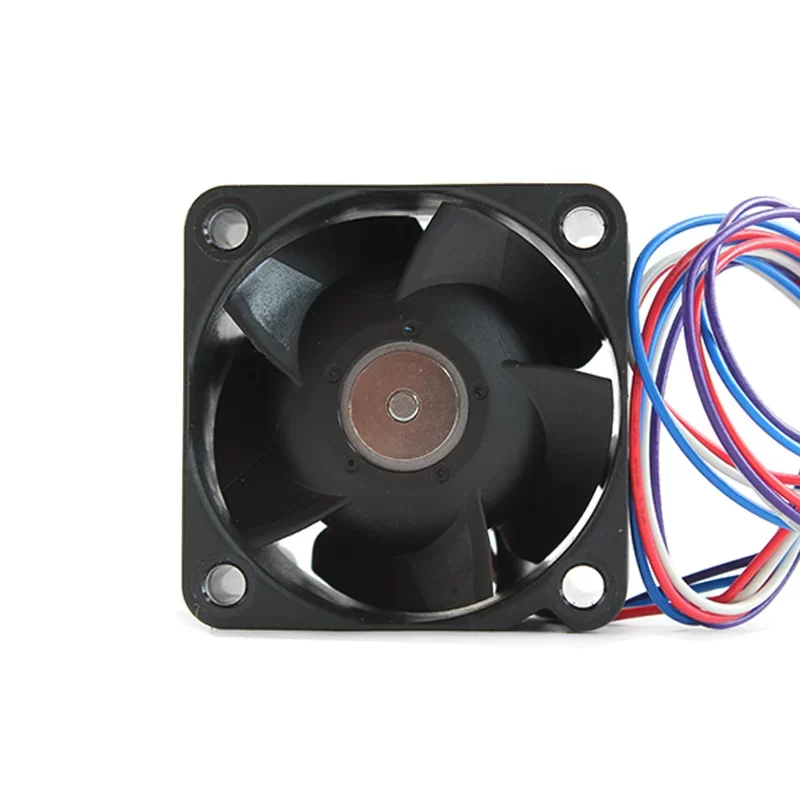

8300100443 VWCE040KHDGS ebmpapst 12V 40mm 4028 DC Axial Fan

Description

The ebmpapst 8300100443 VWCE040KHDGS is a professional-grade, high-velocity DC Axial Fan designed for mission-critical cooling in high-density environments like 1U servers and network switches. Operating on a nominal 12 VDC supply (8.0 – 13.8 VDC range), this unit is powered by a high-torque Brushless DC Motor that drives a 5-blade impeller to an extraordinary speed of 27000 RPM. Within its high-performance 40 x 40 x 28 mm footprint, it delivers a massive air flow of 56 m³/h (33 CFM) and generates significant static pressure to overcome internal system resistance. Featuring a 4-wire interface for precise PWM speed control and Tacho signal feedback, the VWCE040KHDGS provides an intelligent and robust thermal management solution with IP20 protection and dual ball bearings for 24/7 industrial reliability.

8300100443 VWCE040KHDGS Fan Parameters
Manufacturer: ebmpapst
Part Number (Ident no.): 8300100443
Model Number: VWCE040KHDGS
Motor Design: Brushless DC Motor
Phase: DC
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Nominal Voltage Range: 8.0 – 13.8 VDC
Dimensions: 40 x 40 x 28 mm
Impeller Size: 40 mm
Number of Blades: 5

[Electrical Data]
Nominal Speed: 27000 RPM
Power Consumption: 17 W
Current Draw: 1.4 A
Termination: 4-wire (PWM + Tacho signal)
Motor Protection: Reverse polarity and locked-rotor protection
Insulation Class: E

[Performance & Acoustics]
Max. Air Flow: 56 m³/h (33 CFM)
Max. Static Pressure: 850 Pa (3.41 inAq)
Sound Pressure Level: 65 dB(A)
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: Exhaust over struts

[Materials & Construction]
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PBT plastic
Motor Bearing: High-precision Dual Ball Bearings
Mounting: 4 corner holes (Ø 3.5 mm)

[Reliability & Protection]
Degree of Protection: IP20
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Service Life (L10 at 40 °C): 70000 h
Standard Compliance: VDE, UL, CSA, CE

Application
The ebmpapst VWCE040KHDGS is specifically engineered for high-performance 1U server racks and high-end telecommunications hardware where its 40 x 40 x 28 mm envelope and 27000 RPM performance are required to deliver a critical 56 m³/h airflow through dense heat sinks, while its 4-wire PWM intelligence and 17 W brushless DC motor ensure precise thermal regulation and high-static pressure capability in mission-critical 12 VDC electronic cooling modules.
