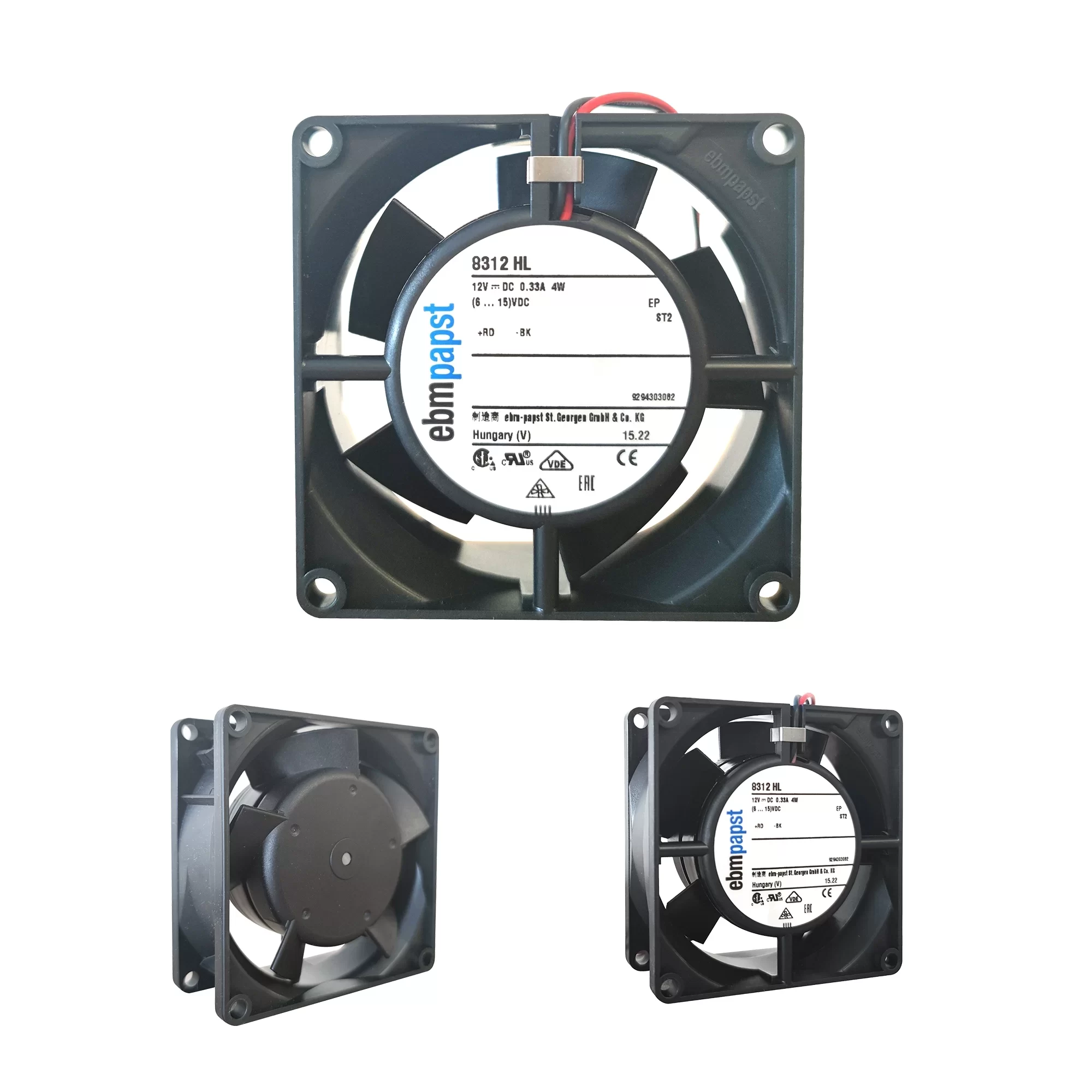

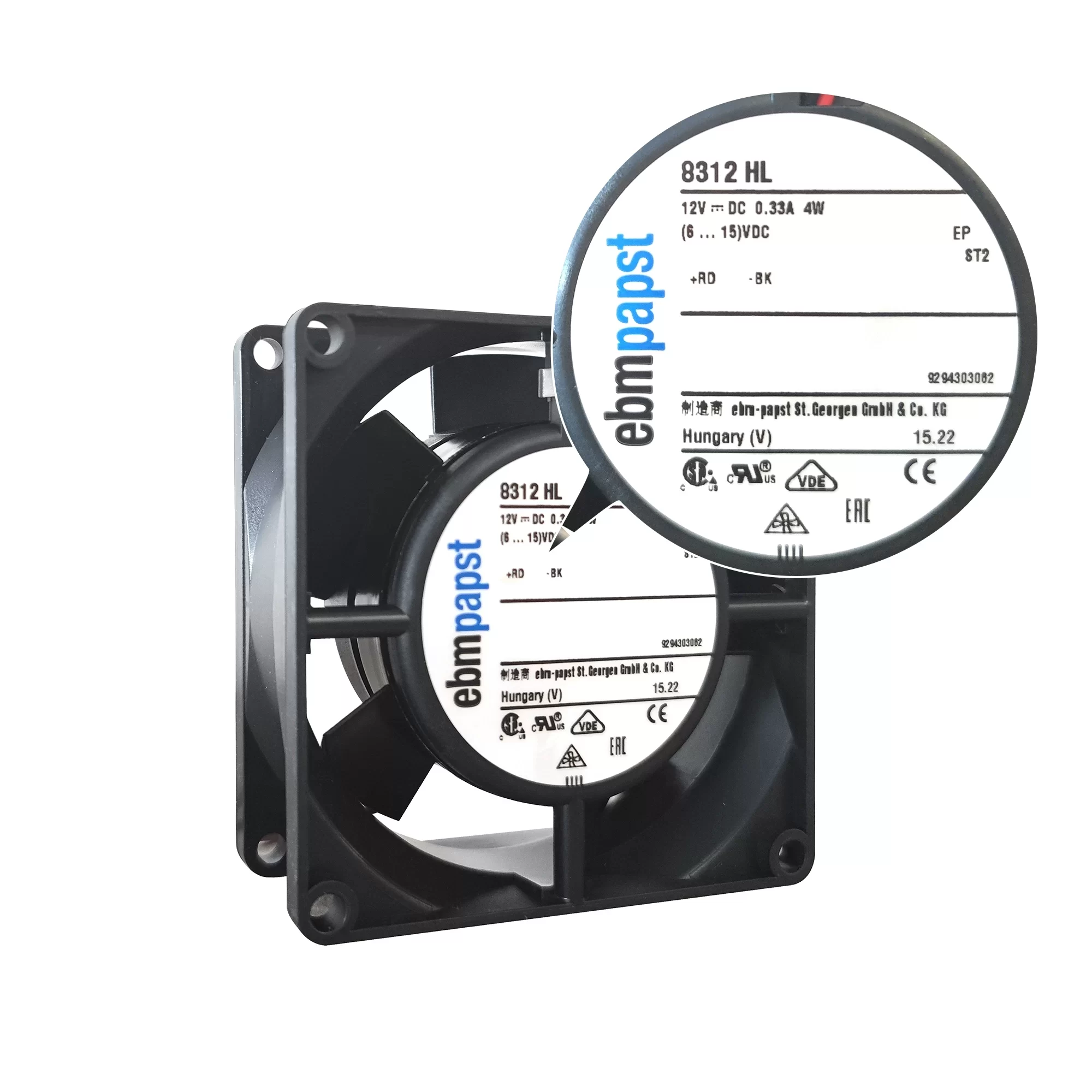

8312HL ebmpapst 12V DC Axial Fan

Description

The ebmpapst 8312HL is a DC Axial Fan measuring 80x80x32mm. It operates at a nominal voltage of 12VDC with a wide operating voltage range of 6 to 15VDC. This fan draws 0.33A of current, consumes 4.0W of power, achieving a speed of 4200 RPM, and provides an airflow of 67 m³/h (39.4 CFM) at a noise level of 43 dB(A). It is built with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. The fan features a durable ball bearing system and includes protection against reverse polarity and a blocked rotor. It is a reliable solution for cooling high-performance electronic components in servers, telecommunication devices, and other industrial applications.

8312HL Fan Parameters
Model: 8312HL
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 80 x 80 x 32 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 15 VDC
Current Draw: 0.33 A
Power Input: 4.0 W
Fan Speed: 4200 RPM
Airflow: 67 m³/h (39.4 CFM)
Noise Level: 43 dB(A)
Bearing Type: Ball Bearing
Weight: 0.170 kg
Termination: 2 Wire Leads
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -20 to 75 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling of high-performance electronic components in servers and industrial applications.
