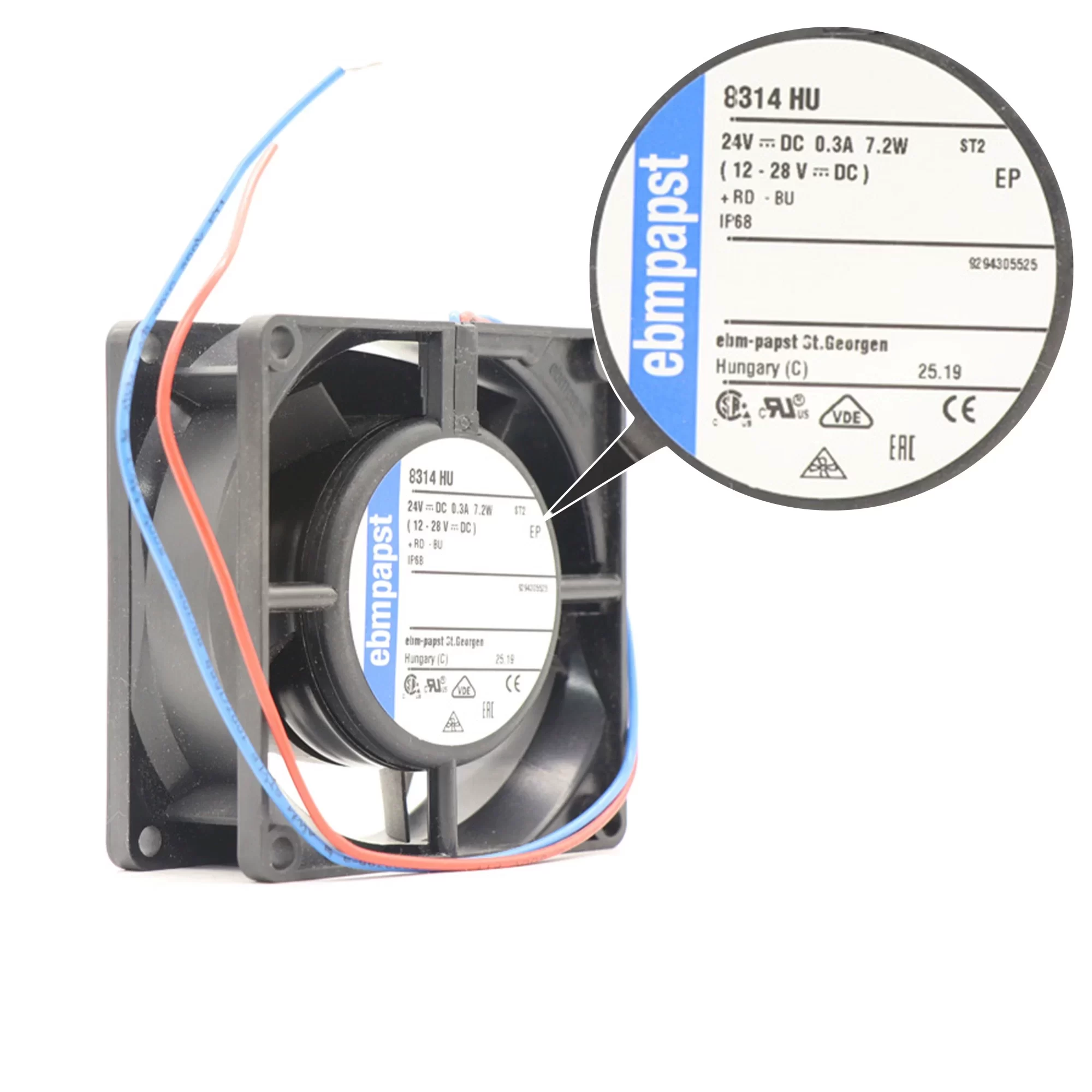

8314HU ebmpapst 24V DC Axial Fan

Description

The ebmpapst 8314HU is a robust 24V DC axial fan with dimensions of 80x80x32mm, designed for cooling in demanding environments. Operating at 24VDC within a 12-28V range, it draws 0.3A of current and consumes 7.2W of power. This fan delivers a static pressure of 138Pa at a speed of 5000RPM. Featuring durable ball bearings and 2 wire leads, it’s built with a plastic frame and impeller, and boasts an IP68 ingress protection rating, ensuring reliable performance even in harsh conditions within an ambient temperature range of -20 to 70°C.

8314HU Fan Parameters
Manufacturer: ebmpapst
Model: 8314HU
Fan Type: Axial Fan
Dimensions: 80 x 80 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 28 VDC
Current Rating: 0.3 A
Power Consumption: 7.2 W
Airflow: Not specified
Static Pressure: 138 Pa
Speed: 5000 RPM
Noise Level: Not specified
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 55,000 Hours (at 40°C)
Frame Material: Plastic (PBT, fiberglass reinforced)
Blade Material: Plastic (PA, fiberglass reinforced)
IP Rating: IP68
Weight: 0.21 kg
Application: This ebmpapst DC axial fan is suitable for cooling applications in industrial equipment, outdoor enclosures, and other systems requiring robust dust and water protection, along with efficient air movement.
