8314NHH ebmpapst 24V DC Axial Fan 80x80x32mm

$22.43

SKU: 8314NHH
Tag:

Description

The ebmpapst 8314NHH is a high-performance DC Axial Fan with dimensions of 80×80×32 mm from the S-Panther 8300 N series. It is rated for a nominal voltage of 24 VDC, operating within a voltage range of 12 VDC to 28 VDC. Key performance parameters include a speed of 6300 RPM, an airflow of 95 m3/h, and a power consumption of 5.0 W. It features a low noise level of 48 dB(A) and a robust design with glass-fiber reinforced plastic housing and impeller. This fan is ideal for cooling highly integrated electronics in confined installation spaces.

8314NHH Fan Parameters
Model: 8314NHH
Manufacturer: ebmpapst
Fan Type: DC Axial Fan
Dimensions: 80×80×32 mm
Nominal Voltage: 24 VDC
Voltage Range: 12 VDC to 28 VDC
Speed: 6300 RPM
Air Flow: 95 m3/h
Power Consumption: 5.0 W
Noise Level: 48 dB(A)
Sound Power Level: 6.0 B
Weight: 0.16 kg
Min. Ambient Temperature: −20 ∘C
Max. Ambient Temperature: 75 ∘C
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Glass-fiber reinforced PBT plastic
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Bearing: Ball bearing
Service Life L10 at 40 ∘C: 72500 h
Service Life L10 at maximum temperature: 27500 h
Cable: With leads AWG 26, TR 64
Part no.: 9292910104

Application
This fan is designed for effective cooling in applications requiring a compact and reliable solution. It is typically used for cooling high-density electronic equipment, small control cabinets, and devices with limited installation space.

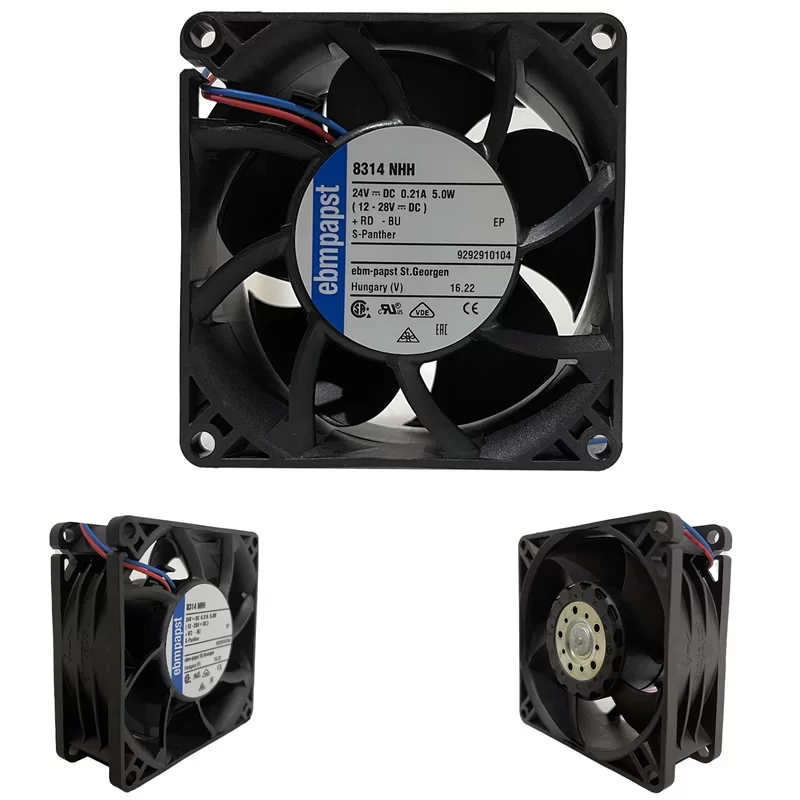

8314NHH ebmpapst 24V DC Axial Fan 80x80x32mm

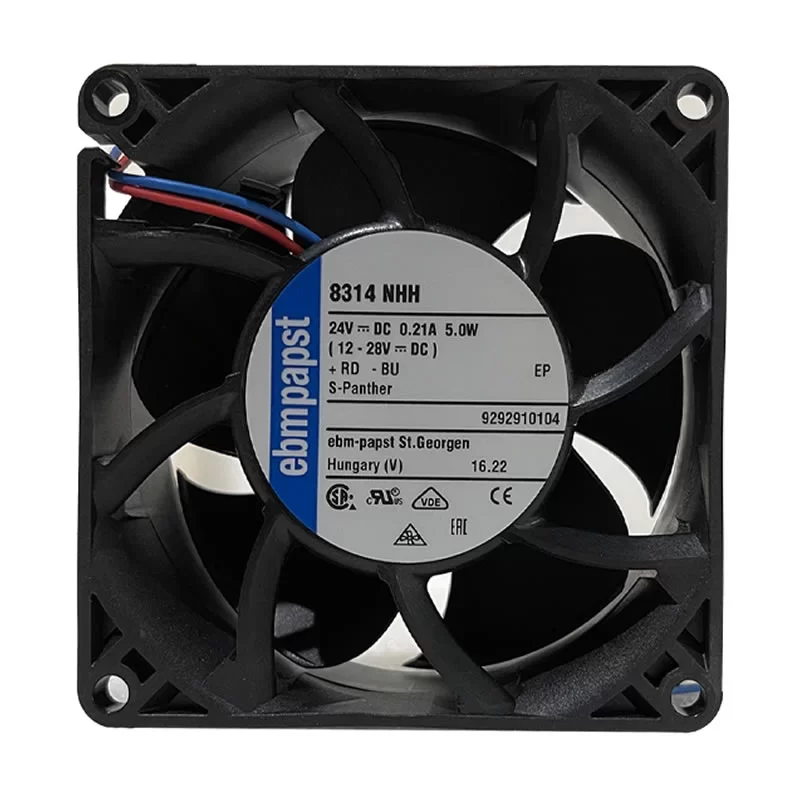

8314NHH ebmpapst 24V DC Axial Fan 80x80x32mm
8314NHH ebmpapst 24V DC Axial Fan 80x80x32mm

Additional information

Weight 0.5 kg
