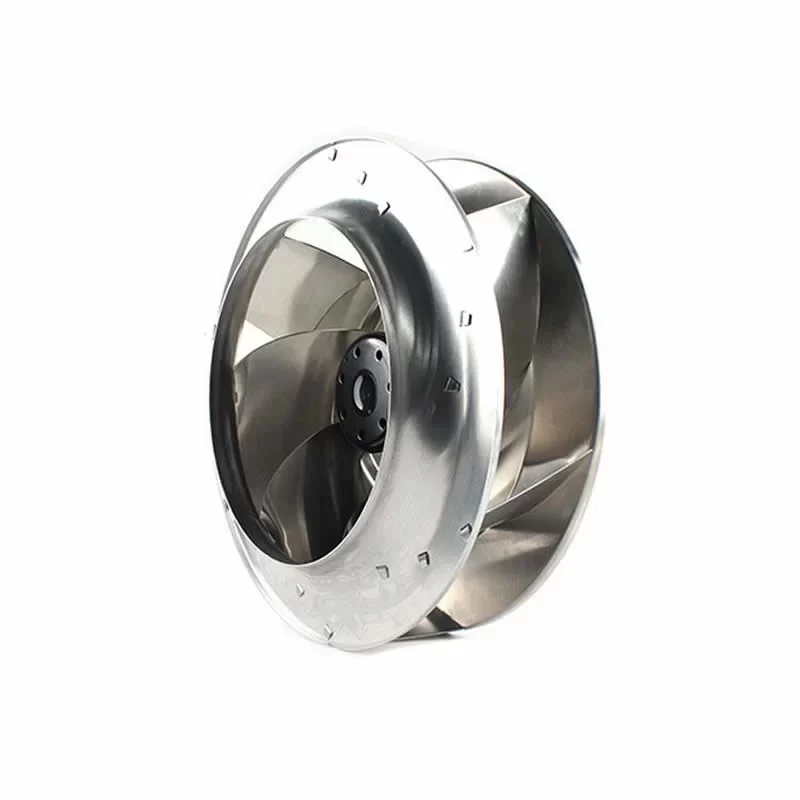

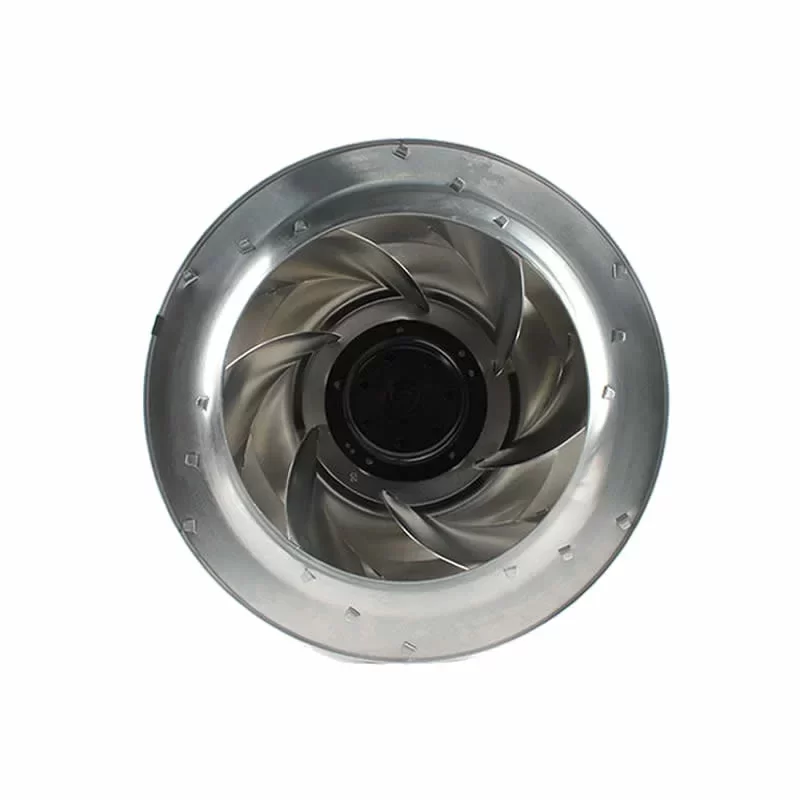

8317080005 VBS0400XSPGZ ebmpapst 230V EC Centrifugal Fan

Description

The ebmpapst 8317080005 VBS0400XSPGZ is a high-efficiency EC Centrifugal Fan with an impeller size of 400 mm and dimensions of 400 x 200 mm. Driven by the powerful M3G084-DF GreenTech EC motor, this backward-curved fan is a core member of the aerodynamically optimized RadiCal series. Operating on a single-phase nominal 230 VAC with a flexible input range of 200-277 VAC, it features a power input of 283 W (with a peak system power of 291 W) and an output of 226 W. At its rated speed of 1325 RPM, it delivers a high airflow of 2044.7 CFM (3474 m³/h) while maintaining a rated current of 1.27 A. Specifically designed for large-scale Fan Filter Units (FFU) and cleanroom ventilation, it utilizes a 7-blade glass-fiber reinforced composite impeller for superior static pressure efficiency. Equipped with integrated 0-10V control and Modbus-RTU capability, this model provides precise airflow management and long-term reliability for demanding industrial and pharmaceutical cooling applications.

8317080005 VBS0400XSPGZ Fan Parameters
Manufacturer: ebmpapst
Model Number: 8317080005 (VBS0400XSPGZ)
Motor Model: M3G084-DF
Type: EC Centrifugal Fan (Backward-curved, RadiCal)
Dimensions: 400 x 200 mm
Impeller Size: 400 mm
Nominal Voltage: 230 VAC (1~)
Operating Voltage Range: 200 to 277 VAC
Frequency: 50 / 60 Hz
Speed: 1325 RPM
Power Input/Output: 283 / 226 W
Max. System Power: 291 W
Rated Current: 1.27 A
Max. Current: 4.04 A
Max. Airflow: 2044.7 CFM (3474 m³/h)
Max. Static Pressure: 420 Pa (1.69 inAq)
Noise Level: 66 dB(A)
Termination: Variable cable leads
Bearing Type: Ball Bearing
Housing Material: Die-cast aluminum (Motor)
Impeller Material: PA plastic, glass-fiber reinforced
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Degree of Protection: IP20
Insulation Class: B
Operating Temp. Range: -25 °C to +60 °C
Control Input: 0-10 VDC / PWM / Modbus-RTU
Signal Output: Tacho signal
Safety Protections: Soft start, Locked-rotor protection, Over-temperature protection, Power limiter
Approvals: VDE, CE, UL, CSA, CCC, EAC

Application
This high-capacity EC centrifugal fan is primarily utilized in industrial-scale Fan Filter Units (FFU), central air handling units (AHU), and large cleanroom recirculation systems that require significant air volume against high-resistance HEPA/ULPA filters. It is an ideal cooling solution for high-density data centers, commercial HVAC systems, and pharmaceutical manufacturing plants where precise airflow control via networking protocols is required to maintain stringent environmental conditions.
