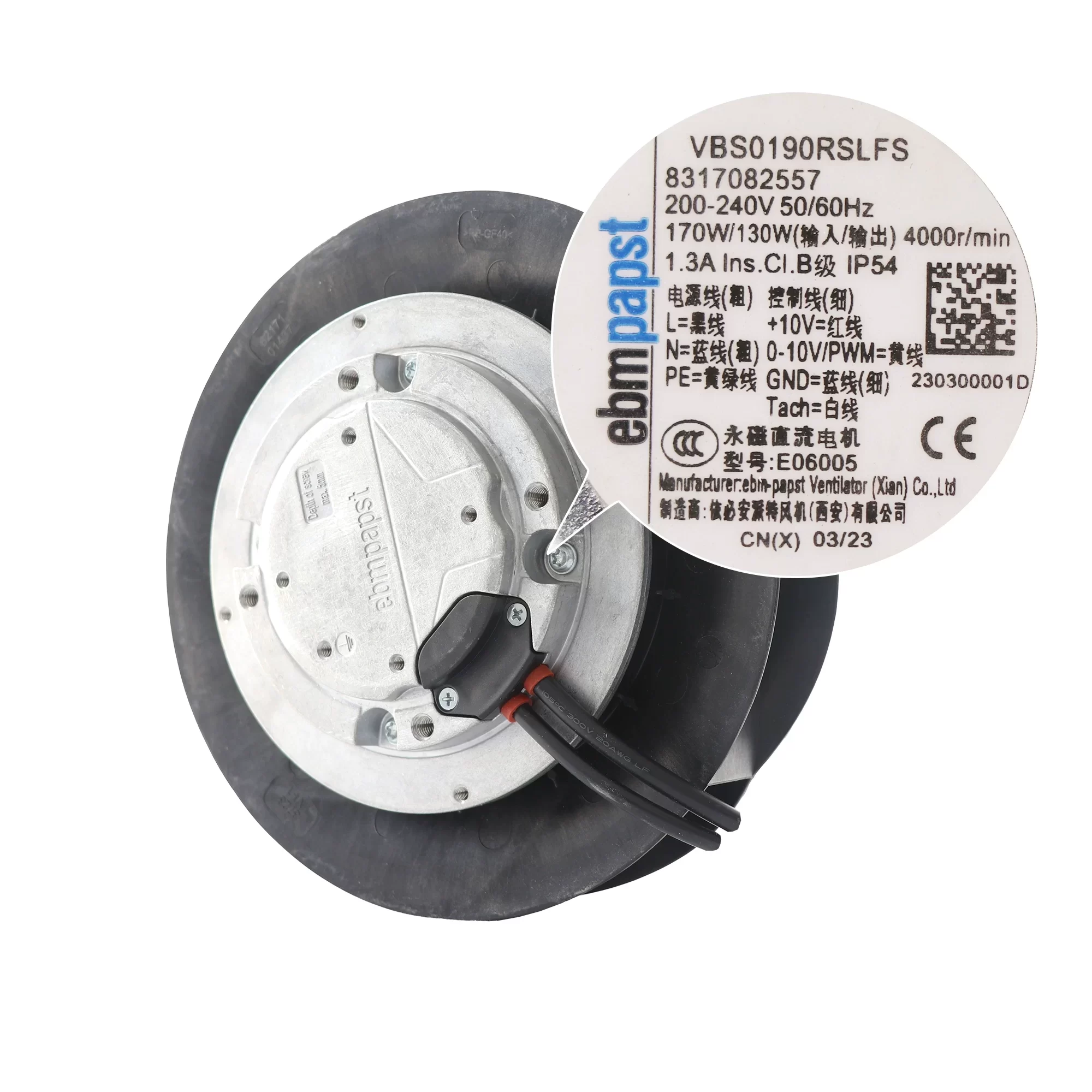

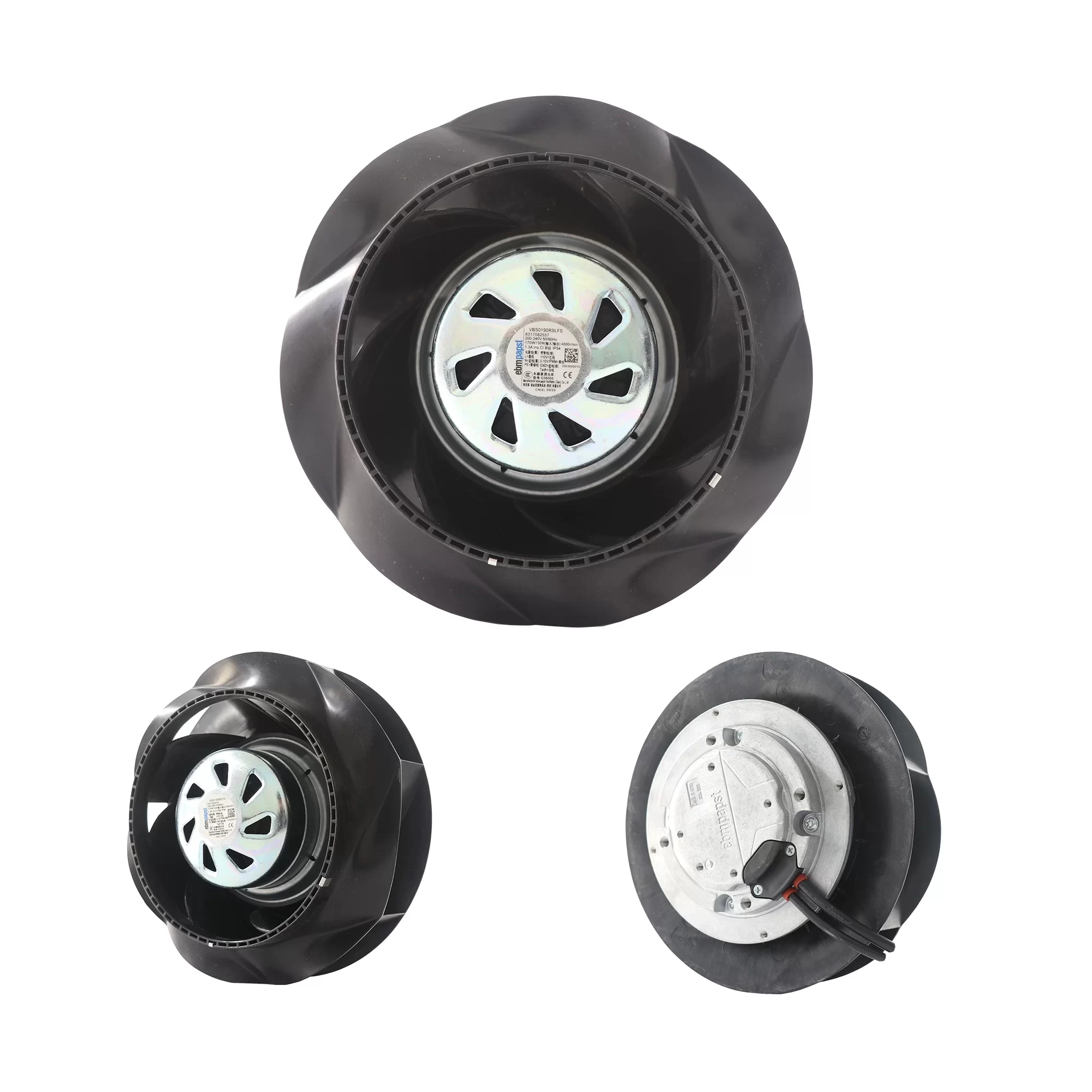

8317082557 VBS0190RSLFS ebmpapst AC Centrifugal Fan

Description

The ebmpapst 8317082557 VBS0190RSLFS is an AC Centrifugal Fan measuring 190mm in diameter. It operates on 200-240V AC at both 50Hz and 60Hz. The fan draws 1.3A of current and achieves a speed of 4000 RPM for both frequencies. At 50Hz, it consumes 170W of power, while at 60Hz, the power consumption is 125W. This fan has a durable ball bearing system and an IP54 ingress protection level. With a die-cast aluminum housing and a plastic impeller, it is a reliable solution for air handling applications.

8317082557 VBS0190RSLFS Fan Parameters
Model: 8317082557 VBS0190RSLFS
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Dimensions: 190 mm diameter
Rated Voltage: 200-240V AC
Frequency: 50/60 Hz
Current Draw: 1.3 A
Fan Speed: 4000 RPM
Bearing Type: Ball Bearing
Protection Level: IP54
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Plastic

50Hz Performance
Power Input: 170 W

60Hz Performance
Power Input: 125 W
Application: Air handling applications.
