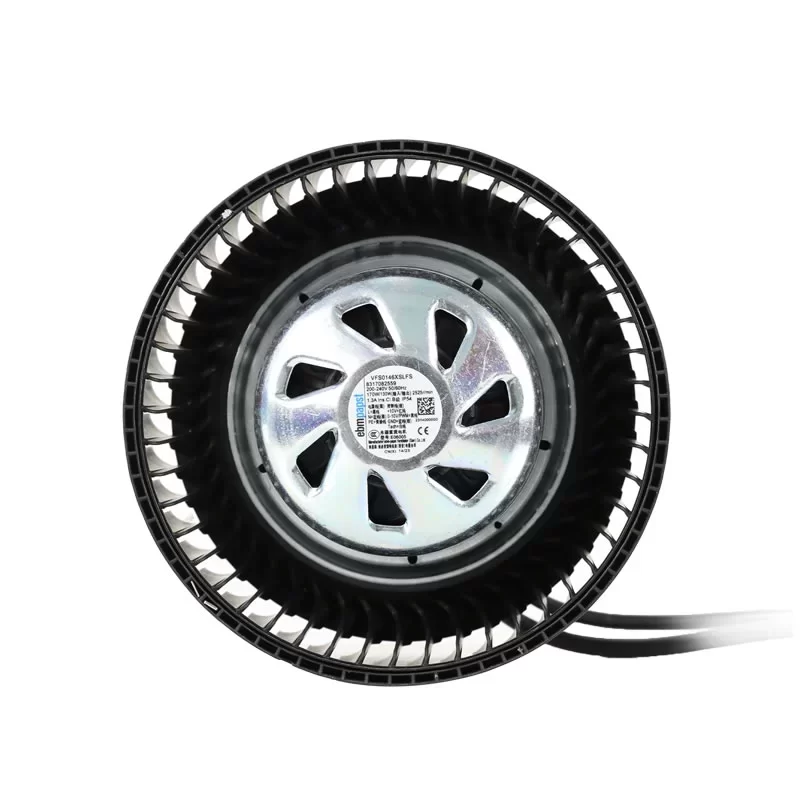

8317082559 VFS0146XSLFS ebmpapst 230V AC Centrifugal Fan

Description

The ebmpapst VFS0146XSLFS (Part No. 8317082559) is a high-performance 200-240 V single-phase AC dual-inlet centrifugal fan module featuring a 146 mm forward-curved galvanized steel impeller housed in a precision-engineered scroll casing. Driven by the high-efficiency E06005 external rotor motor, this unit is engineered for high-velocity air displacement, delivering a powerful 2525 RPM with a rated input power of 170 W and an output power of 130 W. The module’s design, characterized by its dual-inlet architecture and IP54 protection, ensures maximum air displacement and reliable operation in demanding industrial environments. Equipped with premium ball bearings and an integrated thermal overload protector, the VFS0146XSLFS provides an industrial-grade thermal management solution for air handling units and electronic cabinet cooling across an ambient temperature range of -25 °C to 45 °C.

VFS0146XSLFS Fan Parameters
Model Number: VFS0146XSLFS
Part Number: 8317082559
Manufacturer: ebmpapst
Motor Model: E06005
Series: AC Centrifugal Series
Type: AC Centrifugal Fan (Dual-Inlet with Scroll Housing)
Impeller Size: 146 mm
Dimensions: 225 x 241 x 176 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Weight: 4.1 kg
Power Consumption (Input): 170 W
Power Output: 130 W
Nominal Current: 1.3 A
Speed: 2525 RPM
Required Capacitor: 5 µF / 450 VDB
Motor Design: Single-phase External Rotor Motor (PSC)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Touch Current: < 0.75 mA
Electrical Hookup: Lead wires
Number of Blades: 42 (Forward-curved)
Direction of Rotation: Counter-clockwise, viewed toward rotor
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Rotor Surface: Painted black
Installation Position: Any
Condensate Discharge Holes: None
Degree of Protection: IP54
Operating Temperature: -25 – +45 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: CCC, EAC, VDE

Application
The ebmpapst VFS0146XSLFS centrifugal fan is primarily utilized in industrial air handling units (AHU), commercial kitchen ventilation, laboratory fume hoods, electronic cabinet cooling, and cleanroom air filtration systems.
