Description

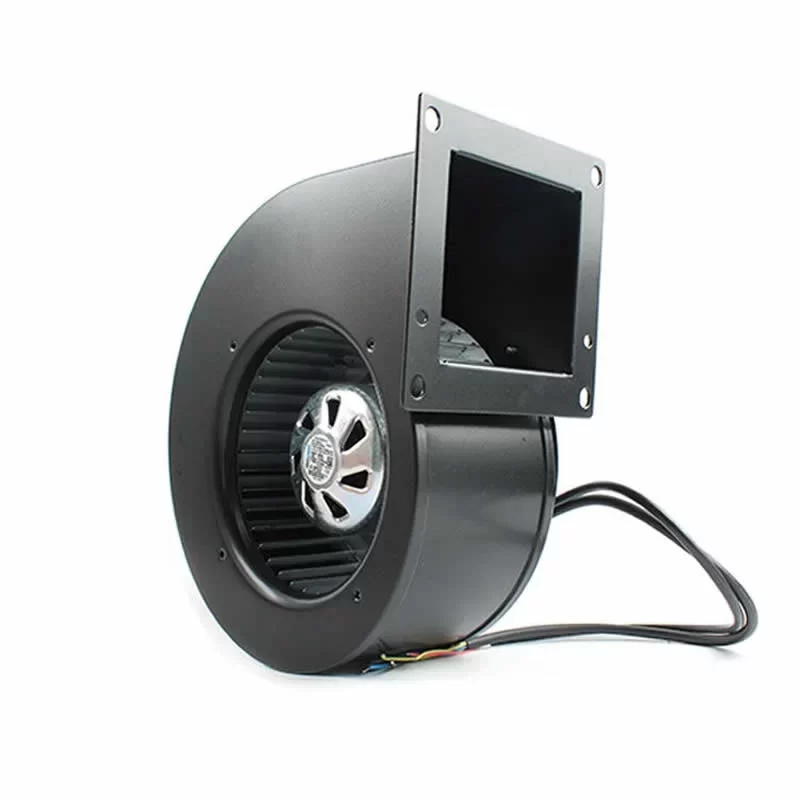

The ebmpapst 8317084812 VHS0160XSLFZ is a heavy-duty 230 VAC EC Centrifugal Fan with a 160 mm RadiCal impeller, engineered for high-performance condensing technology and industrial air filtration. Driven by a high-torque E06005 permanent magnet DC motor with integrated EC electronics, this unit operates within a 200 – 240 VAC range, delivering a Max. Power Consumption (Input) of 170 W with an output of 124 W at a rated speed of 2327 RPM. Featuring a precision-balanced 2.8 kg assembly and a high-strength impeller, it achieves a Max. Air Flow of 526.0 m³/h (309.6 CFM) and a Max. Static Pressure of 61.18 mmH₂O (600.0 Pa / 2.41 inAq). Constructed with a heavy-duty motor housing, this German-engineered unit provides IP54 protection and supports stepless speed control for mission-critical HVAC and heating systems requiring maximum structural integrity and energy efficiency at the end.
8317084812 Fan Parameters

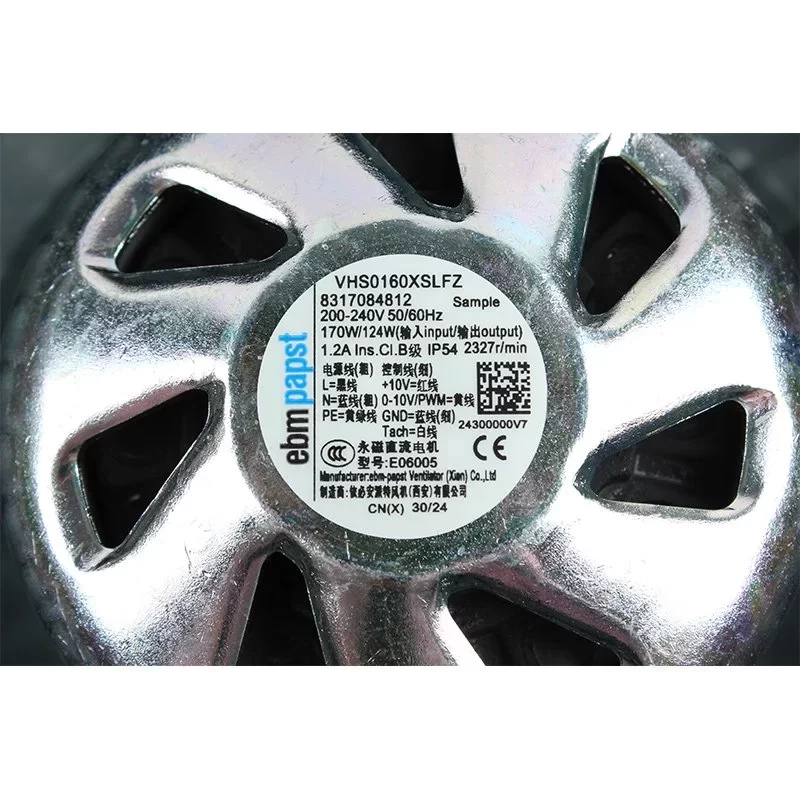

Model Number: VHS0160XSLFZ
Part Number: 8317084812
Manufacturer: ebmpapst
Series: RadiCal EC Series
Motor Model: E06005 (Permanent Magnet DC)
Impeller Size: 160 mm
Dimensions: 160 x 160 x 95 mm
Weight: 2.8 kg
Bearing Type: Dual ball bearing
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Frequency: 50/60 Hz
Rated Current: 1.2 A
Max. Power Consumption (P1 Input): 170 W
Rated Power Output (P2): 124 W
Rated Speed: 2327 RPM
Max. Air Flow: 309.6 CFM (526.0 m³/h / 8.77 m³/min)
Max. Static Pressure: 61.18 mmH₂O (600.0 Pa / 2.41 inAq)
Working Air Flow: 526.0 m³/h
Static Pressure Increase: 600.0 Pa
Efficiency Grade: ErP 2015 compliant
Control Input: 0-10 VDC / PWM / Tach output
Motor Type: EC motor (GreenTech)
Motor Protection: Integrated electronic protection
Insulation Class: Class B
Degree of Protection: IP54
Electrical Hookup: Lead wires
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Impeller Material: Glass-fiber reinforced PA plastic
Frame Material: Die-cast aluminum
Sound Pressure Level: 64.0 dB(A)
Service Life (L10): 40,000 h (at 40 °C)
Operating Temperature: -25 – +60 °C
Standard Compliance: VDE; CE; UL; RoHS
Application
The ebmpapst VHS0160XSLFZ centrifugal fan is the primary cooling component for high-capacity condensing gas boilers, industrial air filtration units, and medical diagnostic hardware requiring high-torque air delivery and precision EC control in 230 VAC environments.
