8412NMLE ebmpapst 12V DC Axial Fan

Description

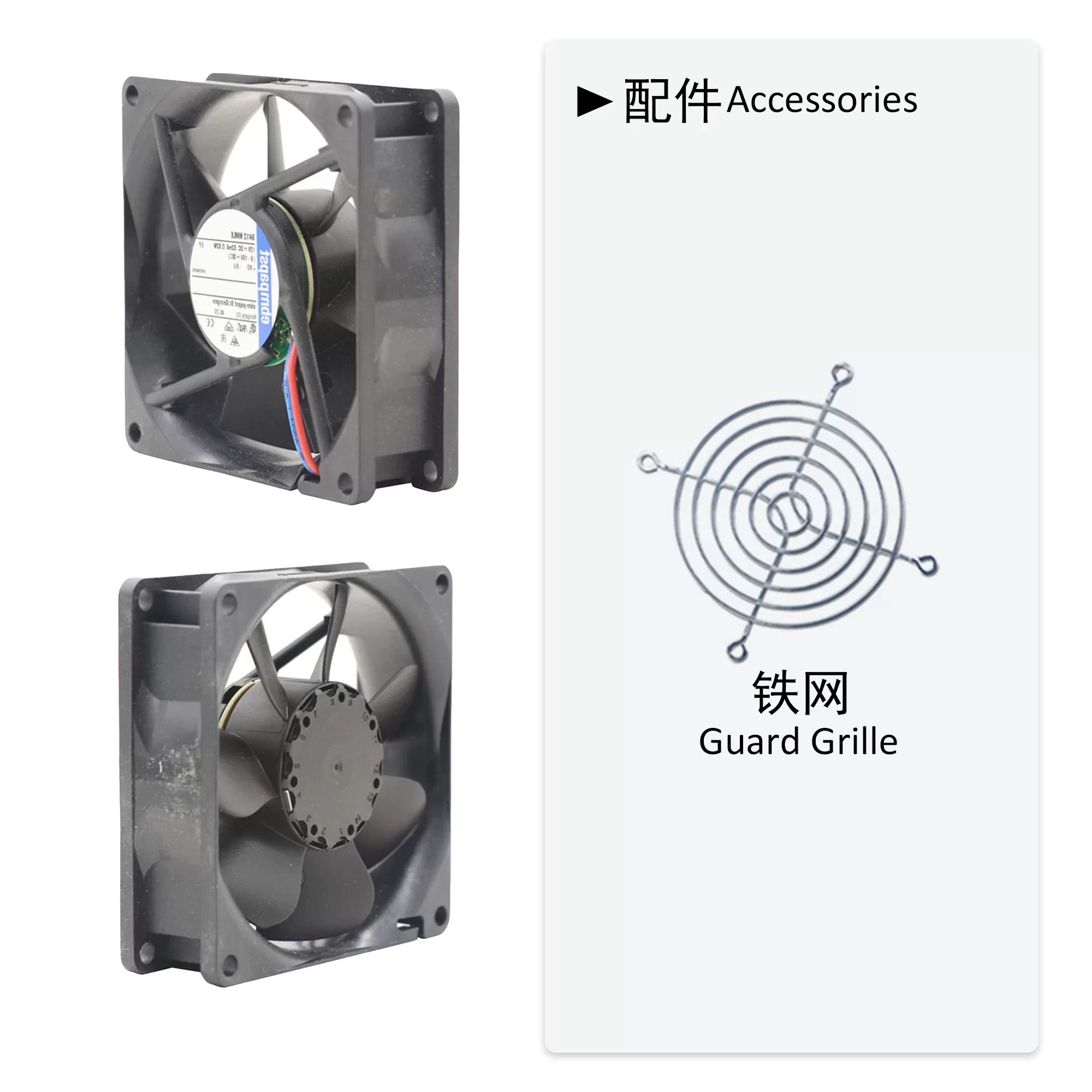

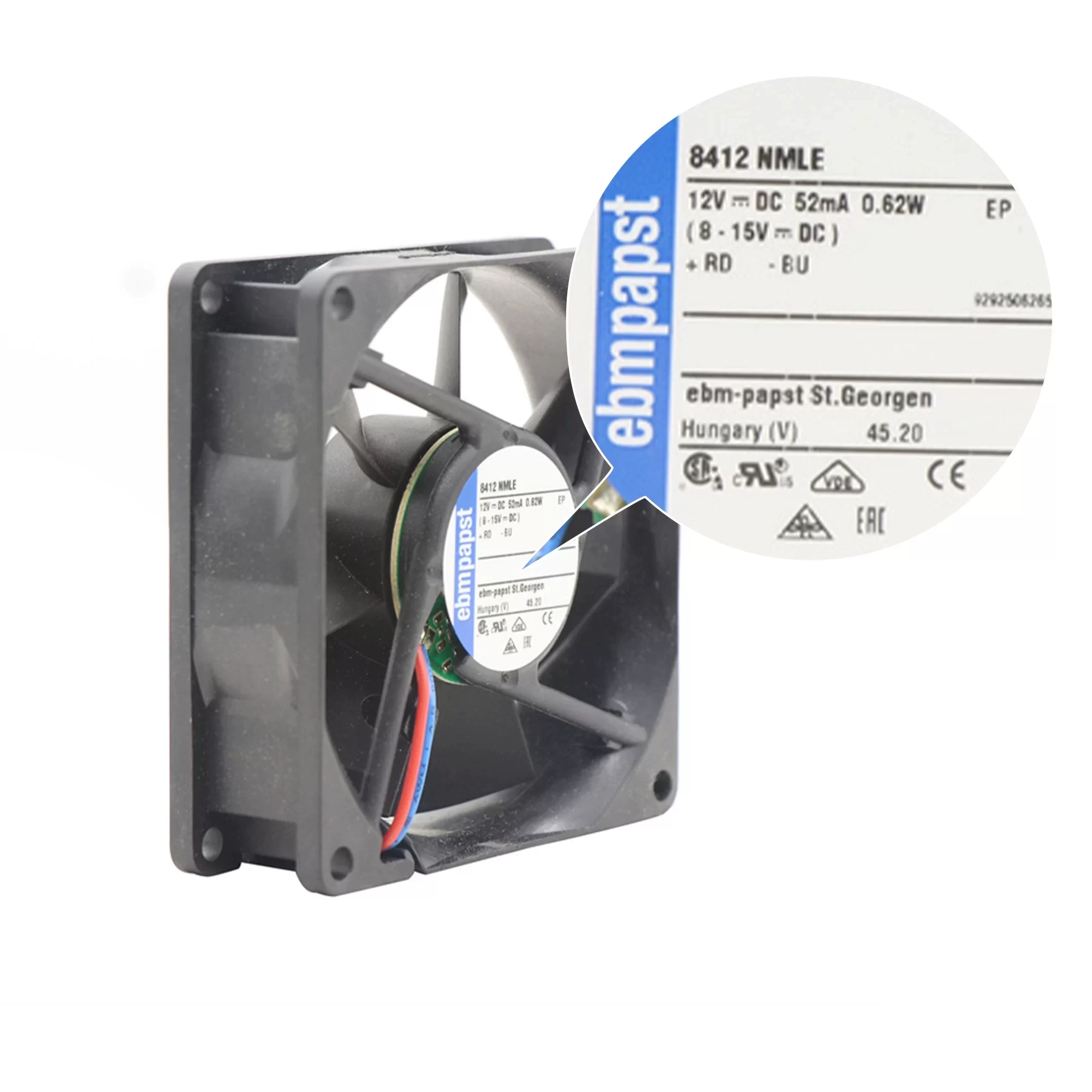

The ebmpapst 8412NMLE is a compact 12VDC Axial Fan with dimensions of 80x80x25mm. Operating from 8 to 15VDC, it has a rated current of 0.052A, power consumption of 0.624W, and a starting current of 0.62A. It achieves 1700RPM, providing 42m³/h (24.7CFM) airflow and 14Pa static pressure, with a low noise level of 17dB(A). This fan features a Sintec sleeve bearing (40000hL10 at 40°C), glass-fiber reinforced PBT plastic housing and PA plastic impeller, and 2-wire leads (AWG 24, TR 64). It includes polarity and locked-rotor protection, operates between -20 to 70°C, and holds VDE, CSA, UL, CE approvals.

8412NMLE Fan Parameters
Model: 8412NMLE
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 8 .. 15 V DC
Rated Current: 0.052 A
Power Consumption: 0.624 W
Starting Current: 0.62 A
Speed: 1700 RPM
Airflow: 42 m³/h (24.7 CFM)
Static Pressure: 14 Pa
Noise Level: 17 dB(A)
Bearing Type: Sintec Sleeve Bearing
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 40 °C: 40000 h
Termination: 2-wire leads (AWG 24, TR 64, stripped and tin-plated)
Motor Protection: Polarity Protection, Locked-Rotor Protection
Approval: VDE, CSA, UL, CE
Application: Suitable for general cooling in electronic devices, small appliances, and other applications requiring a compact and quiet 80mm DC fan.
