8418N ebmpapst 24V DC Axial Fan

Description

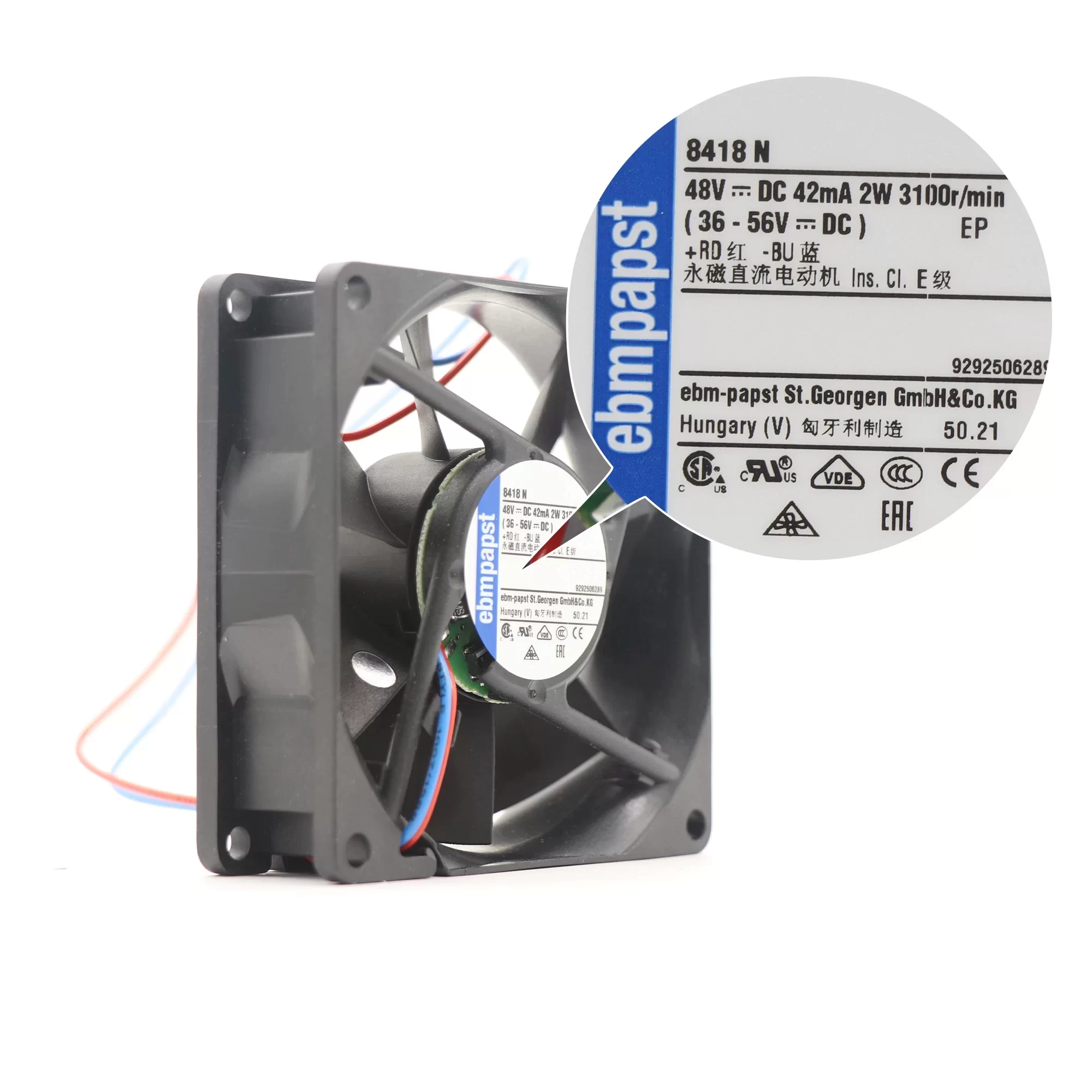

The ebmpapst 8418N is a compact 48V DC Axial Fan with dimensions of 80x80x25mm. It operates within a voltage range of 36 to 56V DC. The fan has a power consumption of 2.0W, a current draw of 0.06A, and achieves a speed of 3100RPM, providing an airflow of 69m³/h, a sound power level of 4.7B, and a sound pressure level of 32dB(A). It features a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. Equipped with ball bearings, it has a service life of 70000h at 40°C and 35000h at maximum temperature. It operates efficiently within an ambient temperature range of -20 to 70°C. The fan includes motor protection against reverse polarity and blocked rotor, as well as locked-rotor and overload protection. It is approved by VDE, CSA, UL, and CE.

8418N Fan Parameters
Model: 8418N
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Nominal Voltage: 48 V DC
Nominal Voltage Range: 36 .. 56 V DC
Speed: 3100 RPM
Power Consumption: 2.0 W
Current Draw: 0.06 A
Airflow: 69 m³/h
Sound Power Level: 4.7 B
Sound Pressure Level: 32 dB(A)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Bearing Type: Ball bearing
Service Life L10 at 40 °C: 70000 h
Service Life L10 at Maximum Temperature: 35000 h
Cable: Leads AWG 24, TR 64, stripped and tin-plated
Motor Protection: Protection against reverse polarity and blocked rotor
Locked-Rotor Protection: Locked-rotor and overload protection
Approval: VDE, CSA, UL, CE
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Weight: 0.095 kg
Application: Suitable for general electronics cooling, small enclosure ventilation, and other applications requiring compact and efficient DC airflow.
