8500N ebmpapst 115V AC Axial Compact Fan

Description

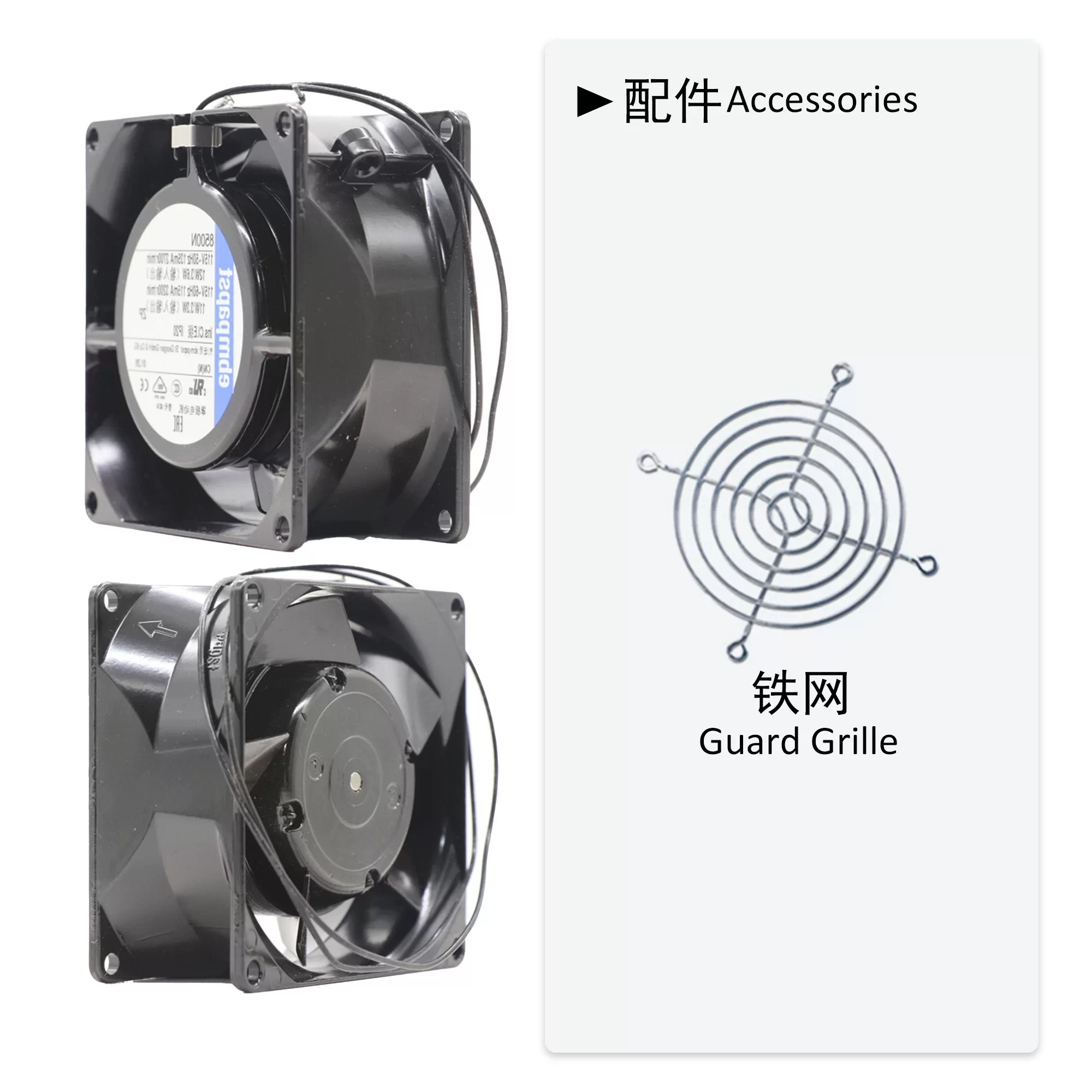

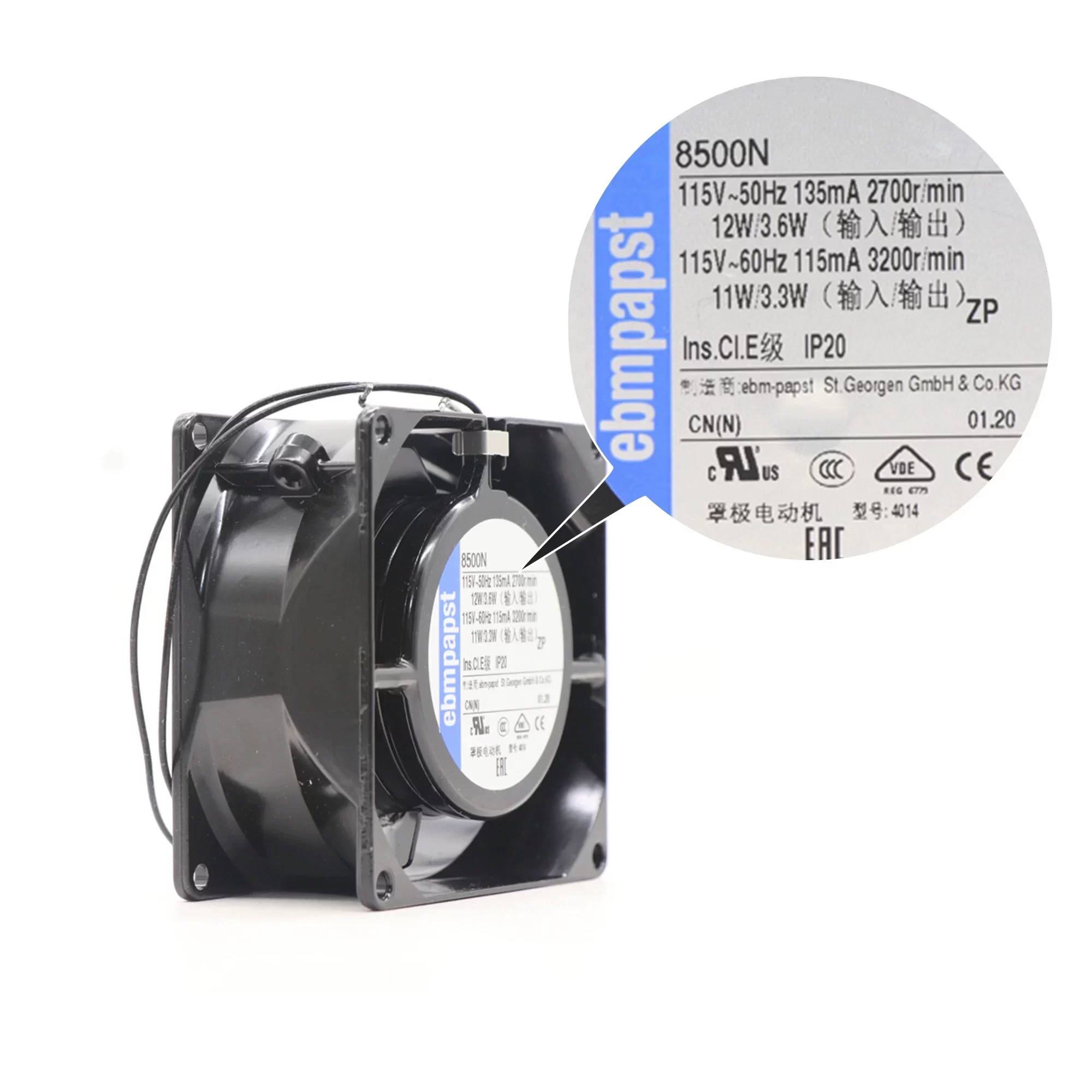

The ebmpapst 8500N is a compact 115V AC Axial Compact Fan with dimensions of 80x80x38mm. It operates at a frequency of 60Hz, achieving a speed of 3200RPM. The fan’s power consumption is 11.0W, delivering an airflow of 61m³/h, a sound power level of 4.8B, and a sound pressure level of 34dB(A). It features a sheet steel, painted black impeller and a die-cast aluminum housing. Equipped with Sintec sleeve bearings, it boasts a service life of 55000h at 40°C and 25000h at maximum temperature. It is designed to operate efficiently within an ambient temperature range of -10 to 75°C. The fan includes motor protection against overload by impedance protection and is approved by VDE, CSA, UL, and CE.

8500N Fan Parameters
Model: 8500N
Manufacturer: ebmpapst
Type: AC Axial Compact Fan
Dimensions: 80 x 80 x 38 mm
Phase: 1~
Nominal Voltage: 115 V AC
Frequency: 60 Hz
Speed: 3200 RPM
Power Consumption: 11.0 W
Airflow: 61 m³/h
Sound Power Level: 4.8 B
Sound Pressure Level: 34 dB(A)
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum
Part No.: 9274014207
Airflow Direction: Exhaust over struts
Direction of Rotation: Clockwise, viewed toward rotor
Bearing Type: Sintec sleeve bearing
Service Life L10 at 40 °C: 55000 h
Service Life L10 at Maximum Temperature: 25000 h
Termination: 2 leads AWG 18, TR 64
Grounding Lug: M4 x 8
Motor Protection: Protected from overload by impedance protection
Approval: VDE, CSA, UL, CE
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 75 °C
Weight: 0.490 kg
Application: Suitable for general electronics cooling, small enclosure ventilation, and other applications requiring compact and efficient AC airflow.
