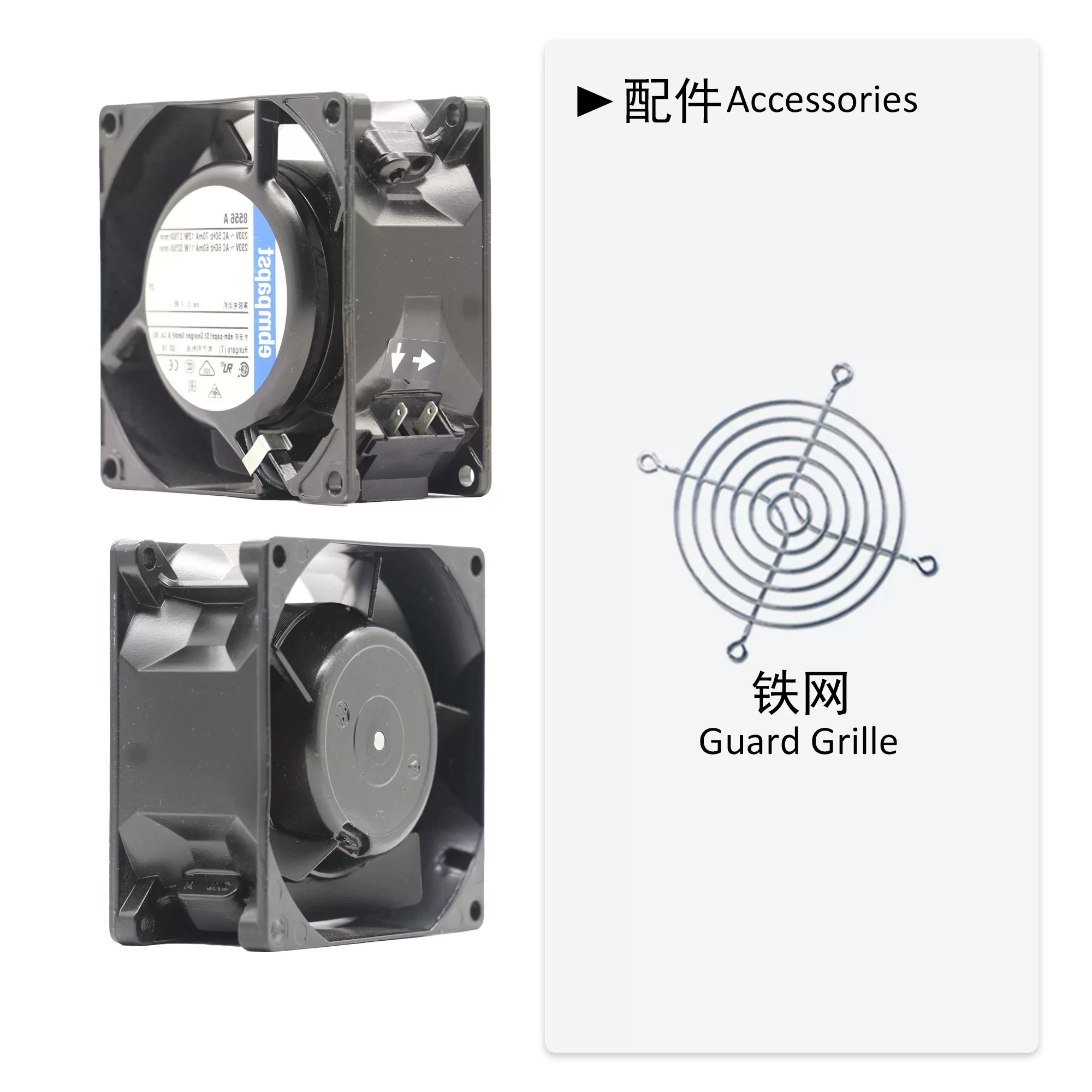

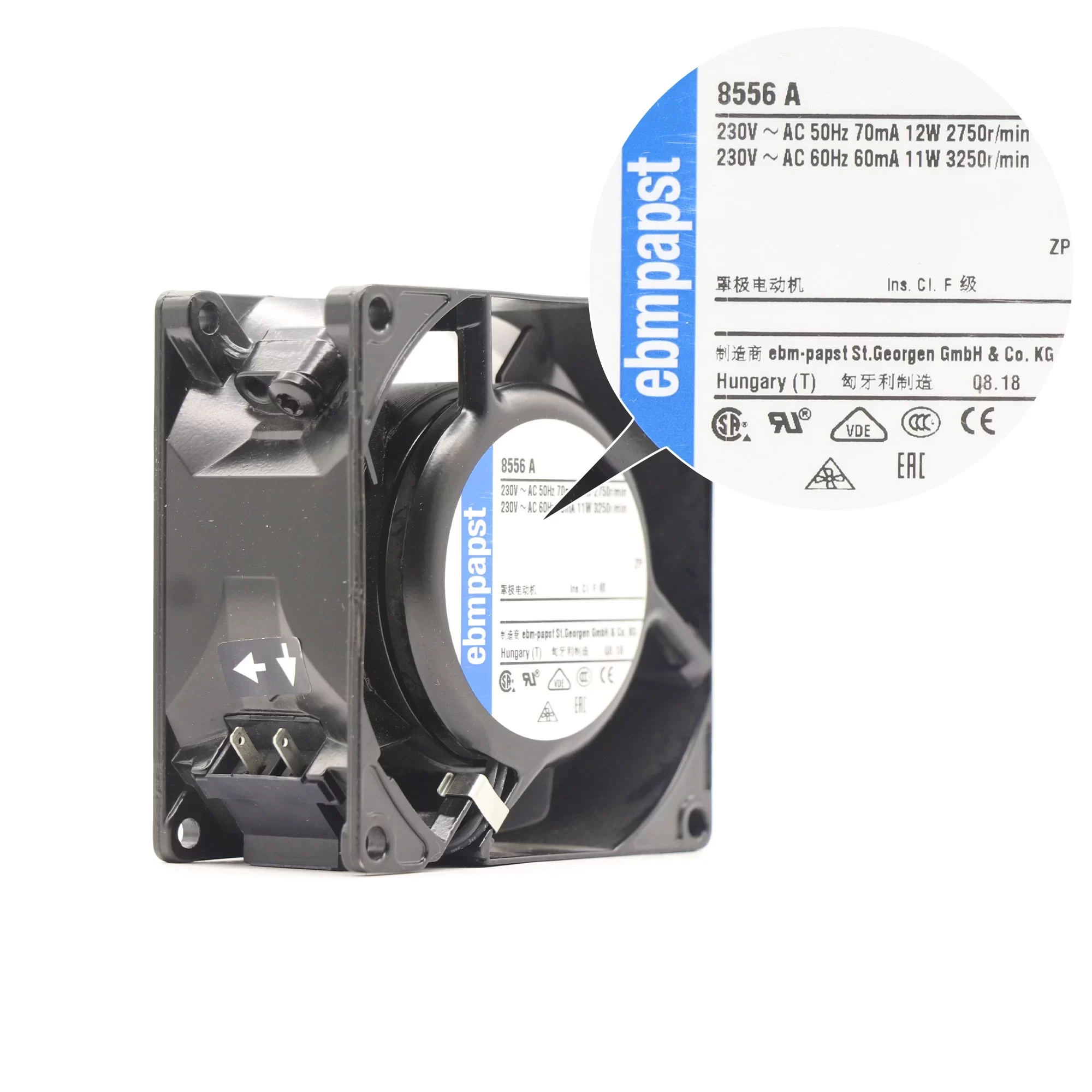

8556A ebmpapst 230V AC Axial Fan

Description

The ebmpapst 8556A is a 230VAC AC axial fan with dimensions of 80x80x38mm. Operating at both 50Hz and 60Hz frequencies, it draws 70mA of current and consumes 12W of power at 50Hz, and 60mA of current and 11W of power at 60Hz. This fan operates at speeds of 2750RPM at 50Hz and 3250RPM at 60Hz. Featuring durable ball bearings and 2 terminals, it is constructed with a metal housing and a metal impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 52,500hours at 40°C.

8556A Fan Parameters
Manufacturer: ebmpapst
Model: 8556A
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 70 mA (50Hz), 60 mA (60Hz)
Power Consumption: 12 W (50Hz), 11 W (60Hz)
Speed: 2750 RPM (50Hz), 3250 RPM (60Hz)
Bearing Type: Ball Bearing
Termination: 2 Terminals
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 52,500 Hours (at 40°C)
Housing Material: Metal
Impeller Material: Metal
IP Rating: IP20
Weight: 0.49 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst AC axial fan is suitable for cooling purposes in various electronic equipment, control cabinets, and industrial devices, providing reliable airflow with updated electrical characteristics.
