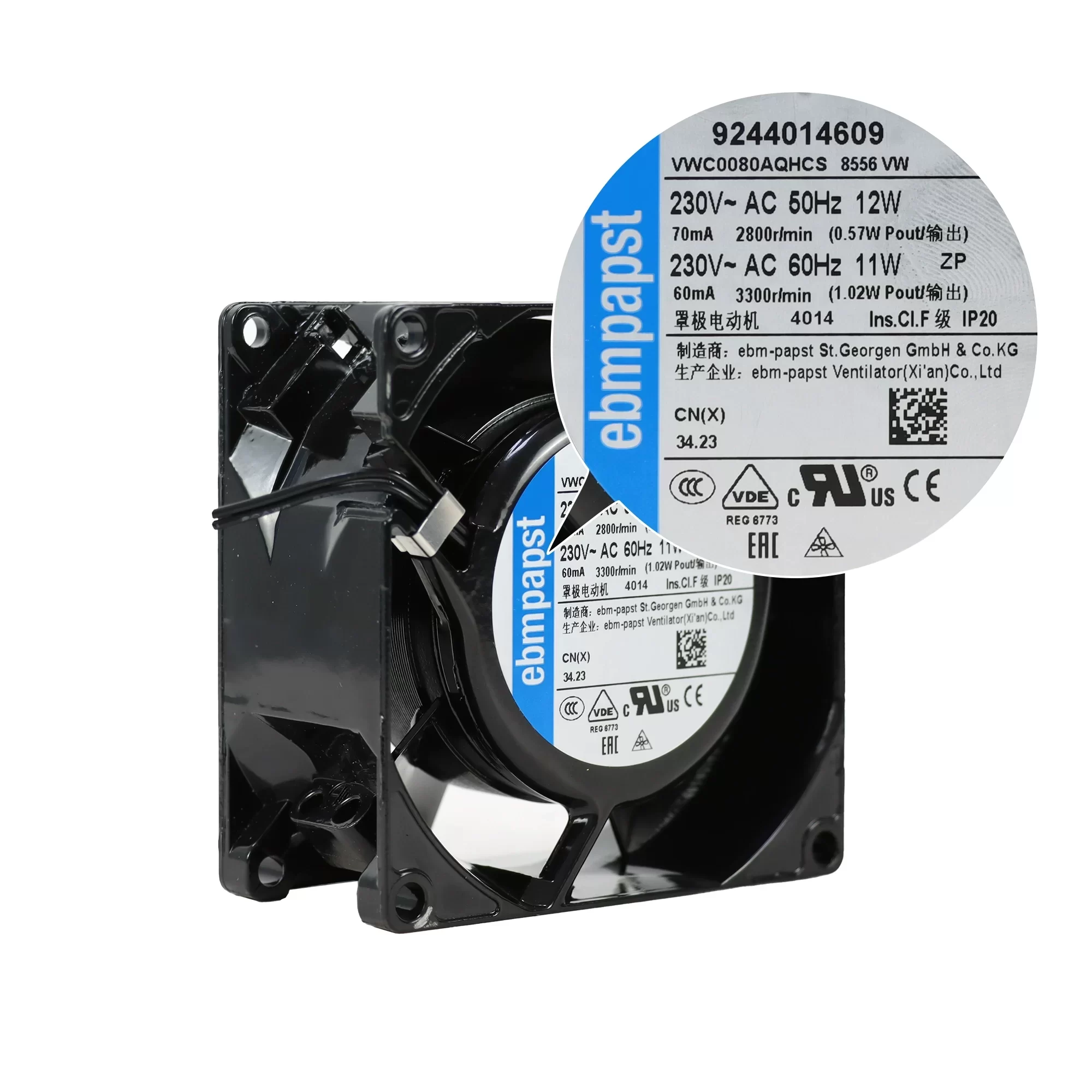

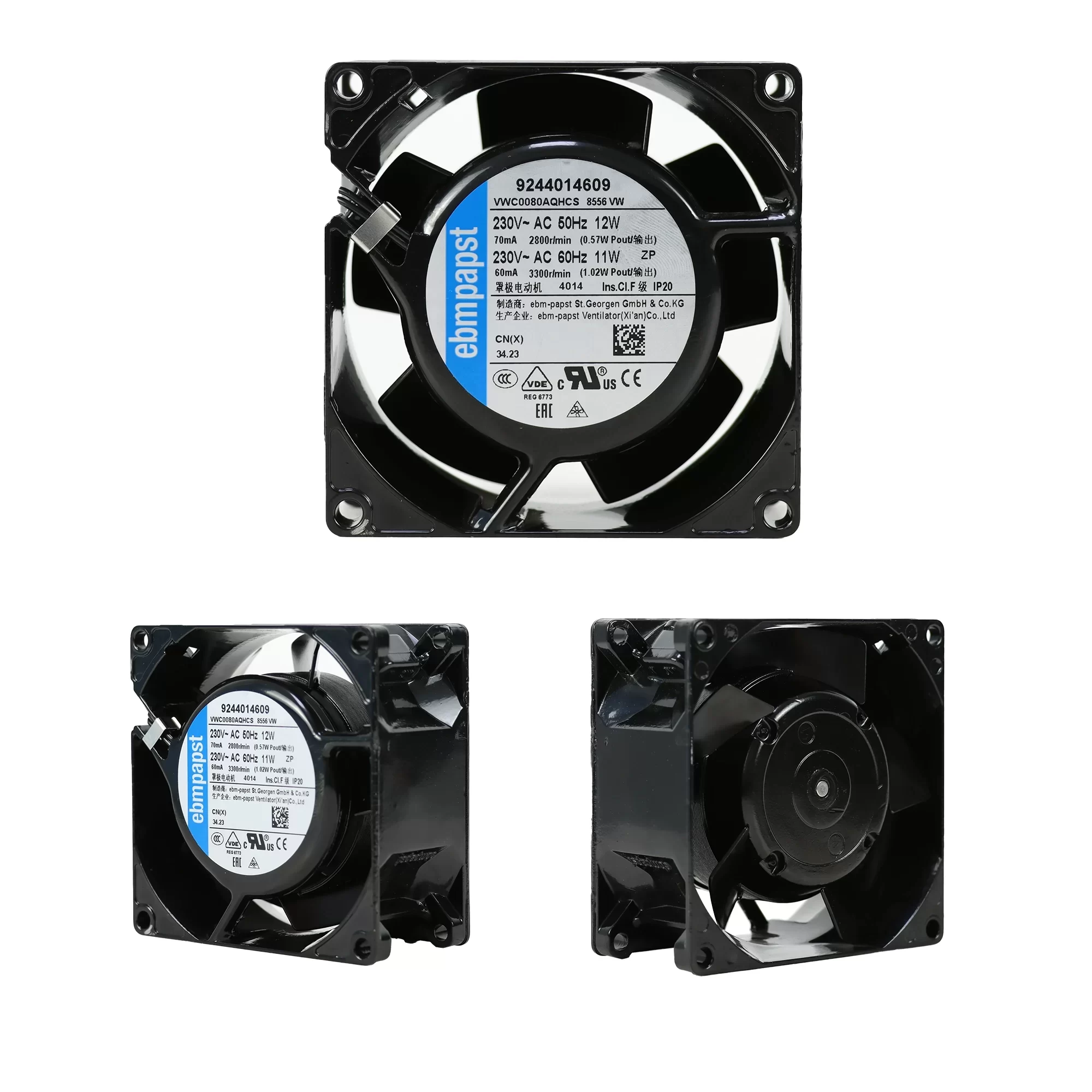

8556VW ebmpapst 230V AC Axial Fan

Description

The ebmpapst 8556VW is an AC Axial Fan measuring 80x80x32mm. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.07A of current, consumes 12W of power, and achieves a speed of 2800 RPM. When running at 60Hz, the current is 0.06A, power is 11W, and the speed reaches 3300 RPM. The fan features a durable ball bearing system and is built with a fiberglass-reinforced plastic housing and impeller.

8556VW Fan Parameters
Model: 8556VW
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 80 x 80 x 32 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Bearing Type: Ball Bearing
Housing Material: Fiberglass-reinforced plastic
Impeller Material: Fiberglass-reinforced plastic

50Hz Performance
Current Draw: 0.07 A
Power Input: 12 W
Fan Speed: 2800 RPM

60Hz Performance
Current Draw: 0.06 A
Power Input: 11 W
Fan Speed: 3300 RPM
Application: Cooling in industrial and electronic equipment.
